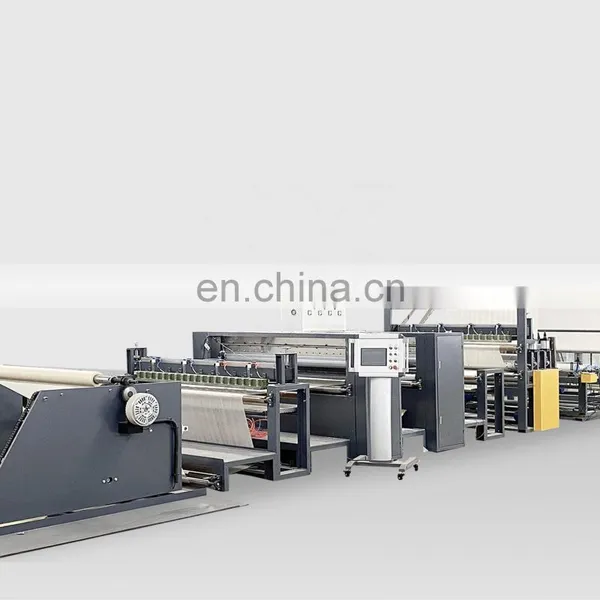

Hot melt spraying laminating machine
General Principle: Spray hot melt adhesive in fibrous form onto the base material and scatter carbon materials onto the hot melt adhesive surface to realize attachment and laminating another layer of base material using hot melt adhesive. Compared with traditional line of pre-stirring carbon and powder, this spray-scatter new technology does not need high-power drying oven.The amount of hot melt adhesive and powder can be set as per user needs.
Application: Automotive interiors, filter consumables, home furnishing, building decoration materials and other industries.
Main Features:
1) The temperature is controlled by intelligent digital display temperature control instrument. The temperature difference is less than +-2 celcius degree. The operation panel design is humanized and easy to operate.
2) Large internal space, easy heat dissipation and good heat insulation effect.
3) Frame-type fuselage structure and openable control cabinet door design make installation and maintenance simple and quick.
4) Well-known brand electrical parts will be used.
5) High-precision gear pump, stable glue volume pressure output, stable glue volume control, improve production efficiency.
6) The fine filtering device removes impurities, keeping the glue flowing smoothly and prevents the nozzle from clogging.
7) High-precision return valve is equipped to keep the glue output stable.
8) The drive adopts frequency conversion synchronization control system to ensure that the machine speed is synchronized with the powder scattering, so that the powder amount is well and stably controlled.
| Model | KT-2000A |
| Maximum Material Width | 1200, 1400, 1600, 1800, customizable |
| Machine Roller Width | 1400, 1600. 1800, 2000, customizable |
| Gluing Amount | 5-10gsm, customizable |
| Machine Speed | 5-25m/min |
| Power | 30-70kw |
| Nearby Power Supply | 220v, 380v, customizable |
| Weight | 7000-20500kgs |
| Dimension | 11800x2900x3600mm |
1. Are you a trading company or a manufacturer?
We are a manufacturer with more than 30 years of manufacturing and R & D experience.
2. Where is your factory?
We are located in Yancheng, Jiangsu Province.
3. Do you have a personal R & D department?
Yes, we have established Kuntai R & D centers in Europe and the famous University of Padova in Italy. We always believe in technology- and market-oriented research. Every year, we develop a series of solutions to practical field application problems and develop new machines for our customers.
If you have any new ideas for our machines, please feel free to contact us! We will definitely turn your ideas into designs. Our goal is to solve customers 'problems in every field, achieve better material finishing / processing effects, and become customers' think tanks.
4. How do I trust your quality?
We have a strict and scientific quality control management system, and have passed the rigorous CE and ISO international certifications to maximize the quality of our products.
We have professional quality control personnel. For each step of our machine production, a set of quality control teams will be responsible for checking. The following steps can be performed before the item passes all inspections.
At the end of the machine assembly, a series of tests will be performed. We will not deliver until the machine passes all tests.
We provide a one-year warranty for our machines. Generally, our customers have used our machines for at least 5 years, 8 years or even 10 years.Throughout the life of our machines, spare parts will be replaced at cost.
5. How to operate the machine?
We have never used such a machine before. We just want to expand our business and start a new business.do not worry! When buying our first machine, almost the majority of overseas customers were in the same situation. We have skilled and experienced follow-up service staff who have developed a complete solution to meet the needs of customers like you. In addition, we have a team of professional engineers with rich experience in installation and commissioning, which can perform installation, testing and operation guidance of overseas machines.
