Simple Swing Away Heat Press Machine

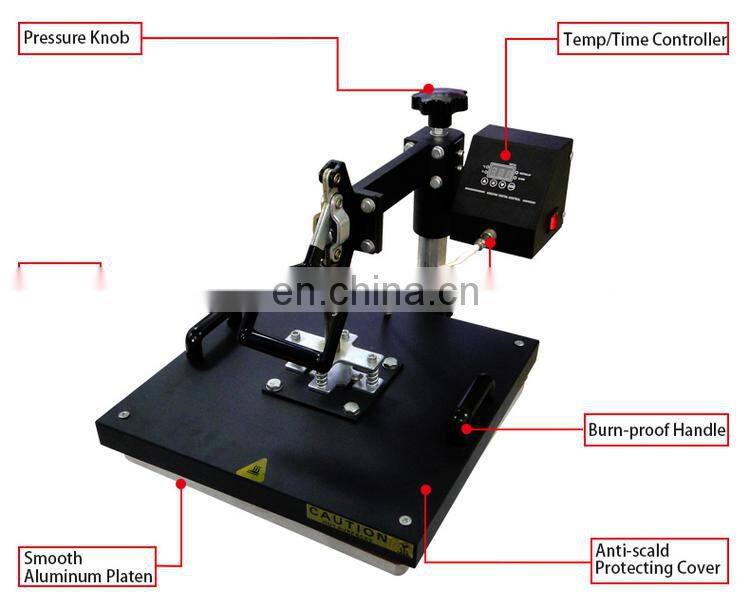

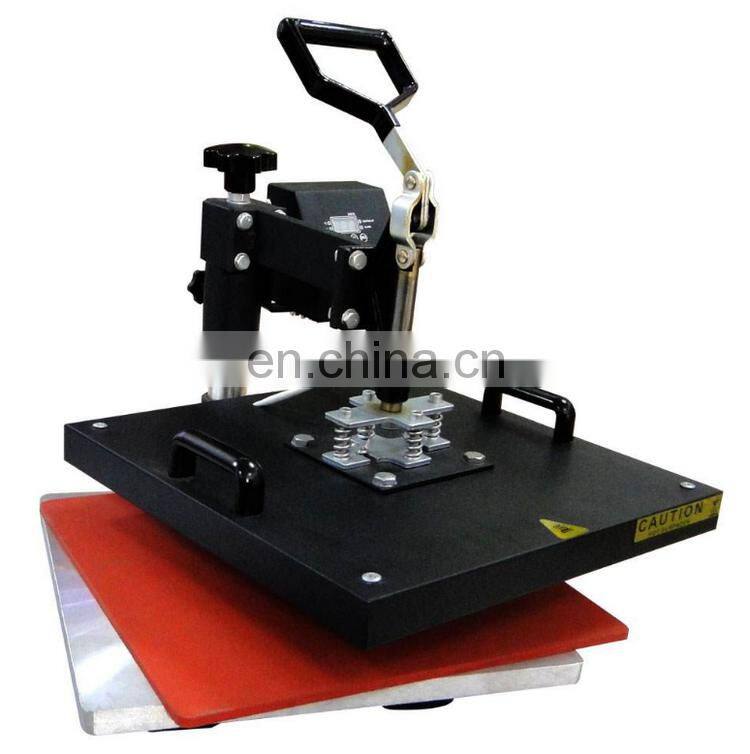

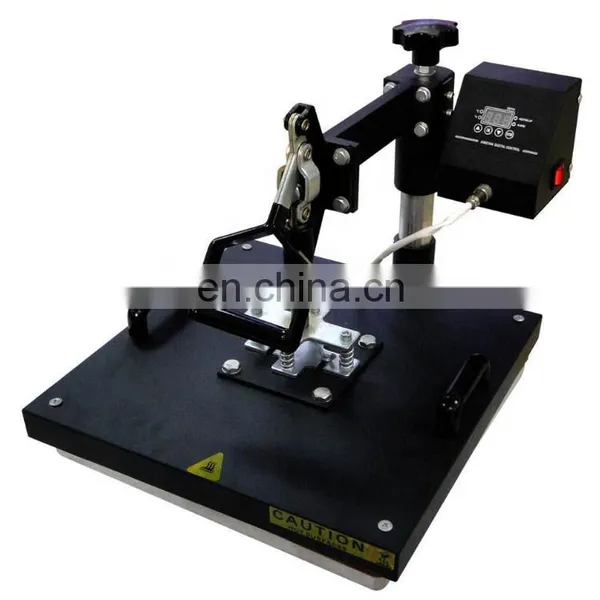

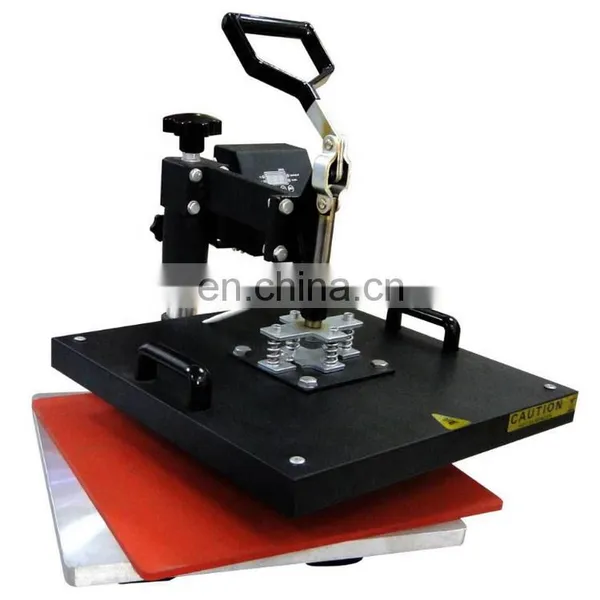

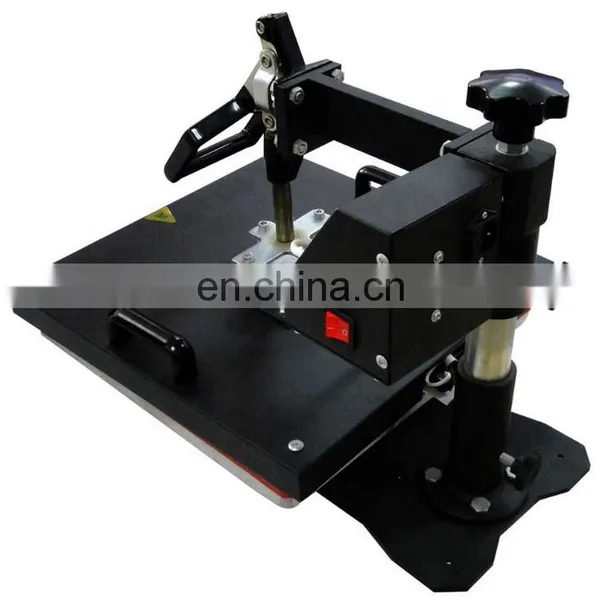

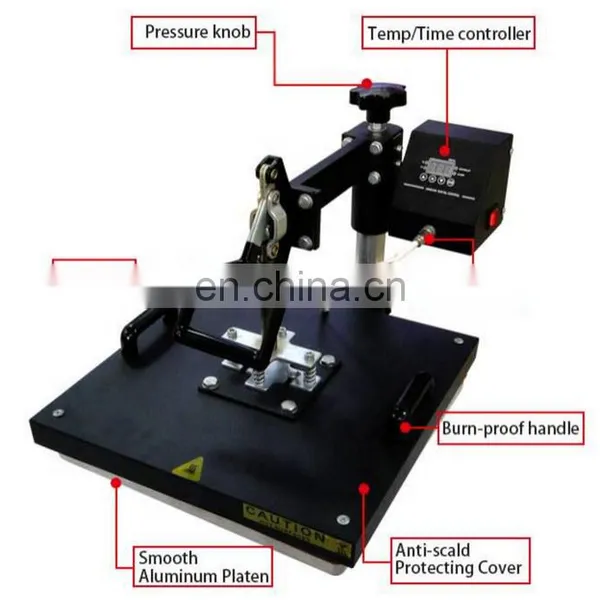

Simple Swing Away heat press machine

( 29*38cm/38*38cm optional )

A heat press machine is the machine that presses a transfer onto an imprintable substrate . Using high temperatures and pressures for a certain amount of time, the transfer is permanently embedded into the product.Heat presses are recommended for professional and satisfying results simply because standard laminating devices and home hand irons can not get even near the temperatures required for a reliable transfer.

Technical Parameters:

Read before operating :

1. Be sure to operate with a safe ground wire! Check the voltage before using this machine.

2. After finishing your work, please turn the machine off.

3. Don’t touch the heater when the machine is on or when its temperature is still high after turning it off.

4. Keep out of the reach of children.

Please Note:

1. Be careful of the hot heating surface

2. Please make sure the heating temperature and transfer time are correct

3. In order to extend the service life of this machine, please turn the machine off for 15 minutes after 4. using it continuously for 4 hours.

5. You may refer to “Suggested Time and Temperature” chart to determine the suitable temperature and time according to the material.

6. Each time you put through power supply and turn power switch on, the heater will take some time to warm up to reach the target temperature for the first press.

COMMON PRINTING FAILURES and THEIR POSSIBLE REASONS

1. The color is lighter: the temperature is too low; OR the pressure is not even; OR the time is too short.

2. The design is indistinct: the time is too long which led to ink diffusion.

3. The design has no luster: the pressure is too high; OR the temperature is too high.

4. Part of design is indistinct: heat printing zone OR the heating is not even.

5. Scar on design: heat printing time is too long.

6. Depth of color is not the same: pressure not even OR the coating is not even.

7. Paper stick to the object: the temperature is too high; OR the coating of the object is not good.

8. Please do not set the temperature to more than 250°C or it will shorten the service life of the machine.

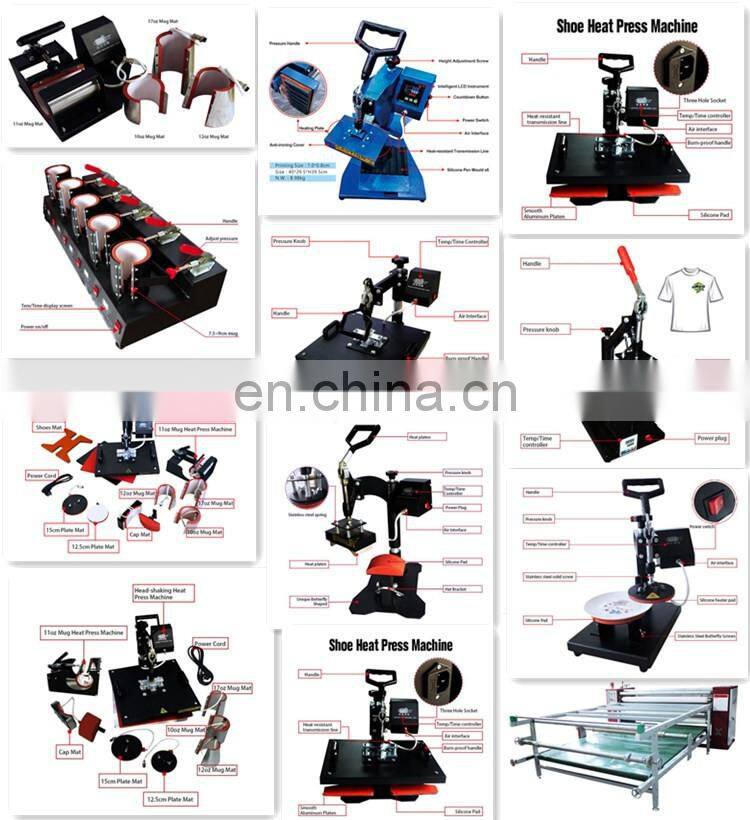

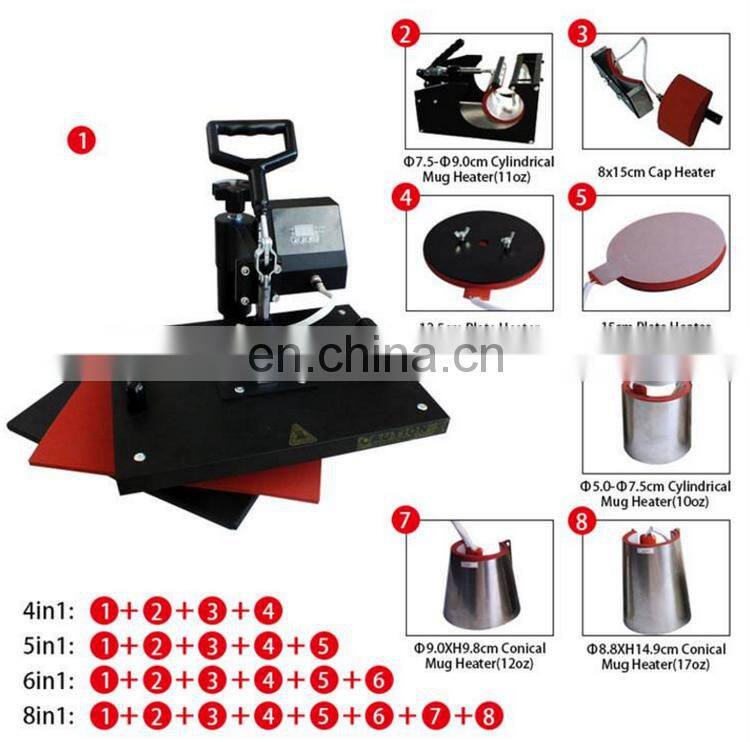

More heat press machine optional : 4in1 / 5in1 / 6in1 / 8in1 / 9in1( including shoe press ) optional, please check as followng :

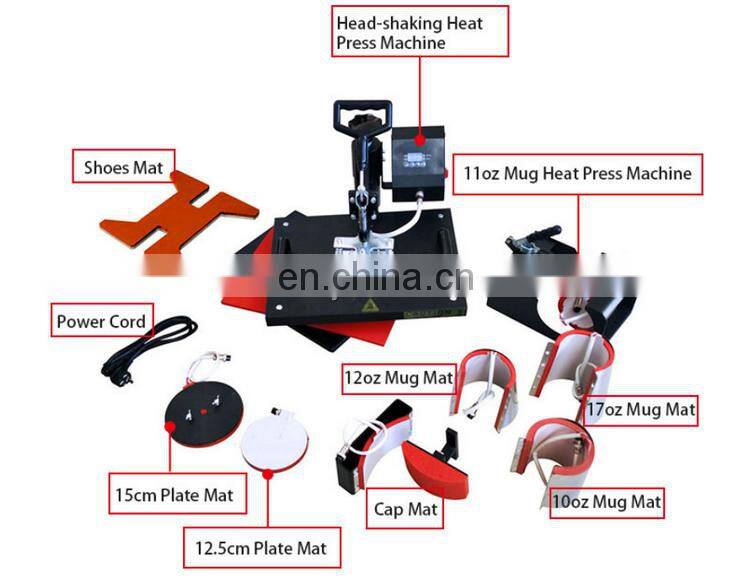

9in1Heat press machine :

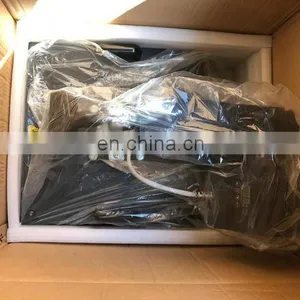

Package Photos:

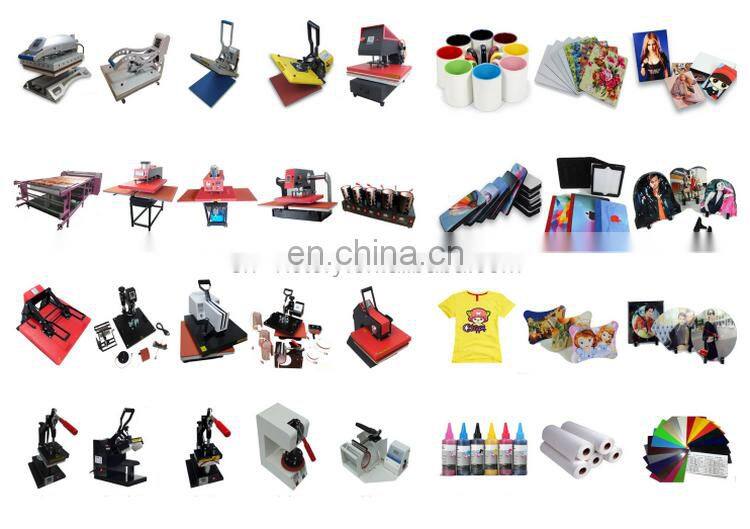

More heat press machine :  Heat press machine 4in1 / 5in1 / 6in1 / 8in1 / 9in1 besides, we also have Plain heat press machine,European High pressure heat press machine,Laser Cut Framework Heat Press with Hook for T-shirt,Swinger Clamshell Heat Press,Swing- Away Clamshell Heat Press Machine ,Simple Swing Away heat press machine,mug heat press machine,5in1 Mug heat press machine  ,4in1 mug heat press machine,Plate Heat press machine,Cap Heat press machine,Logo heat press machine,shoe heat press mavhie,pen press machine etc.
