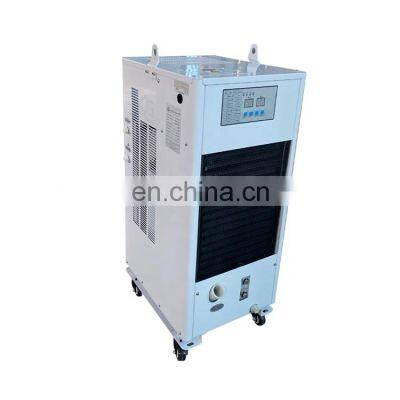

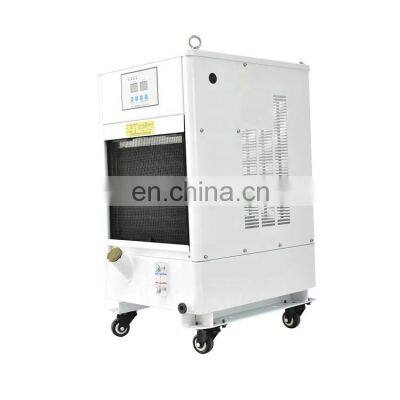

CNC industrial oil cooling chiller for cnc retrofit kit,oil cooling chiller for cnc machine,oil immersion chiller
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
oil chiller for cnc machine spindle oil and water cooling machine in stock QG series
-
oil chiller for cnc machine spindle oil and water cooling machine in stock
-
High quality spindle cold oil and water machine QG-025LY for cnc machine oil chiller machine
-
Oil cooling machine cnc machine oil chiller for cnc spindle cooled oil and water
-
EG series end mill sharpening machine 3mm 5mm portable end mill grinder
-
High Quality Tilting Vice 360 Degrees Vise Q41 with Swivel Base Milling Vice VMC Use
Product Description
Product Description
Model | QG-012LY | QG-015LY | QG-025LY | QG-035LY | QG-052LY | QG-080LY | QG-120LY | |||||||
Item | Unit | |||||||||||||
Cooling Capacity | BTU/HR | 4000 | 5200 | 9000 | 12000 | 18000 | 24000 | 36000 | ||||||
W/HR | 1200 | 1500 | 2500 | 3500 | 5200 | 8400 | 12500 | |||||||
Power | W | 435 | 535 | 885 | 1190 | 2600 | 3500 | 4500 | ||||||
Current | A | 2.5 | 3.0 | 4.1 | 5.6 | 13 | 16 | 20 | ||||||
Voltage Frequency | V/Hz | 3∮220V/50Hz 3∮380V/50Hz | ||||||||||||
Motor capacity | W | 190 | 190 | 370 | 370/750 | 750 | 750 | 750/1500 | ||||||
Pump flow | L/min | 3.7 | 4.2/7 | 6/10L | 10L/20L | 20 | 40 | 40/60 | ||||||
Temperature Accuracy | ℃ | ±0.5 | ||||||||||||
Pipe diameter of air outlet/inlet | inch | ½"X ½" | ½"X ½" | ½"X ½" | ¾"X ¾" | ¾"X ¾" | 1"X 1" | 1"X 1" | ||||||
Conditions of usage | Room temperature(℃) | 0-50 | ||||||||||||
Oil temperature(℃) | 10-45 | |||||||||||||
Oils | VG5#-VG15# cooling oil | VG5#-VG15# cooling oil VG68# anti-wear hydraulic oil | ||||||||||||
Dimensions | MM | 365x450x625 | 350x450x750 | 440x510x835 | 465x575x1000 | 620x590x1043 | 705x605x1050 | 1300x560x1110 | ||||||
Refrigerant | Type | R22 | ||||||||||||
Control method | Capillary throttle | |||||||||||||
Company Profile
Wuxi Fagor Technology Co.,Ltd.is specialized in CNC machine tools accessories .The main products of our company are 4 axis rotary table,5 axis rotary table,water pump, chuck, coupling, end mill grinder,chipping machine,cutter barrel,three-color lamp,knife tower and other accessories With high precision and full varieties are deeply trusted and appreciated by customers.At the same time we have a strong sales team and experienced core service team.we are ready to provide CNC machine tool accessories one-stop solution for you,looking forward to cooperating with you and going to a win-win situation
FAQ
Q: How long is the quality guarantee?
A: One year guarantee.
Q: How long is the delivery time?
A: Generally it is 3-7 days if the goods are in stock. If the goods are not in stock, it will take 8-20 days.
Q: Do your products have a factory inspection before shipment?
A: 100% self-inspection before shipment.
Q: Can you provide some free samples?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.
Q: What kind of packing do you send?
A: We use high quality cartons, internal environmental protection buffer material.
Q: What is our loading port?
A: Usually in Shanghai port, or apply for other ports.
A: One year guarantee.
Q: How long is the delivery time?
A: Generally it is 3-7 days if the goods are in stock. If the goods are not in stock, it will take 8-20 days.
Q: Do your products have a factory inspection before shipment?
A: 100% self-inspection before shipment.
Q: Can you provide some free samples?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.
Q: What kind of packing do you send?
A: We use high quality cartons, internal environmental protection buffer material.
Q: What is our loading port?
A: Usually in Shanghai port, or apply for other ports.
