433 Mhz Rf Module Wireless Data Transmitter and Receiver 500m Max Power Time Dimensions Output Input Hours Origin Transfer Rate
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1990
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Party Balloon Remote Controller 1 Control 12 Direct Stick Balloon 6V Remote Control SwitchNegotiableMOQ: 1 -
1 Control 8.6V Ground Explosion Air Explosion Balloon Remote Control ActuatorNegotiableMOQ: 1
-
Source Factory: 433mhz Learning Code Curtain Motor Remote Control EV1527 Four-button Push Cover Wireless RF Remote Control KeyNegotiableMOQ: 1
-
433MHZ Metal 4 Button Wireless Copy Code Remote Control Universal Remote Control Compatible With Fixed Code ClonesNegotiableMOQ: 1
-
4 Button 433MHz Universal Garage Door Opener Security Alarm Clone Key Lock Remote ControlNegotiableMOQ: 1
Product Description
Specification
item | value |

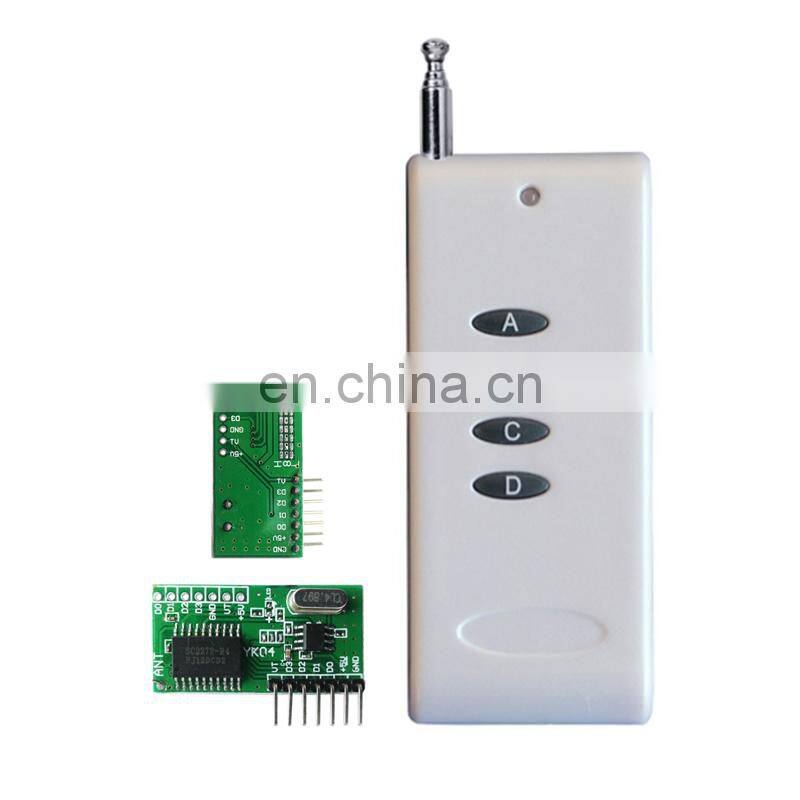

Model Number | FBD1000-4+RFYK04 |
Type | RF Module |
Place of Origin | China |
Guangdong | |
Brand Name | FBD |
Chipset | 2264-2272-M4 |
Supplier Type |
Packing & Delivery
1pcs/PC bag 500pcs/carton 1000pcs/carton
Product parameters
roduct model: fbd-YK04
Product Name: 5V high frequency superheterodyne four channel decoding and receiving module
1, Technical parameters
Working voltage (V): DC5V
Static current (MA): 4.5mA
Modulation mode: amplitude modulation (ook)
Working temperature: - 10 ℃ ~ + 70 ℃
Receiving sensitivity (DBM): - 114dB
Operating frequency (MHz): 315, 433.92mhz (266-433mhz frequency range optional)

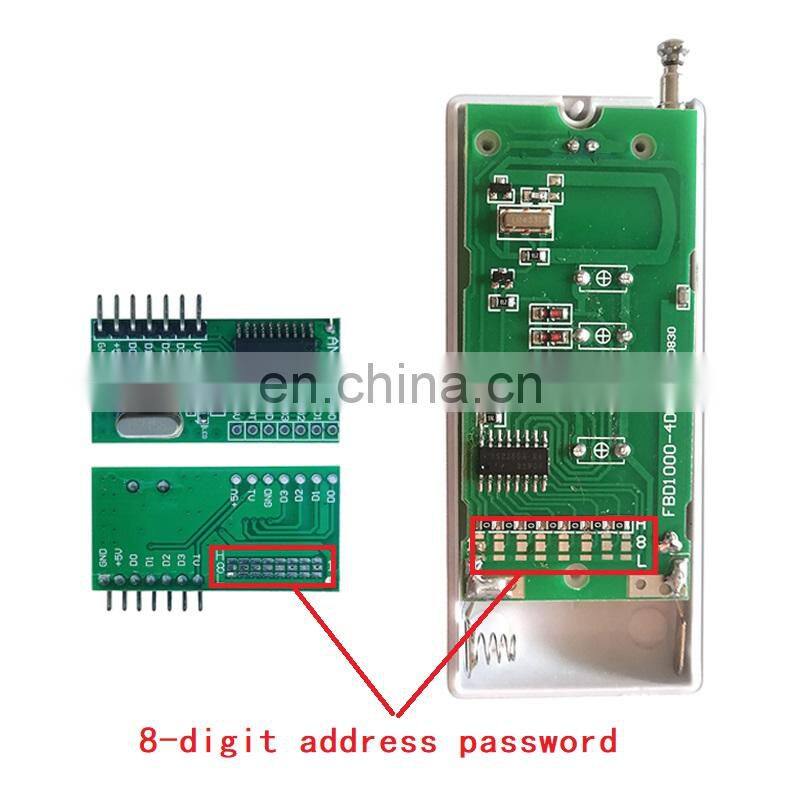

Coding method: pad code (fixed code)
Working mode: M4 (inching: press and hold the output without releasing the hand, and stop the output after releasing the hand), L4 (interlock: four channels can only have one output at the same time), T4 (self-locking: four channels can output independently and have no influence on each other, press output once and then stop output again)
Size (LWH): 40 * 20 * 7mm
2, Product features: Superheterodyne receiver module uses LC oscillation circuit, including amplification and shaping. The output data signal is high-level signal after decoding. It is very convenient to use and low-cost, so it is widely used. With 4-channel decoding output (can also be changed to 6-channel inching or interlocking output), easy to use; frequency debugging is easy, short supply cycle; good product quality consistency, high cost performance.
The receiving module has a wide receiving bandwidth, which is generally ± 10MHz, and is generally adjusted at 315MHz or 433.92mhz (if there are special requirements, the frequency can be adjusted from 266MHz to 433MHz). The receiving module generally adopts DC5V power supply, and the voltage range can be adjusted if there are special requirements.
3, Foot position and instructions:
roduct model: fbd-YK04
Product Name: 5V high frequency superheterodyne four channel decoding and receiving module
1, Technical parameters
Working voltage (V): DC5V
Static current (MA): 4.5mA
Modulation mode: amplitude modulation (ook)
Working temperature: - 10 ℃ ~ + 70 ℃
Receiving sensitivity (DBM): - 114dB
Operating frequency (MHz): 315, 433.92mhz (266-433mhz frequency range optional)
Coding method: pad code (fixed code)
Working mode: M4 (inching: press and hold the output without releasing the hand, and stop the output after releasing the hand), L4 (interlock: four channels can only have one output at the same time), T4 (self-locking: four channels can output independently and have no influence on each other, press output once and then stop output again)

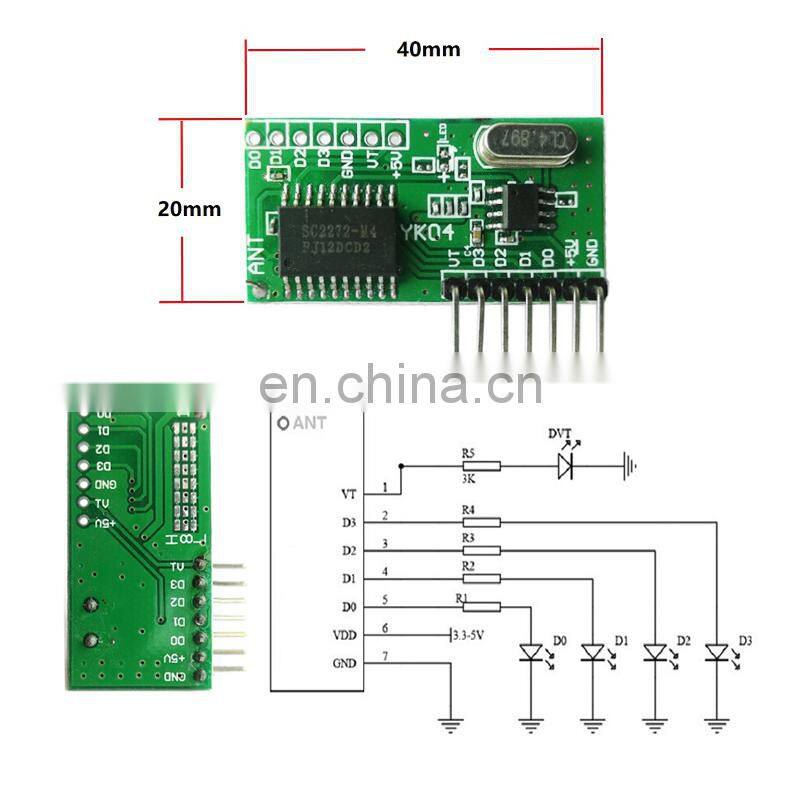

Size (LWH): 40 * 20 * 7mm
2, Product features: Superheterodyne receiver module uses LC oscillation circuit, including amplification and shaping. The output data signal is high-level signal after decoding. It is very convenient to use and low-cost, so it is widely used. With 4-channel decoding output (can also be changed to 6-channel inching or interlocking output), easy to use; frequency debugging is easy, short supply cycle; good product quality consistency, high cost performance.
The receiving module has a wide receiving bandwidth, which is generally ± 10MHz, and is generally adjusted at 315MHz or 433.92mhz (if there are special requirements, the frequency can be adjusted from 266MHz to 433MHz). The receiving module generally adopts DC5V power supply, and the voltage range can be adjusted if there are special requirements.
3, Foot position and instructions:

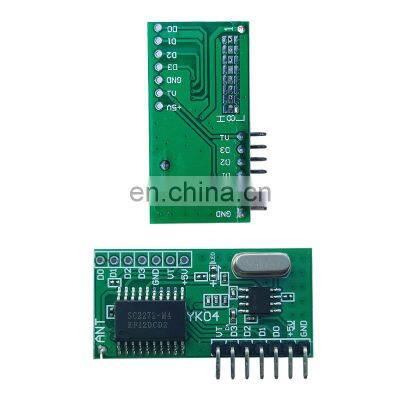

The receiving module has eight external interfaces, which are expressed in English. "5V" refers to the positive pole of the power supply, "d0, D1, D2, D3" indicates the output, "GND" indicates the negative pole of the power supply, and "ant" indicates the antenna terminal.A 50 ohm 1 / 4 wavelength antenna should be connected before use, and the antenna should be straight to achieve the best reception effect, wavelength = light speed / frequency.
4, Application environment (application field) Wireless remote control switch, remote control socket, data transmission, remote control toys, anti-theft alarm host, garage door,
rolling gate, gate, telescopic door and other door control industry and remote control audio field.
5, Optional accessories With the company launch series, remote control series products supporting use.
6, Remarks The VCC voltage should be consistent with the working voltage of the module, and the power filter should be done well; The antenna has a great influence on the receiving effect of the module. It is better to connect a quarter wavelength antenna with a 50 ohm single core wire. The length of the antenna is about 23cm for 315m and 17cm for 433M; When installing, the antenna should be as straight as possible, far away from the shield, high voltage and interference source; The receiving frequency and decoding mode should match with the transmission
rolling gate, gate, telescopic door and other door control industry and remote control audio field.
5, Optional accessories With the company launch series, remote control series products supporting use.
6, Remarks The VCC voltage should be consistent with the working voltage of the module, and the power filter should be done well; The antenna has a great influence on the receiving effect of the module. It is better to connect a quarter wavelength antenna with a 50 ohm single core wire. The length of the antenna is about 23cm for 315m and 17cm for 433M; When installing, the antenna should be as straight as possible, far away from the shield, high voltage and interference source; The receiving frequency and decoding mode should match with the transmission
