Remote control switch 12v Wireless remote control 433mhz dc 12v 1 channel relay remote switch Wireless switch remote control

Name: Remote control switch 12v Wireless remote control 433mhz dc 12v 1 channel relay remote switch Wireless switch remote control
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Product Name	DC12V single remote control switch
Receiving distance	more than 25 meters
Communication frequency	433.92±0.2MHz
Coding method	:learn the code

Product performance description
产品性能介绍说明

1-button remote Modulation method: ASK (amplitude modulation) Transmission frequency: 315, 433MHZ (sound meter stable
frequency, other frequencies can be customized) Transmission distance: 120-150M (open circuit and open circuit, the sensitivity of the receiving device is 100dbm) Encoder type: EV1527 chip learning code (millions of sets of built-in passwords)
Uses: motorcycles, automobile anti-theft alarms and other security fields, LED lighting, fan lights, electrical switches, access
control electronic locks, etc.

Title goes here.

Product parameters
1. Working voltage: DC12V
2. Working current: 4.7mA
3. Sensitivity: -110DBM
4. Rate: MAX 10 KB/S
5. Working mode: jog, self-locking, interlocking (freely convertible)
6. Module output: 1 CMOS level signals, which can correspond to 41
7. Receiver module can store remote control: 16
8. Support coding chip model: EV1527, PT2262, 2264, 2260 other customization

Details Images

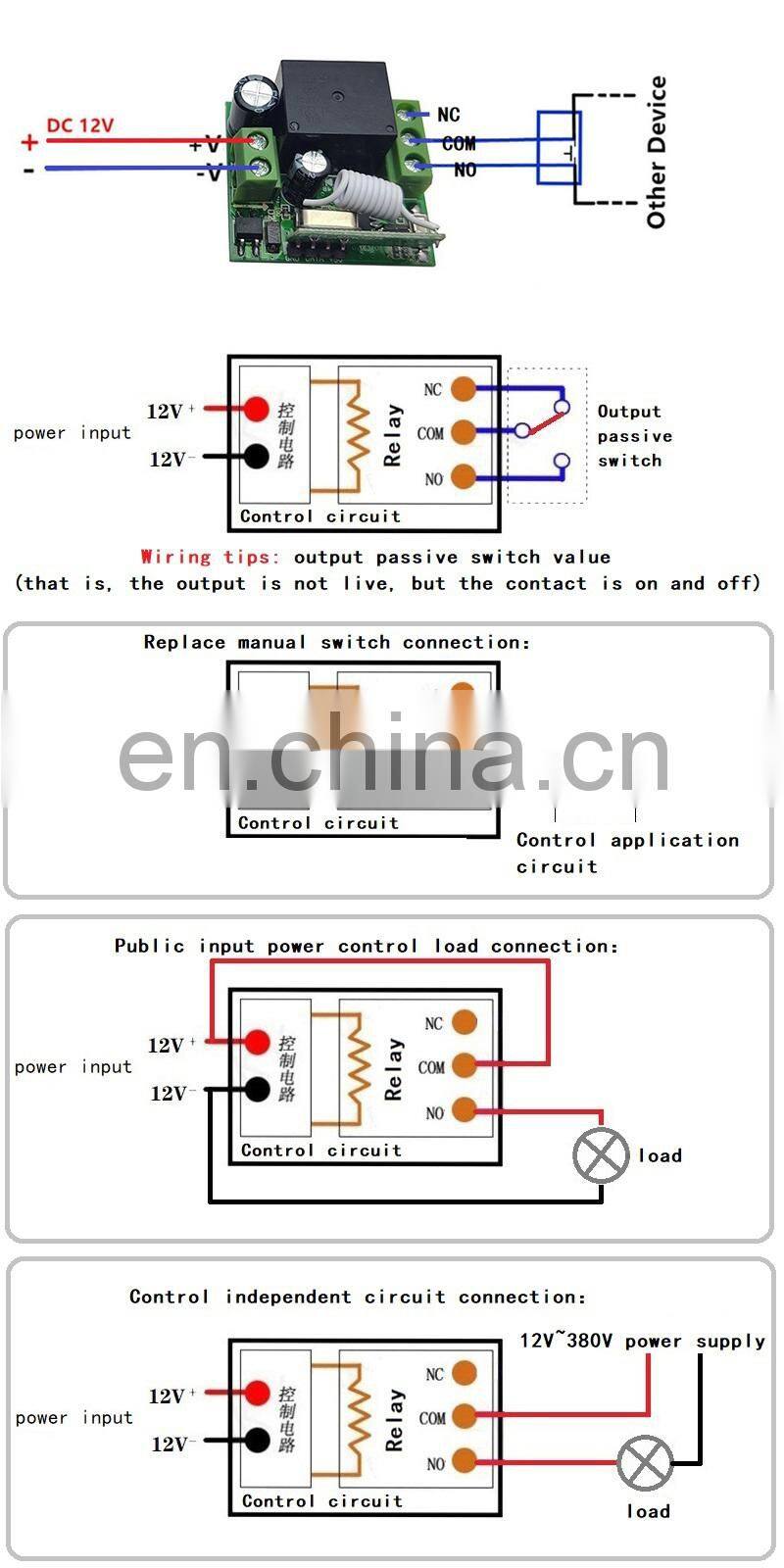

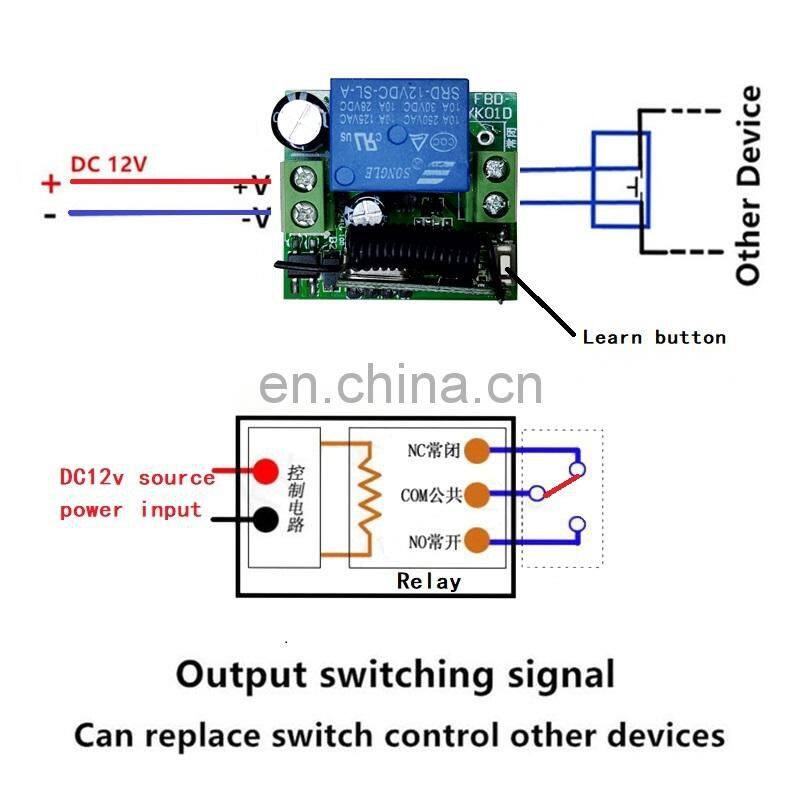

Working mode: inching, self-locking, interlocking (can be freely converted) Switch output: 1 way switch on and off control,

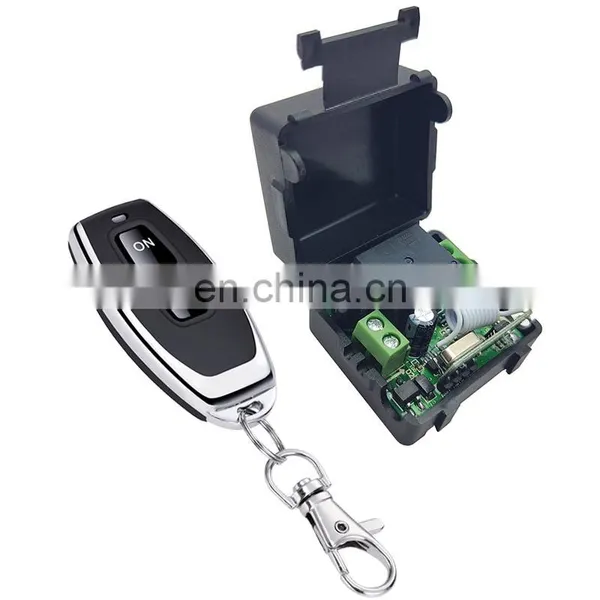

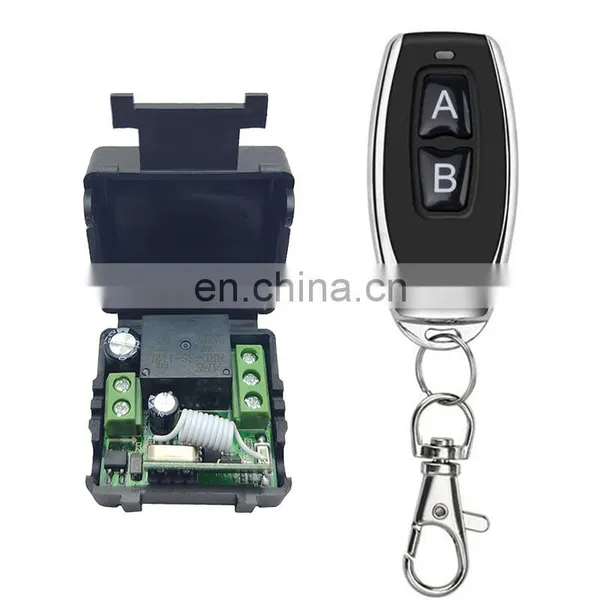

2-button remote control + receiving module

Product Usage

- Clear and code matching:

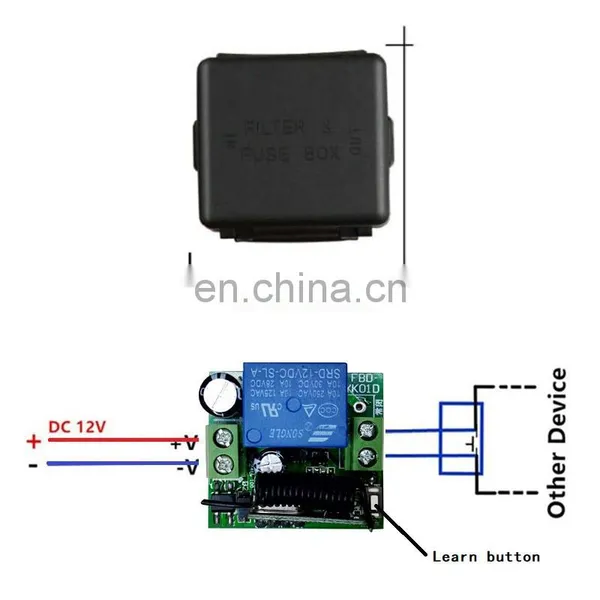

1. Clear function-After pressing the learning button 8 times, the LED indicator flashes 3 times and then goes out, and all the remote control code data in the memory is cleared, which means that the clear function is completed. 2. Code matching function-press the learning button (jog mode) "KEY", the LED indicator lights up to indicate that the microprocessor enters the learning and code matching state, press the matching wireless remote control button, the LED indicator flashes 3 If it turns off after the second time, it means the code is successfully matched. (The learning button is pressed once to learn to pair the remote control as jog mode; twice to learn to pair the remote control is self-locking mode; press 3 times to learn to pair the remote control as interlock mode;) The wireless remote control switch can store 21 different remote controls , You need to clear the code again before changing the working mode. 3. Code matching test——After the code matching is successful, when you press the button of the remote control, the corresponding relay will make a ticking sound.

Description of product use effect

产品使用效果说明

There are 1 to 8 keys to choose from, all of which can be matched with the receiver module, and the button symbols can be
customized with silk printing
