Remote Control Switch, 12V Single Channel Relay Module RF Wireless Switch Receiver Equipped With Portable Remote Control
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1990
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
VONVOFF Wireless Remote Switch With 328ft Long Range DC 12V/24v/48v/72V Switch for Anti-Theft Alarms, Roller Lind Door (Black)NegotiableMOQ: 1 -
433mhz Universal Wireless Remote Control Switch dc 12v 4ch Relay Receiver Module and 2 Pieces Transmitter 433mhz Remote ControlsNegotiableMOQ: 1
-
4 Wireless Remote Control 433mhz dc 12v 4 Channel Relay Remote Switch Remote Control Switch WirelessNegotiableMOQ: 1
-
433Mhz Wireless Remote Control Switch Digital Wireless Remote Control Switch 4 Channel Wireless rf Remote Control SwitchNegotiableMOQ: 1
-
1km Wireless Remote Control Switch 433mhz 4 ch Wireless Remote Control Switch TransmitterNegotiableMOQ: 1
Related Products
Product Description

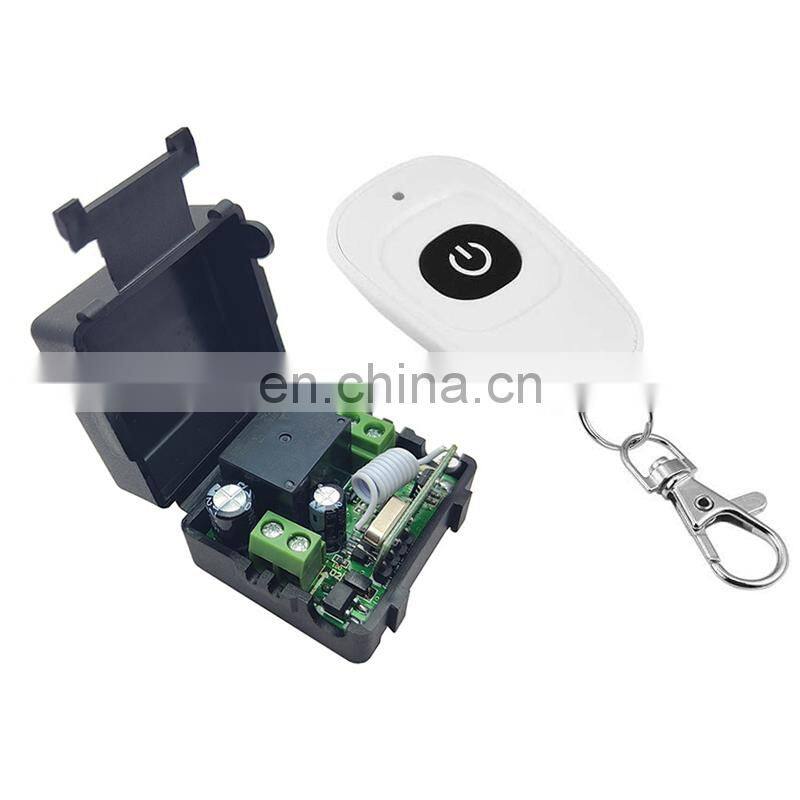

Package List:

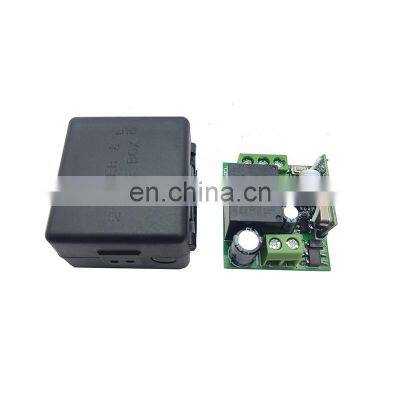

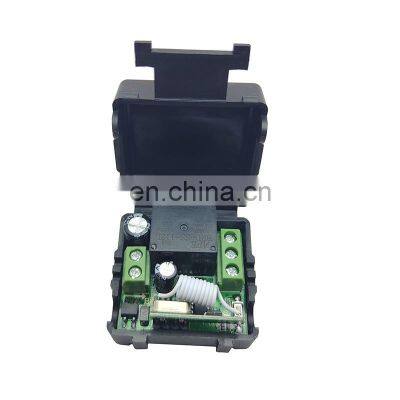

1 * Wireless Circuit Board Relay Receiver

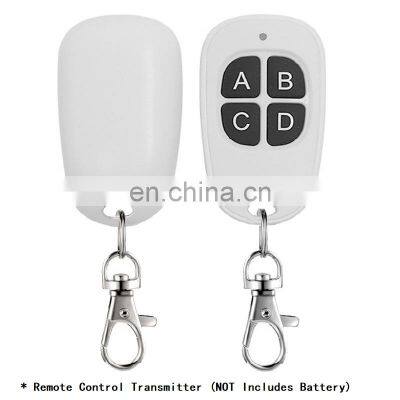

1 * Remote Control Transmitter (NOT Includes Battery)
Product Description
Product Name | FBD-YK01E-JX-433 |
Transmission distance： | 100 meters(Open space) |
Chip and Operating mode： | Fixed code (2260,2262 2264 etc) |
size： | 56*42*38mm |

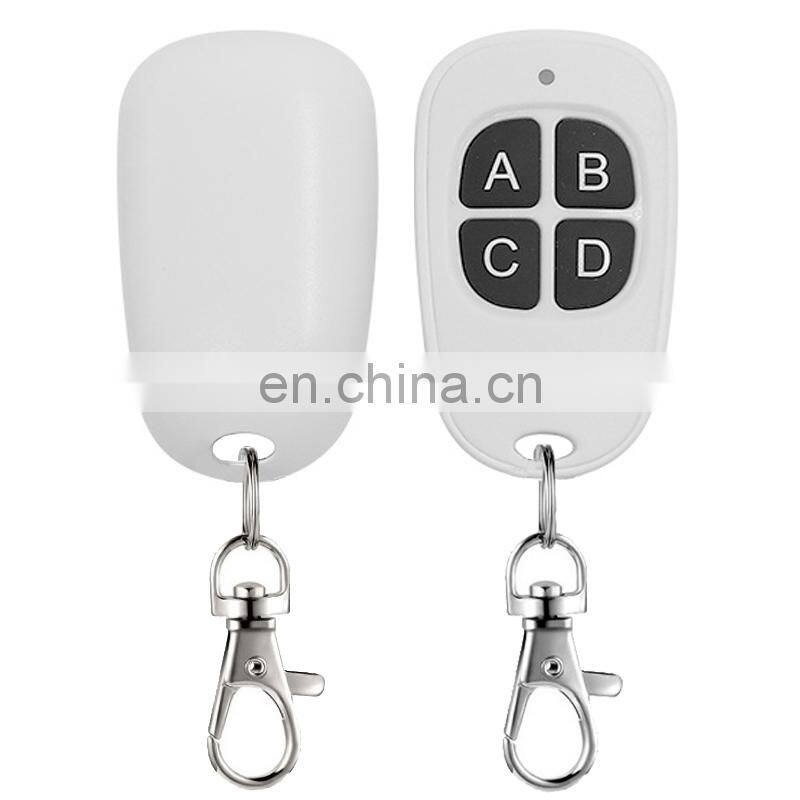

1) Transmitter
Color: White
Frequency: 433/ MHz
Button: 1 Button
Encoder type: EV1527 chip learning code (millions of built-in passwords)
Battery: 2016 Button Battery (NOT Included.)
Size: Approx. 35 x 60 x 9mm/ 1.4 x 2.4 x 0.4in
Package Size: Approx. 90 x 80 x 30mm / 3.5 x 3.1 x 1.2in
Package Weight: 42g
Uses: motorcycles, automobile anti-theft products, household anti-theft products, electric retractable doors, guardrails (blocks), linear doors, automatic induction doors, remote garage doors, side hanging doors, rolling shutter doors and other security fields
Product Usage

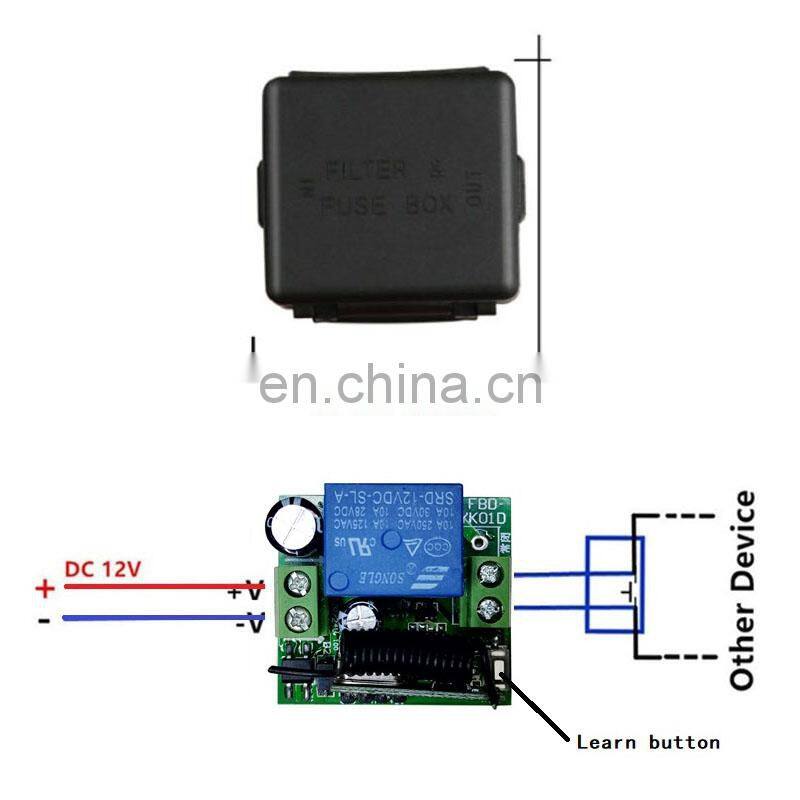

1) Receiver:
Working Voltage: 12V
Max. Loading Current: 10A
Frequency: 315/ MHz
Size: Approx. 35 x 32 x 19mm/ 1.4 x 1.3 x 0.7in

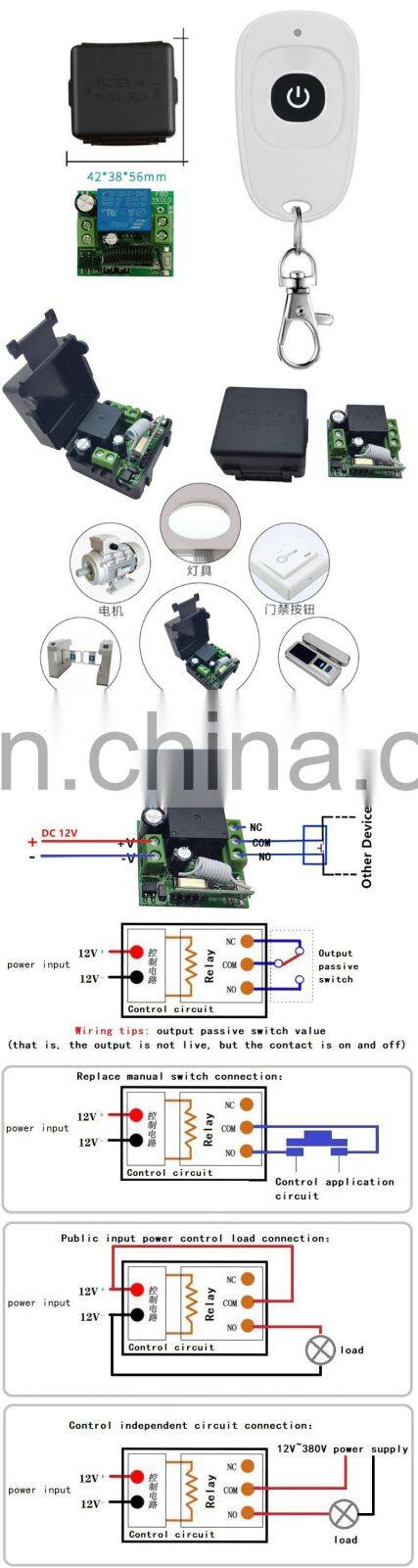

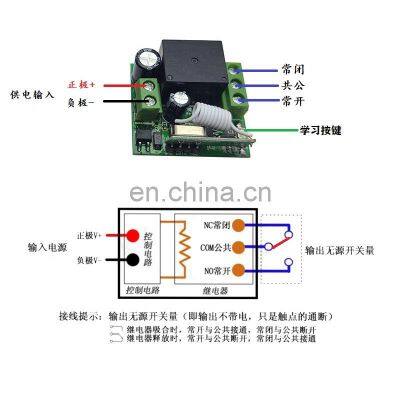

Control Mode:
1). Self-Lock Mode: Press->On; Press again->Off (Need 1 channel switch and 1 remote control button.)
Press one button for working/ ON. Press the same button again for stopping/ OFF.
2). Inter-Lock Mode: Press->On; Press other button->Off (Need 1 channel switch and 2 remote control buttons.)
Press one button for working/ ON, press another button for stopping/ OFF.
3). Jog Mode: Press and hold->On; Release->Off (Need 1 channel switch and 1 remote control button.)
Keep pressing one button for working/ ON. Remove your finger for stopping/ OFF.
Details Images
The company undertakes customized development, quality assurance, and low price
1-button
2-button remote
2-button remote
Packing&Shipping
Single PE bag or white box packaging is optional, default bag, please contact customer service if you have any requirements!
Company Introduction
Founded in 2013, Shenzhen Fengbaode Electronic Technology Development Co., Ltd. is located in Shenzhen, Guangdong Province, the largest raw material processing and production center for digital electronic products. It is a professional wireless remote control, intelligent remote control project, wireless RF remote control transmitter receiving wireless The control solution solves the development of electronic software and hardware and production and processing enterprises. Main intelligent remote control project, 315 433MHZ anti-theft alarm remote control, battery car motorcycle anti-theft remote control transmitter, electric door garage door retractable door remote control LED lamp kilometer high power remote control, wireless transceiver module 2.4G Bluetooth remote control, car control Circuit board controller remote control switch VR remote control VR helmet glasses, etc.,the variety is complete, the price is fair, the company's complete scientific quality management system, product quality has been recognized by the industry. The company has a strong focus on keeping promises, complying with contracts to ensure product quality, and featuring diversified product management. Variety of models, complete models, and the principle of small profits but quick turnover to win the support of the new and old customers.
Our Services & Strength
1: We have our own factory, production line, SMT and plug-in, automatic screwdriver machine, etc. and R&D department
2: We have customized many items for customers
3: Silk screen LOGO can be customized according to customer requirements
FAQ
Q: What is your MOQ?
A :Our MOQ is 100pcs.The more quantity you order ,our material cost will be less, the price we offer to you will better.
Q: How about your price?
A:We will do our best to offer a good price for our customers, usually our price is worked out according to the current exchange rate, probable order quantity, most important is your sincerity on cooperation.
Q: Can you supply sample for customer?
A:We can supply sample for customer's quality checking before placing new order to us, the delivery cost will be charged on customer's account.
Q:Can you customize for customers?
A: Yes,we can customize according to customers'requirements.
Q: How about your delivery date?
A:Normally our delivery date is about 7-20days after the payment received.
Q:How about the quality of your products?
A:We use best quality (original) components to ensure our product in high level. All products we sold out are strictly tested by our QC department.
Q:Can I visit your factory? A:Yes,welcome to our company.
Q:How long do your products does?
A:120-200M
Q:Can I have your free sample?
A :Yes,but the CIF will be on you
