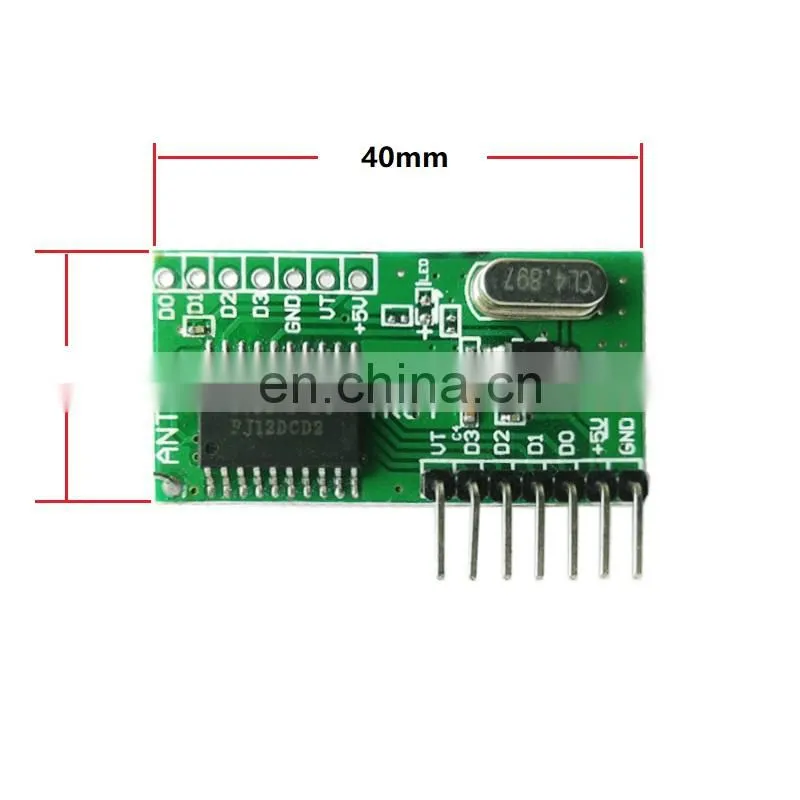

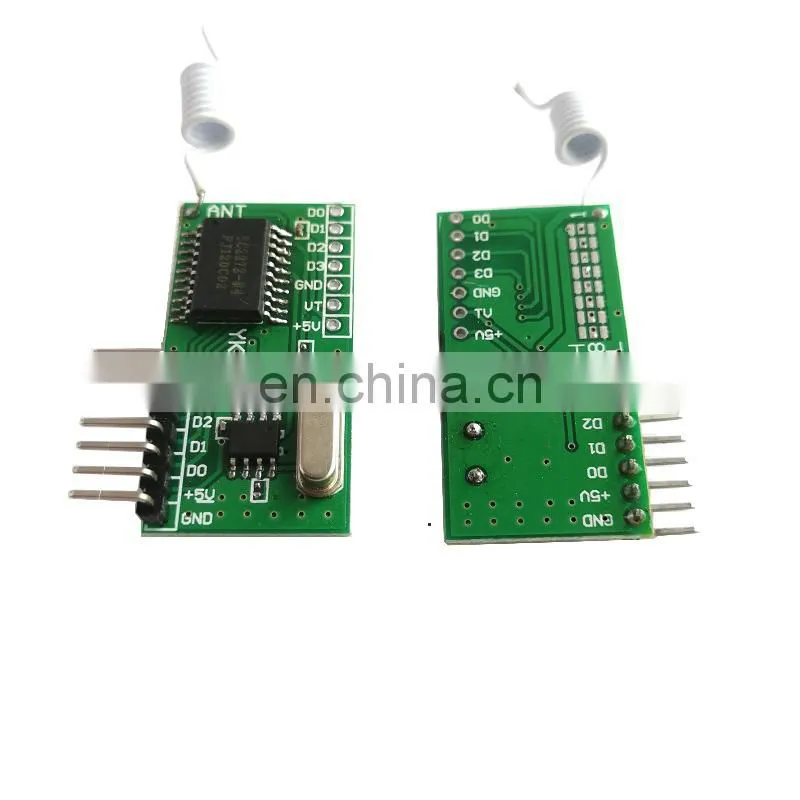

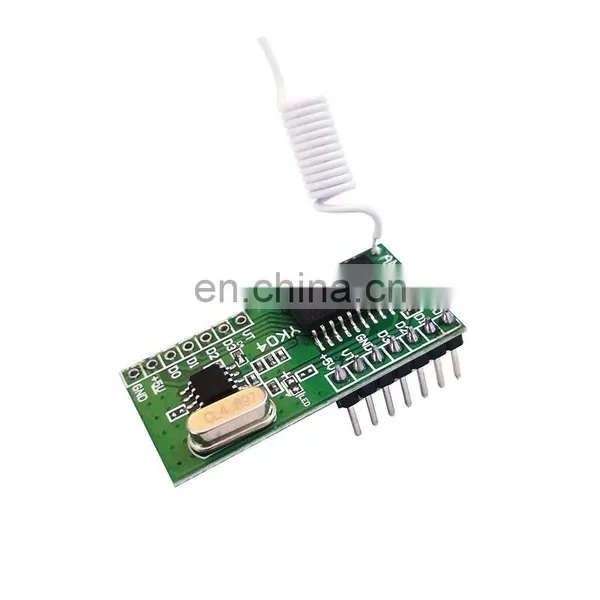

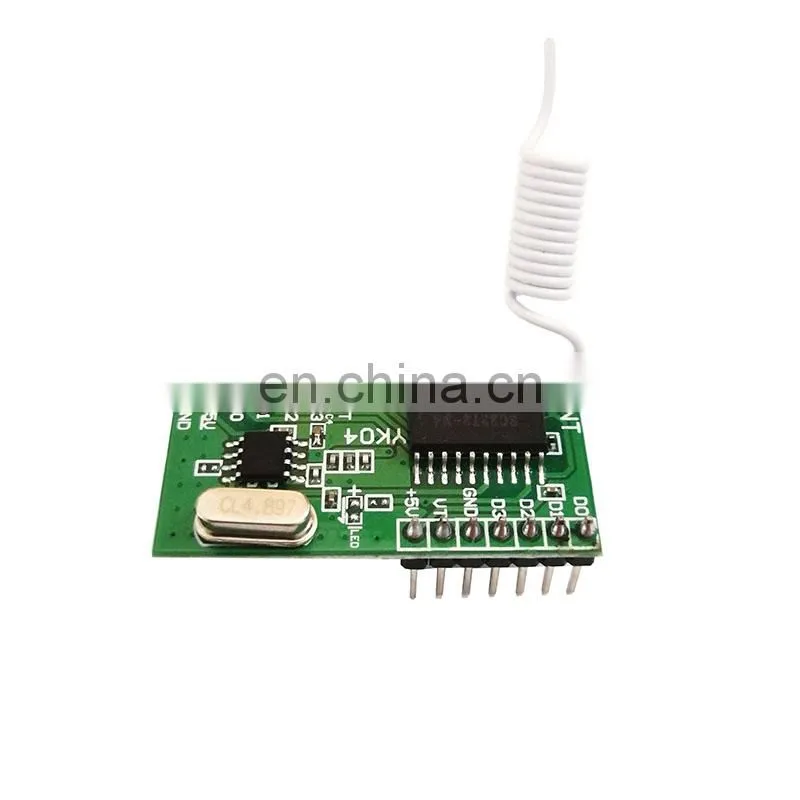

Help Center433RF Receiving Module 4-channel High-level Signal Learning Decoding Receiving Circuit Board
Related Products
-
Wireless 433Mhz RF Module Receiver and Transmitter Remote Control Built-in Learning Code 1527 Decoding 4 Channel OutputNegotiableMOQ: 1 -
Micro Ultra Small Volume 5 Volt High Frequency Superheterodyne Wireless Receiving ModuleNegotiableMOQ: 1
-
433MHZ Wireless RF Decoding Module Remote Control Receiver BoardNegotiableMOQ: 1
-
1km Wireless Remote Control Switch 433mhz 4 ch Wireless Remote Control Switch TransmitterNegotiableMOQ: 1
-
Remote Control Switch for Access Control 12v 1 ch 10a Relay Receiver Transmitter Learning Light Lamp Wireless Switch 315433mhzNegotiableMOQ: 1
|
1 |
Working voltage |
DC3~5V |
|
2 |
Working curren |
<=12mA |
|
3 |
working frenquency |
315MHz/433MHz/868MHz and other for optional |
|
4 |
Transmit powe |
>=10mW |
|
5 |
Transmission Speed |
50-60KHZ |
|
6 |
Frenquency Windage |
±0.2MHz |
|
7 |
Transmission distance |
100 meters(Open space) |
|
8 |
Oscillation resistance |
As customer’s request |
|
9 |
OEM & ODM |
YES |
|
10 |
Chip and Operating mode |
Learning code(1527,2240,HT6P20B,HT6P20D etc) |
|
Fixed code (2260,2262 etc) |
||
|
Hopping code(HCS301,300,200 etc.) |
||
|
Copy code(Face to face) |
Product parameter
1. Working voltage: DC2.5V-5V
2. Working current: 3.7mA
3. Sensitivity: -108DBM
4. Rate: MAX 10 KB/S
5. Working mode: inching, self-locking, interlocking (contact the seller before buying to confirm the working mode)
6. Module output: 4 CMOS level signals, which can correspond to the 4 buttons of the remote control "ABCD"
7. Support coding chip model: PT2262, 2264, 2260 and other customization

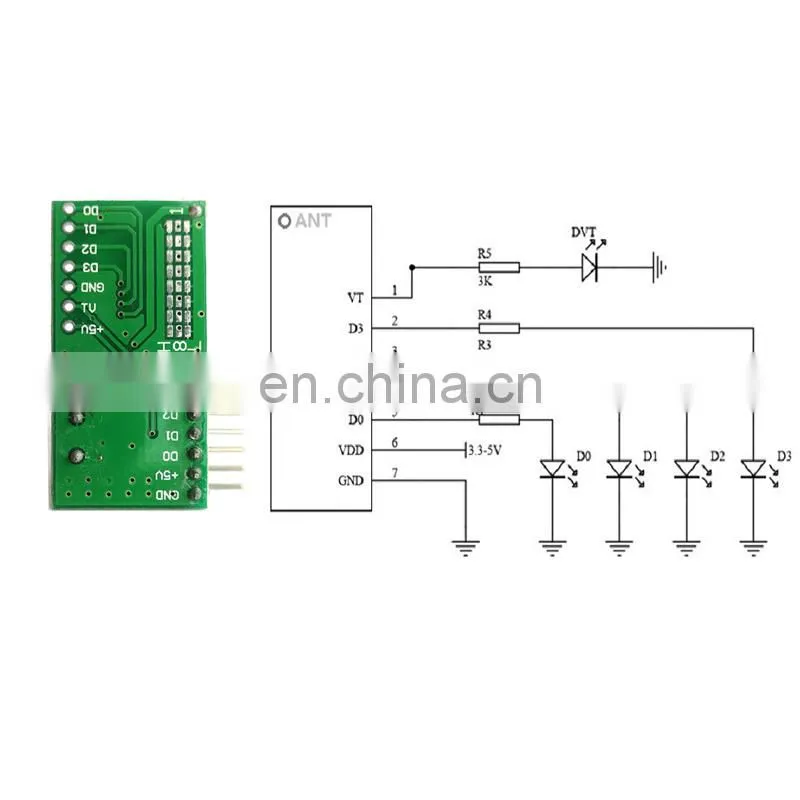

When the remote control button is pressed, the output of D0, D1, D2, and D3 is high, and when not pressed, it is low.
1; Explanation of jog mode:
Press and hold the remote control button, the corresponding data pin outputs high level, release the remote control button, the corresponding data pin becomes low level
2; Self-locking mode explanation:
Press and hold the remote control button, the corresponding data pin outputs high level, release the remote control button, the corresponding data pin is still high level, press the remote control button again, the corresponding data pin becomes low level (loop)
3; Interlock mode explanation:
Press and hold the remote control button, the corresponding data pin outputs high level, release the remote control button, the corresponding data pin is still high level, press the same button on the remote control again, the corresponding data pin is still high level, press another button on the remote control , The corresponding data pin of the remote control changed to a low frequency last time, and the data pin corresponding to the button this time outputs a high frequency (and so on)

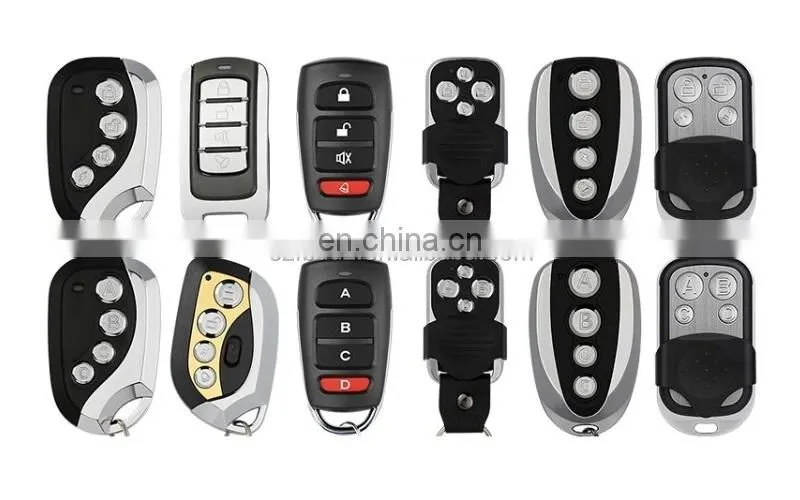

To pair a fixed-code remote control, the frequency is the same, and the 8-bit address code pad is encoded the same, and the corresponding D0, D1, D2, and D3 outputs are high.
Notice:
1 This RF receiver module only supports remote controllers with fixed codes (2260/2264 chips)
2 This receiving module has an 8-bit pad address code that needs to be matched with the 8-bit pad address code of the remote control before it can communicate.

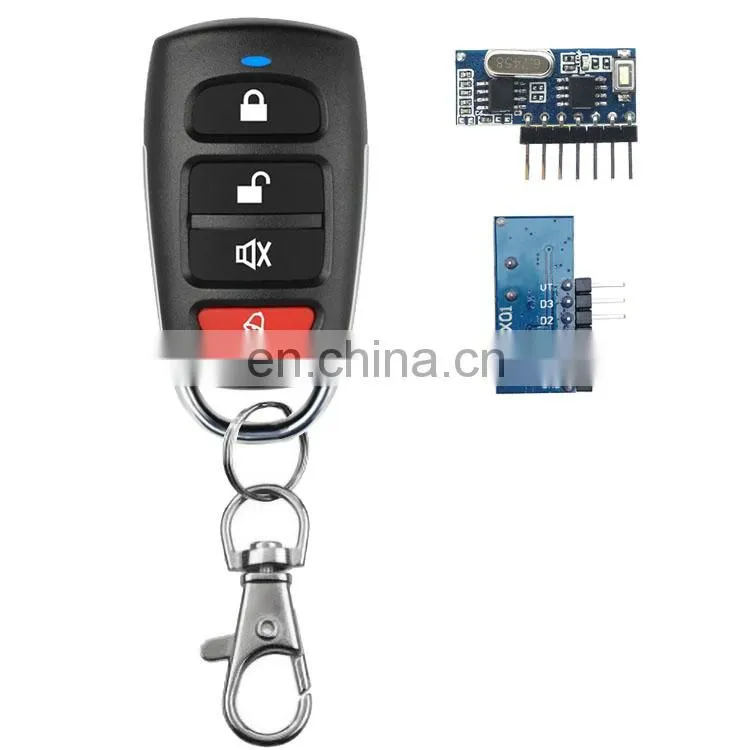

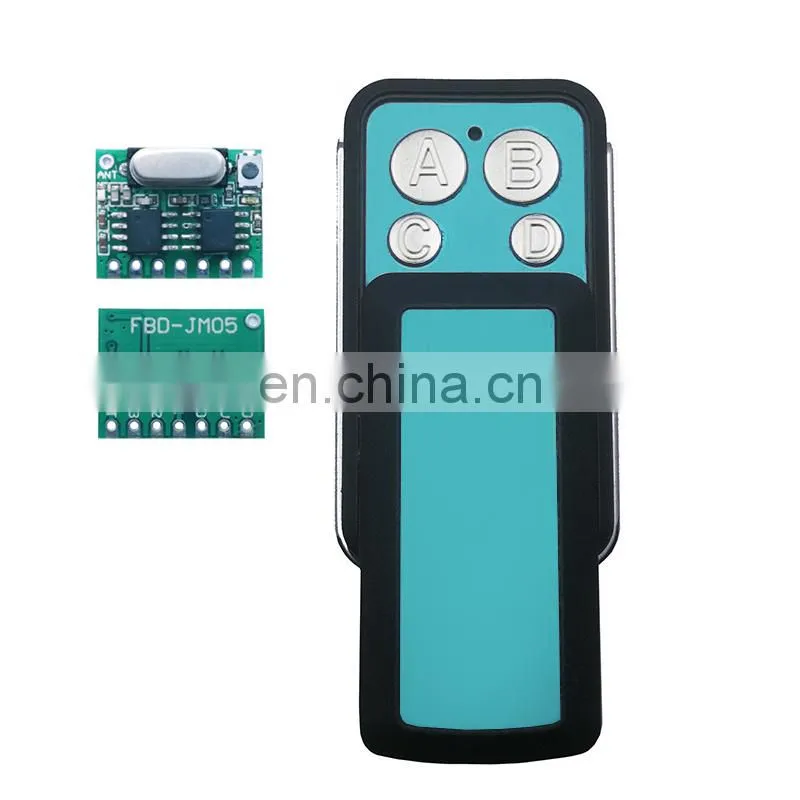

3 If you only purchase the receiving module, it cannot be used. It is a part of the remote control system and needs to be used with the remote fixed code remote control to achieve control.
4. You can use this kind of fixed code remote control with the same frequency for supporting use, or you can buy a receiver from us, the pairing is good.
