433MHZ Wireless RF Decoding Module Remote Control Receiver Board
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1990
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
433RF Receiving Module 4-channel High-level Signal Learning Decoding Receiving Circuit BoardNegotiableMOQ: 1 -
Wireless 433Mhz RF Module Receiver and Transmitter Remote Control Built-in Learning Code 1527 Decoding 4 Channel OutputNegotiableMOQ: 1
-
Micro Ultra Small Volume 5 Volt High Frequency Superheterodyne Wireless Receiving ModuleNegotiableMOQ: 1
-
1km Wireless Remote Control Switch 433mhz 4 ch Wireless Remote Control Switch TransmitterNegotiableMOQ: 1
-
Remote Control Switch for Access Control 12v 1 ch 10a Relay Receiver Transmitter Learning Light Lamp Wireless Switch 315433mhzNegotiableMOQ: 1
Product Description
Working current |
3.7mA |
Working voltage |
DC2.5V-5V |
Sensitivity |
-108DBM |
Working mode |
jog, self-locking, interlocking (freely convertible) |
Product performance description
产品性能介绍说明
1. Working voltage: DC2.5V-5V
2. Working current: 3.7mA
3. Sensitivity: -108DBM
4. Rate: MAX 10 KB/S
5. Working mode: jog, self-locking, interlocking (freely convertible)

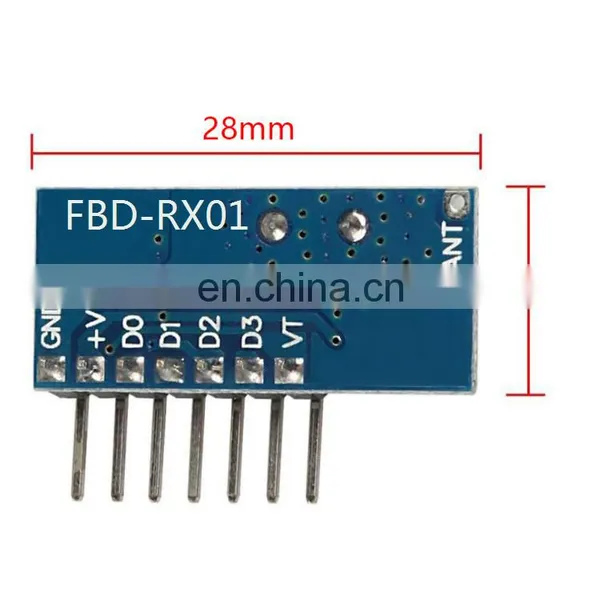

6. Module output: 4 CMOS level signals, which can correspond to 4 buttons of remote control "ABCD"
7. Receiver module can store remote control: 16
8. Support coding chip model: EV1527, PT2262, 2264, 2260 other customization
Details Images
Remote control+receiving module
Remote control+receiving module
Remote control+receiving module
Product Usage
-
Product usage introduction
When the remote control button is pressed, the output of D0, D1, D2, and D3 is high level, and when it is not pressed, it is low
level.
Clear and match the code: (Before switching the mode, clear the code first)
1, clear function - press the learning button (not let go) "KEY" 5 seconds, after the LED indicator goes out, let go, wait until
the LED indicator flashes 3 times and then go out, start to clear all the remote control code data in the memory, it means The
clear function is complete.
level.
Clear and match the code: (Before switching the mode, clear the code first)
1, clear function - press the learning button (not let go) "KEY" 5 seconds, after the LED indicator goes out, let go, wait until
the LED indicator flashes 3 times and then go out, start to clear all the remote control code data in the memory, it means The
clear function is complete.
