2 Channel Wireless Remote Control Switch Wireless Remote Control Relay Switch 2 Channel
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1990
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High-power Remote Control 3000 m + Receiver Module Remote Wireless Transceiver Remote Learning Kit 433NegotiableMOQ: 1 -
3000m High-power Wireless Remote Control Transmitter Handle Water Pump Remote Control 433MHZ Remote VibratorNegotiableMOQ: 1
-
Garage Door Opener Remote Laser Wifi 3000m High-power Long-distance Remote Control 433Mhz Learning Code HS1527 Wireless RemoteNegotiableMOQ: 1
-
High-quality 433MHZ Wireless Remote Control 1527 Learning Type 3000m High-power Long-distance Remote ControlNegotiableMOQ: 1
-
433mhz rf Transmitter and Receiver Module Rf Remote Control Module Kit Rf Remote Control ModuleNegotiableMOQ: 1
Product Description
Product Name |
FBD-YKX02-433 |
Transmission distance： |
100 meters(Open space) |
Chip and Operating mode： |
Fixed code (2260,2262 2264 etc) |

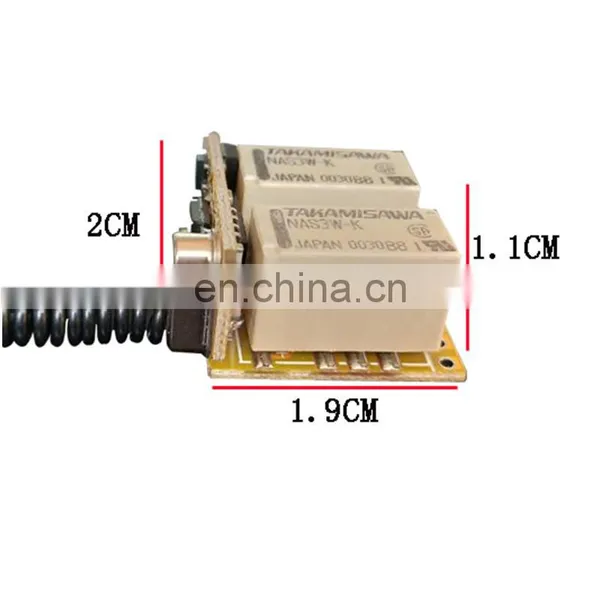

size： |
200*190*110mm |
Product performance description
Power supply voltage: 3.7V-12V (wide voltage universal)
Static working current: 7ma
Working current: 1 way turn on current 50ma, 2 way turn on 100ma (small battery power supply needs to consider the use time)
Maximum load: 2A relay Recommended load is less than 1.5A

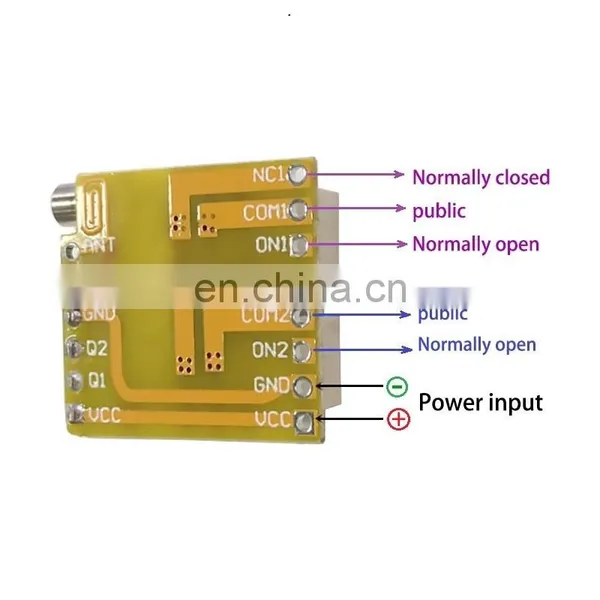

About the principle of 2-way contact switch:
Power-off and power-on standby state: NC1 and COM1 & NC2 and COM2 are in short-circuit connection state. ON1 and COM1 & ON2 and COM2 are disconnected.
After receiving the remote control signal: NC1 and COM1 & NC2 and COM2 are short-circuited and converted to disconnection, while ON1 and COM1 & ON2 and COM2 are short-circuited at the same time

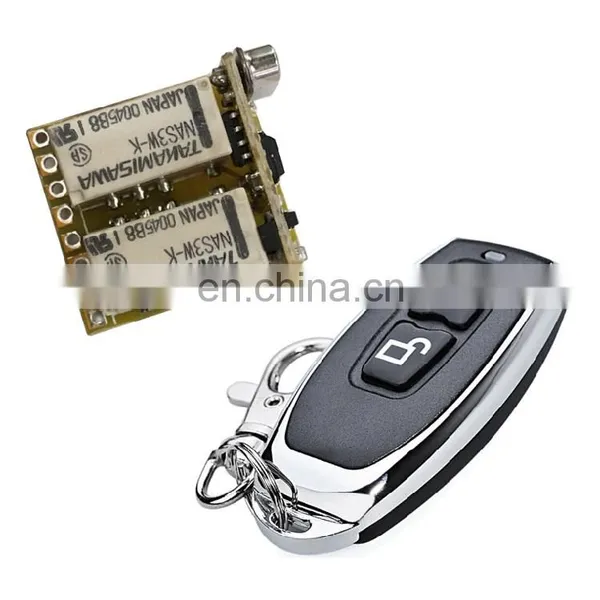

Details Images
The company undertakes customized development, quality assurance, and low price
1-button remote control
2-button remote control
3-button remote control
Product Usage
-
Product usage introduction
产品使用效果说明
Jog-----with a 1-button remote control------2 way, the same on and off,
(Inching 1 button-press and hold the remote control button, the receiving 2 relays will be closed at the same time, release the remote control button, the receiving 2 relays will be released at the same time)
Description of product use effect
Equipped with a 2-button remote control-the A button controls the first relay, and the B button controls the second relay.
(Inching button 2-----Press and hold the remote control A button, the receiving relay 1 is closed, loosen the remote control A button, the receiving relay 1 is released, press and hold the remote control B button, the receiving relay 2 is closed and released Remote control B button, receiving relay 2 release)
Packing&Shipping
Title goes here.
Equipped with a 3-button remote control-------The A button controls the first relay, and the B button controls the second relay.
C key controls 2 relays to be turned on and off at the same time, always on and off.
(Jog 3 keys-----Press and hold the A key, 1 way to open, release the A key, 1 way to close, hold down the B key, 2 ways to open, release the B key, 2 ways to close, hold down the C key , 1&2 are turned on at the same time, release the C button, 1&2 will be turned off at the same time)
Interlock-----------With 2-button remote control-------The A button controls the first way to open, the B button controls the second way to open, there is always 1 way to open, and only 1 way open.
(2-button interlock----press the remote control A key once, the first way is on, the second way is off, press the remote control B button the second way is on, the first way is off
Equipped with a 3-button remote control-------The A button controls the first channel to open, the B button controls the second channel to open, and the C button to switch off 2 channels.
