High-power Remote Control 3000 m + Receiver Module Remote Wireless Transceiver Remote Learning Kit 433
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1990
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3000m High-power Wireless Remote Control Transmitter Handle Water Pump Remote Control 433MHZ Remote VibratorNegotiableMOQ: 1 -
Garage Door Opener Remote Laser Wifi 3000m High-power Long-distance Remote Control 433Mhz Learning Code HS1527 Wireless RemoteNegotiableMOQ: 1
-
High-quality 433MHZ Wireless Remote Control 1527 Learning Type 3000m High-power Long-distance Remote ControlNegotiableMOQ: 1
-
433mhz rf Transmitter and Receiver Module Rf Remote Control Module Kit Rf Remote Control ModuleNegotiableMOQ: 1
-
433.92Mhz Fixed Code Coded Wireless Remote Control Key With 2260 Chip + 8 Bit Coded SwitchNegotiableMOQ: 1
Product Description
Specification

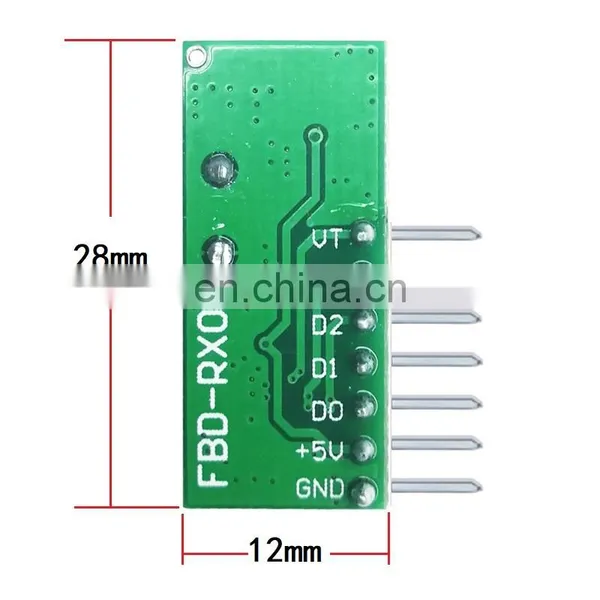

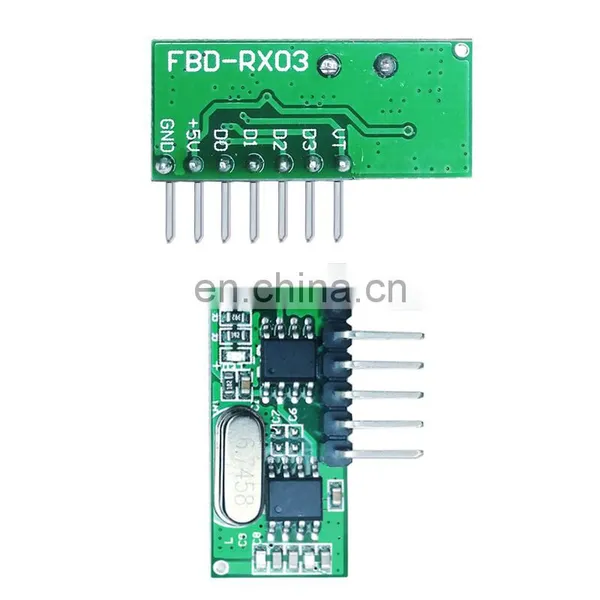

Model No. |
FBD3000-4RX03 |
Frequency |
315MHZ 433MHZ |
Voltage |
DC9V （Delivery does not include batteries） |
Carton Dimension |
135*42*23mm |
Product parameters
1. Working voltage: DC2.5V-5V
2. Working current: 3.7mA
3. Sensitivity: -108DBM
4. Rate: MAX 10 KB/S
5. Working mode: jog, self-locking, interlocking (freely convertible)
6. Module output: 4 CMOS level signals, which can correspond to 4 buttons of remote control "ABCD"
7. Receiver module can store remote control: 16
8. Support coding chip model: EV1527, PT2262, 2264, 2260 other customization
When the remote control button is pressed, the output of D0, D1, D2, and D3 is high level, and when it is not pressed, it is low level.
Clear and match the code: (Before switching the mode, clear the code first)
1, clear function - press the learning button (not let go) "KEY" 5 seconds, after the LED indicator goes out, let go, wait until the LED indicator flashes 3 times and then go out, start to clear all the remote control code data in the memory, it means The clear function is complete.
2, the code function - press the learning button (jog mode) "KEY", the LED indicator lights up to indicate that the microprocessor enters the learning pair code state, press the matching wireless remote control button, the LED indicator flashes 3 After the second time, the code is successful. (The learning button is clicked once for the jog mode; press 2 times for the self-locking mode; press 3 times for the interlock mode; press 4 times: 1, 2 for jog, 3, 4 for self-locking; for 5 times: 1 2, jog, 3, 4 interlock; press 6 times: 1, 2 self-locking, 3, 4 interlock; press 7; 1, 2 interlock, 3, 4 interlock.) The wireless remote control switch can store 16 different remote controls and can set different working modes. (This is a one-key pair code, the program will automatically assign the data bits)
3. Pair code test - After the code is successful, when the remote control button is pressed, the corresponding D0, D1, D2, D3 output is high level.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
