Product Description

Sewage/Drainage/tank inspection camera


Brief introduction of PI-V1 tank inspection camera

Using Range: Diameter 100-2000mm pipeline inspection, 0.5-60m Measurement range
Features: Waterproof level IP68, national certificated explosion proof
Functions: The level of 57.8 degrees (wide angle) 1.7 degrees (hyperopia), suitable for watching the inside condition
Lighting: Powerful gradually lights, suitable for all kinds of working conditions
Battery: Built-in 25.2V rechargeable lithium battery
Design: Mounted control device, system setup, storage functions together, easily to control
Other function: Camera head could be controlled by controller to zoom and lighting gradually, tilt, storage, system setup, laser ranging, on-screen display

Parameter
Model
PI-V1
Controller
Chassis
Industrial-grade integrated chassis, integrated display storage unit, equipped with ergonomic strap.
Display
7.0 "bright LCD screen, 800 * 480 screen resolution
Language Interface
Simplified Chinese, Traditional Chinese, English interface optional
Storage
32GB SD card, MPEG4 encoding format
Snapshot
Can quickly capture, save defect images
Playback
Can browse, play back video files or pictures
Keyboard
Through the keyboard to enter text information, superimposed display and saved in the video screen
Control
Focus, zoom, lighting, lens rotation
Battery
Built-in 25.2V rechargeable lithium battery, the capacity is 13000mAh, continuous working time ≥ 8 hours, to provide power instructions. Configuration 220V AC adapter, can be directly powered or charged
Explosion protection
Explosion-proof certification
Interface
Video output, power, cable interface
Size
275mm * 215mm * 100mm
Weight
About 2.5kg

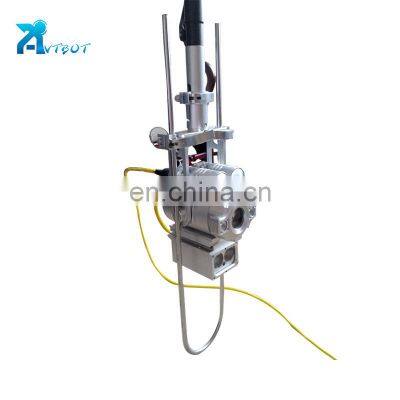

Camera head
Applicable environment
Urban rainwater, sewage, confluence pipeline and urban water supply, industrial wastewater and other pipelines
Applicable diameter
100mm- 2000mm
Operating temperature
-20 ℃ ~ 50 ℃
Lighting
2 bright LED lights, 13000cd, straight pipe inspection length ≤ 60m, using condenser, flood light double reflection type, warranty 50000 hours, the other can be equipped with auxiliary lighting source
Image sensor
Color 1/4 "CCD
Image resolution
PAL standard, 795 (H) X596 (V), ≥ 46 million pixels, the number of lines 560HTVL
Camera viewing angle
The level of 57.8 degrees (wide angle) 1.7 degrees (hyperopia)
Zoom focus
432: 1 (36: 1 optics, 12: 1 number) Zoom, auto or manual focus
Sensitivity (minimum illumination)
0.1LX
Standard joystick
Material
Carbon fiber material (compression performance is 10 times the ordinary steel)
Length
Nested telescopic design, cable wear design, strong fixed joints, after stretching the total length is 7m.
Extension rod quick connection design, can be extended to 40M
Support bar
Material
Lightweight material
Length
0.8m
Advantages
Integrated probe height micro-adjustment elastic device, with a rubber buffer ball in the end.
Unique removable design, can be directly loaded into the bag.
Cable
Protection
Reinforced multi-core cable, with a metal telescopic jacket
Length
Standard length of 10 meters, can be customized lengthened
Package
Strength
High-strength integrated packaging for engineering
Portable
With a rod and wheels, easy to carry
Weight
Contains standard camera probe, armored cable 10M, integrated main controller (standard type), engineering strap and tools, the total weight 12.5kg
Size
510mm * 430mm * 240mm
Standard joystick package
Weight
Rod package (including par 1m * 4, extension rod 1m * 3 section, support rod), total: 3.5Kg
Size
1450mm * 200mm * 90mm, can be placed in the car trunk;
Portable
Strap design, can be back, can be mentioned, light and easy to carry.
Laser ranging module
Distance measurement accuracy
± 0.5m
Measurement range
0.5m ~ 60m
Display
Real-time high-speed measurement, ranging results displayed in the video screen
Optional
PipeSight Pipeline Detection Video Interpretation Report Software
Packing & Delivery

Safe Packing.

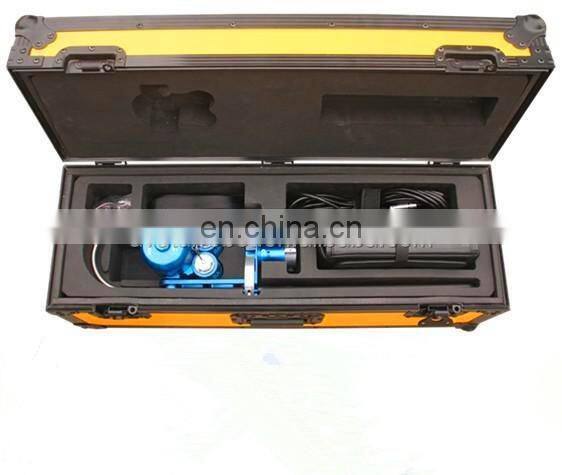

ABS flight case .

    Fast delievery.
    DHL, FedEx and UPS.

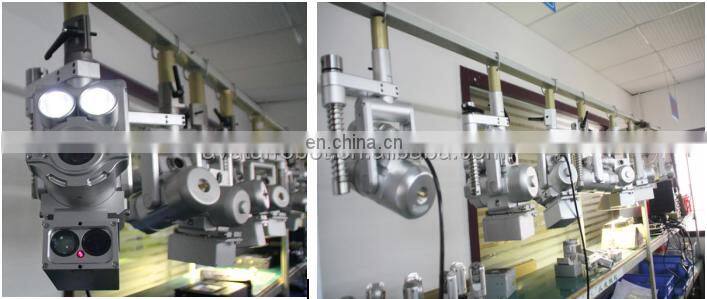

Test
About US
Certificate
Our Service

1.Professional technical support pre-sale, sale and after-sale.
2.Your problems can get feedback in 8 hours and be solved in 24 hours.
3.Machine can be customized as per your requirement.
4.One year quality warranty.
5.Training: operation manual and DVD operation video, overseas installation is also available.
6.Spare parts are available in our factory at cost price for former customers.
