Professional manufacturer directly sell AVT-14T Crawler robot chassis commercial robot can add robotic arms and cameras
1. Introduction:
AVT-14T is a general crawler robot chassis. It adopts Christie + Matilda four sets of balanced suspension, very good for suspension with heavy load. Meanwhile, designed with 8 shock absorbers and unique impact energy absorption, greatly reducing impact from all terrains. It is especially suitable for mobile robots with stability requirements, such as: investigation, inspection, exploration, firefighting and other special robotics industries.
2. Application:
1. Exploration of inspection
2. The rescue vehicle
3. Scientific research and education
4. Fire control security guard
5. Special photography
6. Special transport
3. Advantage:
1. 200mm ground clearance, excellent trafficability.
2. 8 pairs of shock absorption design, suitable for complex terrain smooth running.
3. Since the tension induced wheel design, ensure best crawler firmness in real time.
4. Specification:
|
Item |
Data |
Item |
Data |
|
Dimension |
1416*800*544mm |
Inner Space(without Battery) |
1000*380*280mm |
|
Chassis Self Weight |
150kg |
Load Weight |
150kg |
|
Ground Clearance |
180mm |
Speed |
7.5km/h |
|
Max. Span |
400mm |
IP Grade |
IP64 |
|
Max. Gradeability |
30o (able to climb stairs) |
Vertical Span |
230mm |
|
Track Material |
Rubber(Embedded Kovlar Fiber) |
Body Material |
304 Stainless Steel/ Alloy Steel Plate/Aluminum/Poly mer Material |
|
Vibration System |
Christie*8 damping |
Track Width |
150mm(Snow Tire) |
Electrical Parameter:
|
Item |
Data |
Item |
Data |
|
Voltage |
DC48V |
Motor |
48V Brushless DC |
|
Total Power (Max.) |
2000w*2 |
Standby Power Loss |
≤50w |
|
Braking Type(Optional) |
Electric Brake |
Lock Voltage |
DC48V |
|
Control Distance |
800m(Visual) |
Control Channel Number |
9T(Used 3T) |

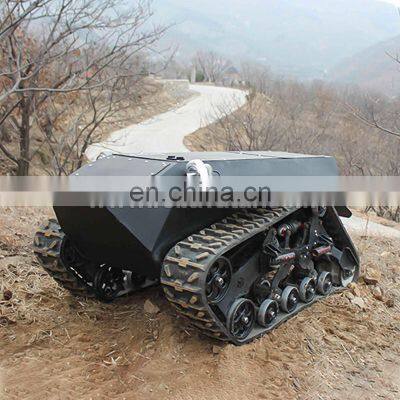

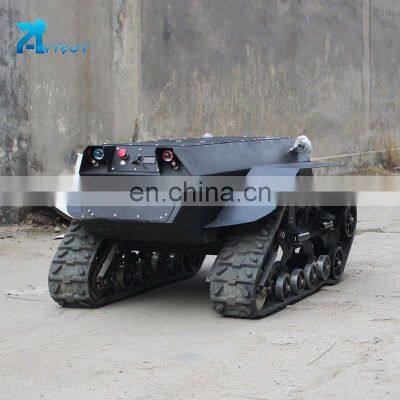

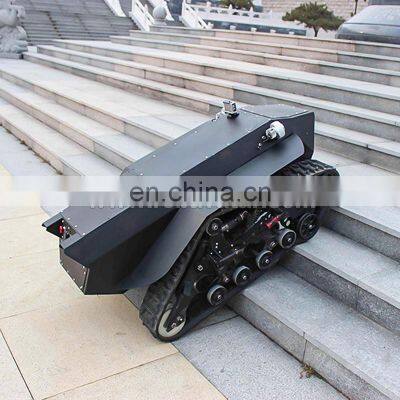

5. Picture show:
Packing: Wooden case .
Delivery way: By express, by air or by ship.
