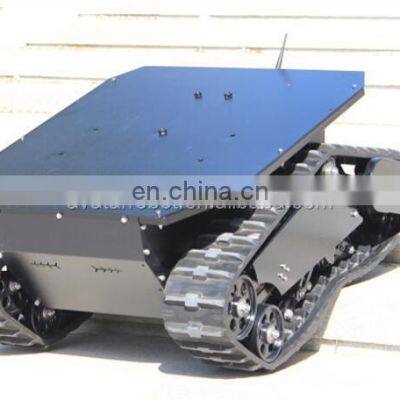

Rubber Tracked Robot Chassis Platform for Patrol Robot in Electricity Power Station photo-2

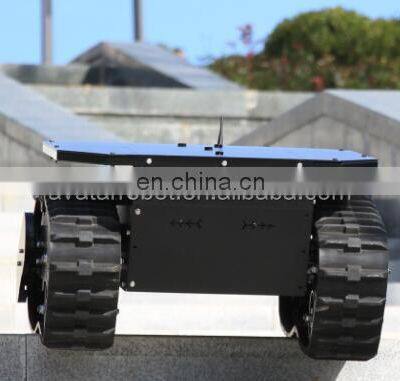

Rubber Tracked Robot Chassis Platform for Patrol Robot in Electricity Power Station photo-3

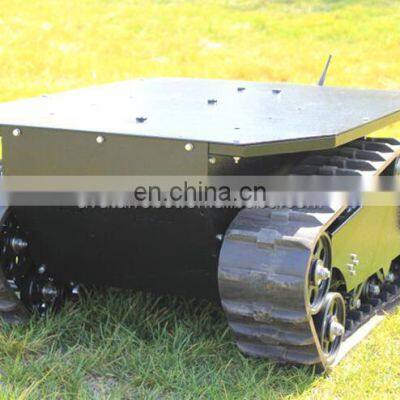

Rubber Tracked Robot Chassis Platform for Patrol Robot in Electricity Power Station photo-4

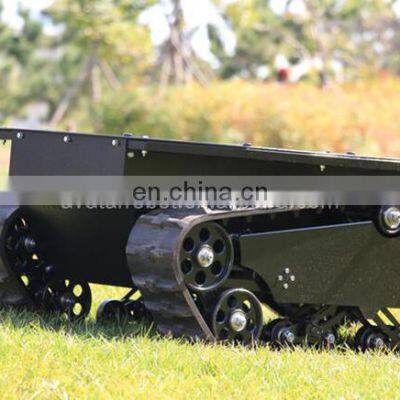

Rubber Tracked Robot Chassis Platform for Patrol Robot in Electricity Power Station photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1999
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Zhengzhou Ledy Optical-Electrical Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Applications

AVT-800TS Rubber tracked robot chassis platform for patrol robot in electricity power station

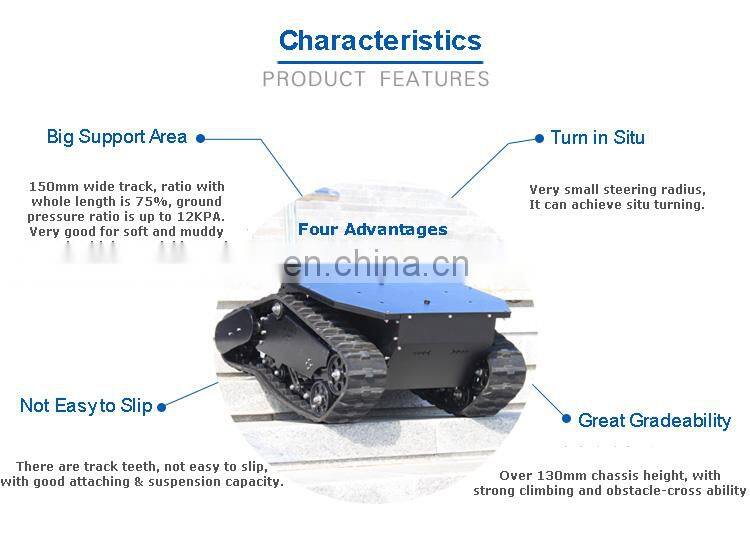

Main Features of AVT-800TS Rubber tracked robot chassis platform

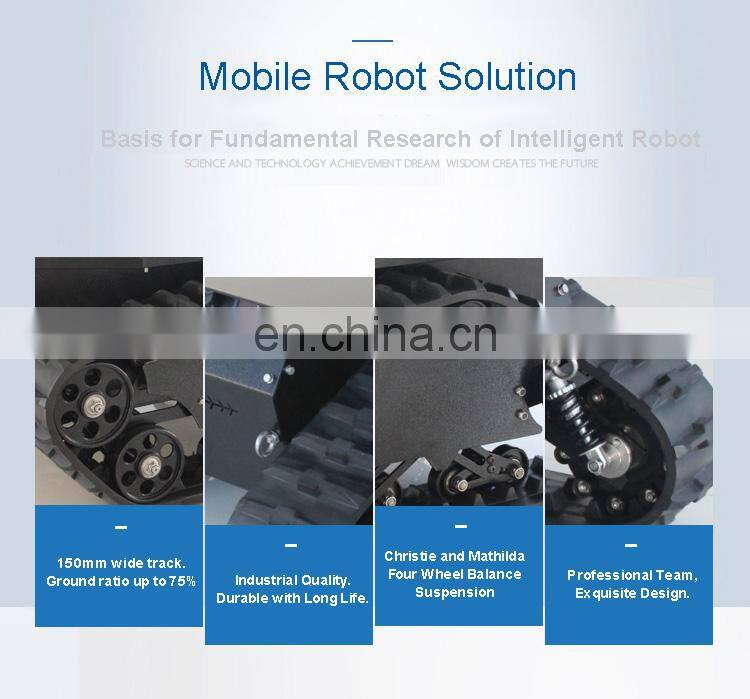

1.The support area is very large, and percentage that 150mm crawler belt contacting ground reaches up to 75%, ground pressure is 12KPA, very suitable for soft ground, muddy ground or other complex ground.
2.Small turning radius helps realize pivot steering.
3.Track grousers on the crawler belt can help to resist slipping; excellent traction and adhesive performance helps to exert greater traction pull.
4.The height of chassis is more than 130mm and it excels in climbing slopes, stairs and surmounting obstacles.
5.The shell of car body is made of 304 stainless steel, which is solid and durable with outstanding protective properties. All of these features have won wide popularity from our clients.

Specifications
Specifications of AVT-800TS Rubber tracked robot chassis platform
Body Material
Steel Pipe
Track Material
Quality Rubber Embedded with Kovlar Fiber
Motor
48V Brushless DC Motor
Suspension System
Christie and Mathilda Four Wheel Balance Suspension
Vibration Reduction
*6 Independent Vibration Absorbers on Both Sides
Surface Treatment
Spraying Plastics/Partial Spray Painting
Max. Obstacle-Surmounting
220mm
Dimension
1020*790*440mm
Self Weight
180KG
Load Weight
260KG
Height of Chassis
130mm
Rated Torque
125NM
Operating Velocity
0-1.6m/s
Max. Angle of Climbing
40o (able to climb stairs)

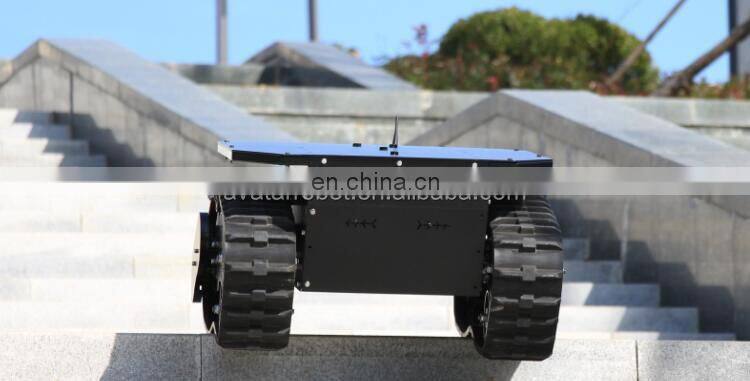

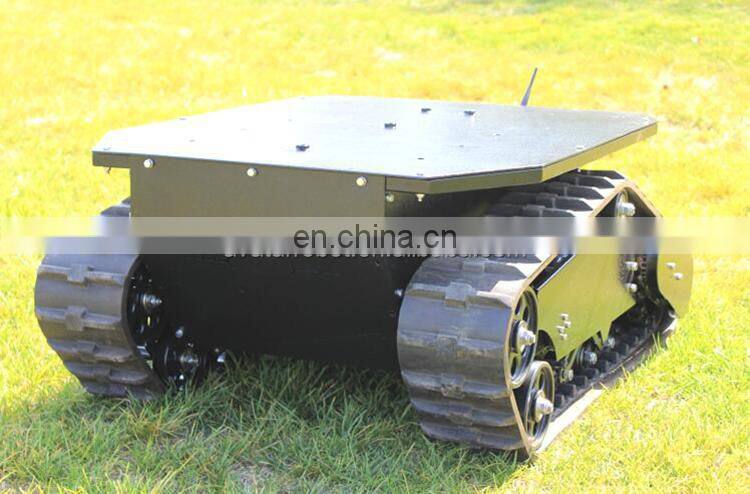

Detailed Images
