75m deep underwater rov drone with camera

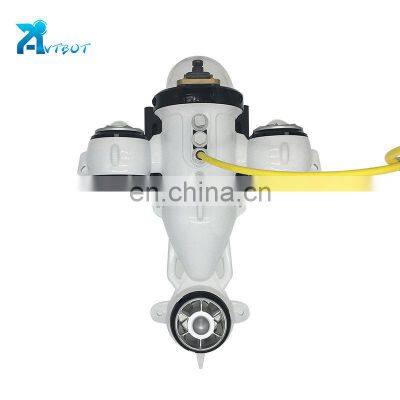

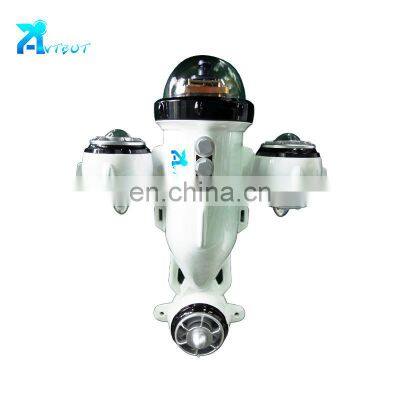

AVT-75 deep underwater rov drone with camera
Brief Introduction:
AVT-75 underwater rov drone is a miniature underwater observation type unmanned aerial vehicle, with simple operation, compact structure, flexible movement and so on. It’s equipped with underwater propulsion, easy disassembly, strong exercise performance. You can use mobile phones or tablet PCs and other wireless terminals to achieve the control of the robot,then get underwater images, easy to operate.It can be used 220V AC power supply or equipped with external battery pack, easy to carry.
Aplication
AVT-75 Underwater Drone Camera can be equipped with small manipulators, water quality sensors and other plug-in equipment. It is widely used in underwater entertainment, pipeline inspection, sea cucumber farming, diving salvage, underwater (rivers, lakes, oceans, etc.) exploration, hazardous area investigation and other applications.
Parameter
ROV | |
Dimension | 416mm*365mm*210mm |
Working depth | 75m |
Weight in air | 2.8kg |
Route speed | <3knots(still water) |
Move | 3axis |
Sensor | |
Course | 0.1degree resolution,2degrees accuracy,1degree stability |
Depth | +/-0.1m |
Extracurricular temperature | 0.01degree resolution,0.8degrees accuracy |
Attitude, roll, pitch | 0.1degree resolution,2degrees accuracy |
Cabin environment + leaking | Temperature, pressure, humidity, leak monitoring |
Controller | |
Remote device | Bluetooth remote control handle, tablet computer |
External interface | 1Network port, 1USB(5V/1A) |
Motor System | |
Single propeller positive thrust | 0.7kg |
Forward advancing | 1.4kg |
Observation system | |
Camera | 1piece |
Resolution | 1920*1080 |
Focal length | 3.6mm |
PTZ activities range | Level:-55-55degree or Vertical:-55-55degree |
Headlamp | 2*6w(LED) |
Luminous flux | 1200LM |
Power input | |
AC power supply | 220V/1A |
DC input | 24-48V (Battery pack input 24V) |
Package(optional) | |
20 inch suitcase | 550mm*350mm*240mm |
Inside contains the main body, remote control, control box | |

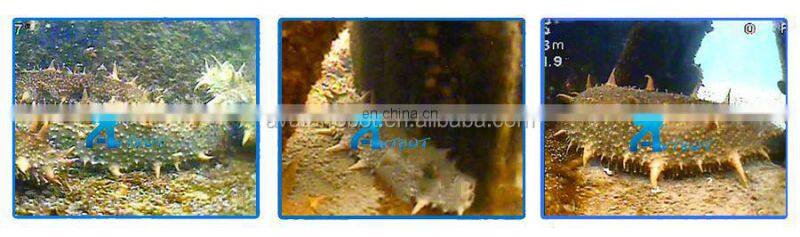

Working Site of viewing underwater condition:
After-Sales Service:
1. Warranty: we grant our clients 1-year warranty for our clients since delivery. During this year, if there is any problem or broken part, we will offer you service freely, not including delivery cost. ^_^
2. Operation and Installation Training: we will offer you operation manual in your language after purchasing, ensuring you will operate it perfect.
3. Maintenance: Any problem you have during operation, we will answer in 12 hours in working days, 24 hours in working days and 48 hours during national holiday.
4. Spare Part: You will get spare parts at cost price after purchasing our machines. Whereever and whenever you want, we will send you quickly as required.
