PIW-R500 Automatic 500m Deep Water Well Borehole Inspection Borewell Camera

Brief introduction of PIW-R500 borewell camera:

1. PIW-R500 is a new design Rotary Probe camera specializes in well/borehole inspection.

2. It provides clear video inspection services for well depth from 100m-500m ranges.

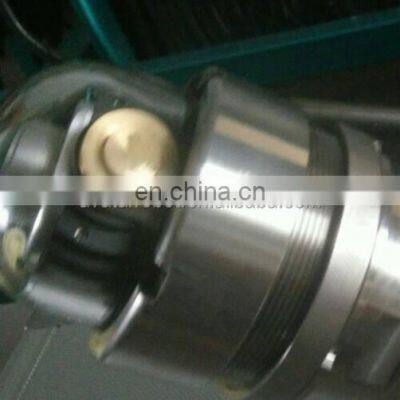

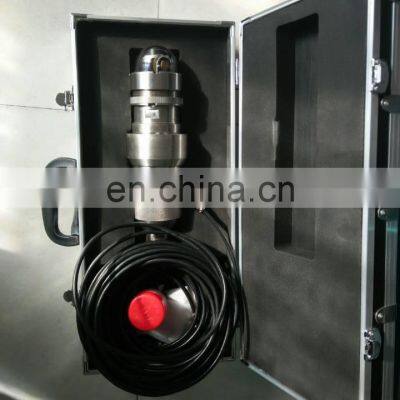

Rotary Camera

* Camera: Φ90mm
* Camera Material: 304 stainless steel
* Camera Window: Explosion-proof optical acrylic glass
* Camera Pixels: CMOS camera, 1200 TVL
* Lens Angle: Pan 360°, Tilt 180°
* Camera Light: front 8 bright light bulbs, rear 16 LED light source light beads
* (Dimming and focusing optional: manual control the direction of the camera downhole, Azimuth, light source brightness and focal length on the ground, 5 dimming)
* Probe Pressure: Pressuretight 15MPA, the maximum pressuretight depth up to 1500 meters
* High elasticity stainless steel centralizer.

Control Box

* Aluminum Control Box(ABS is optional): aluminum panel, size: 300 * 400 * 260mm
* Voltage Input: 220V
* Depth Interface: connect the depth sensor
* Probe Interface: connect the probe, transmit video and power
* Data Interface: can create well number/position automatically, and calibrate depth automatically.
* Video System: standard 8G, SD card recording system, max. support 32G
* Depth Return to Zero: return depth to zero before logging to ensure accuracy.

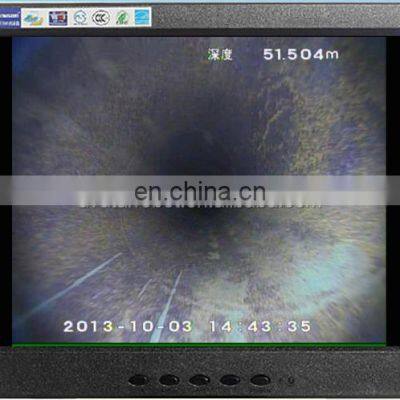

* Display Monitor: 7 inch (12 inch optional), high light LED monitor, visual outdoor.

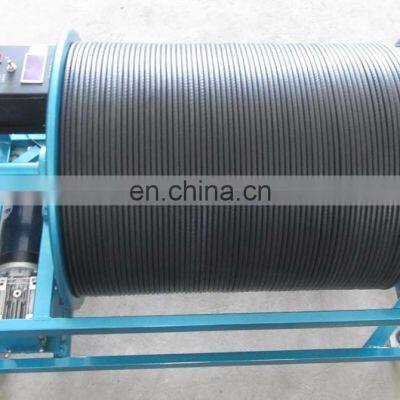

Winch

* Manual/Automatic Winch: electric mode is available when 220V power input; battery is also available. When power shortage or too long logging time, only the main control box has power supply, winch will switch to manual mode.
* Main Control Box Tray: stainless steel tray, removable, easy to transport
* Down Pulley: down pulley with depth counting function, need to connect the data cable to the main control box
* Pulley Support Rod: retractable pulley support rod, detachable, it has a hydraulic bar at the connection part with the winch,to prevent rod shaking when logging.
* Depth Counting Function: depth accurate to 0.05 meters, If there is mistake, you can adjust the depth.
* Video System: SD card recording system, the maximum support 16G
* Depth Zero: Please set the depth to zero before logging.

Monitor

* 12”: 291x251x48mm
* Aspect Ratio: 4: 3
* Contrast: 500: 1
* Brightness: 1000cd/m2
* Resolution: 1024x768
* Power: DC 12V
* Color System: PAL / NTSC / SECAM

Depth-Counting Cable

* Material: modified polypropylene
* Pulling Force: 280KG
* Outer Diameter: 8.2mm
* Temperature: 50°
