Light Weight Lidar For Robot Cleaning Machine
Commercial Use:
Smart household products, cleaning robots, etc..
Features:
1. Scanning speed: 5000 times/ second
2. 6m radius ranging

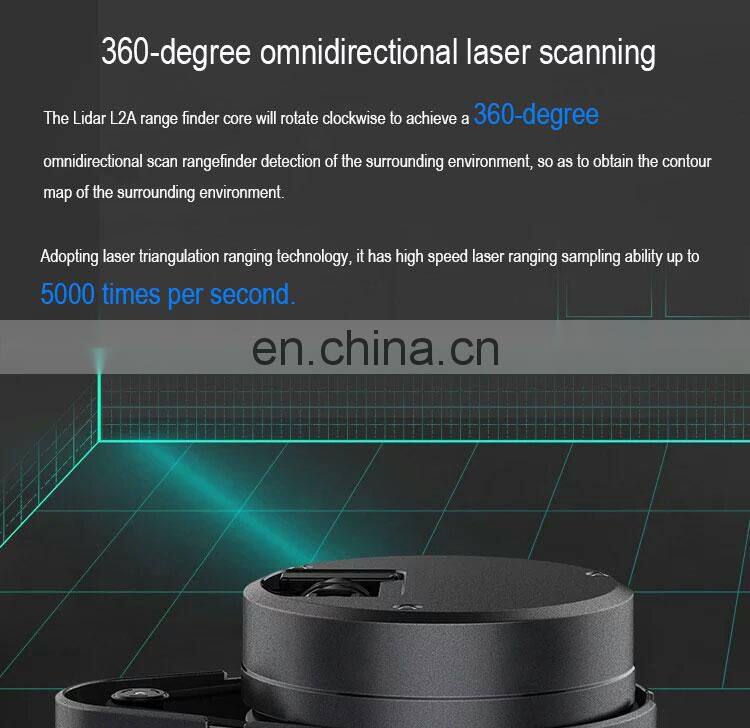

3. 360-degree omnidirectional laser scanning.
Parameter:
|
Measurement |
0.13-6m(80% reflectance) |
Voltage |
5v |
|
Sampling |
2k/s |
Starting Current |
500mA |
|
Scanning Frequency |
6.2Hz |
Working Current |
500mA |
|
Angular Resolution |
1 |
Dimension(mm) |
107*75*50 |
|
Laser Wavelength |
780nm |
Weight |
173g |
|
Laser Power |
3mw |
Laser Class |
0-1 |
|
Accuracy |
2% |
Working Temperature |
0-45 |
|
Communication Interface |
UART(TTL) |
Storage Temperature |
(-20.60) |
|
Baud Rate |
115200bps |
Working Illumination |
<1000lux |
|
Power consumption |
1.5w |
Working Rh |
<90% |
Communication and interface:
|
Working mode |
8 bit data, 1 bit stop bit, no check |
Baud rate |
230400 |
|
Output low level |
<0.4 |
Output high level |
2.9-3.5 |
