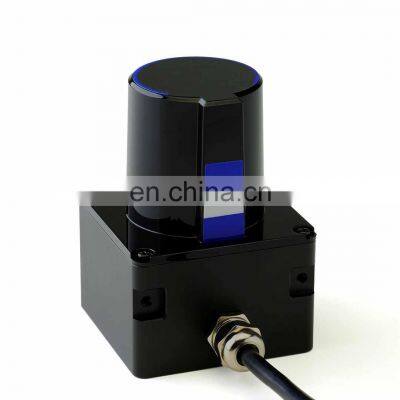

20m Radius Lidar Sensor For Outdoor Robot Navigation System

Commercial Use:

Shopping mall service robots, accompanying robots, rescue robots, etc.

Commercial Use:

LIDAR L4 can be used in various application scenarios such as industrial precise and rapid surveying and mapping, game interaction, assisted positioning, outdoor drones, and AGV obstacle avoidance.

Features:

1. Industrial-grade lidar scanner

Anti-sunlight interference 30000 times/second TOF laser ranging technology IP65 protection.

2. TOF time-of-flight ranging technology

Using TOF (Time of Flight) time-of-flight ranging technology to ensure that the radar measurement accuracy will not change with distance changes. When measuring long-distance objects, the measurement accuracy is still accurate and stable.

3. Anti-sunlight, can be used indoors and outdoors

LiDAR can effectively avoid the interference of ambient light and sunlight, realize stable ranging and efficient mapping of indoor and outdoor scenes, and meet the application requirements of larger outdoor scenes.

4. Fully enclosed housing

The fully enclosed outer cover can effectively protect the internal rotating mechanism, avoid external interference to the greatest extent, ensure a stable working environment, and meet diversified industrial scene applications.

5. High efficiency ranging engine

LiDAR L4 can achieve a 270° scan within a 20m radius of a 2D plane, with a sampling frequency of up to 30KHz, and accurately output the plane point cloud map information of the space where it is located, which can ensure the composition quality of the robot when moving at high speed.

6. Comply with FDA Class 1 laser safety standards

In order to fully ensure the safety of the product to the human body and pets, a low-power infrared laser transmitter is used as the emitting light source and driven by modulated pulse mode. The laser only completes the emitting action in a short time, which meets the FDA Class 1 human body protection level

7. Network port connection, breaking the distance limit

LIDAR L4 is connected through the network port. After the power is turned on and the interface box is connected to the computer/switch through the network cable, it can communicate with the laser radar. The data transmission is not limited by the distance, which expands the field of use of the product.
