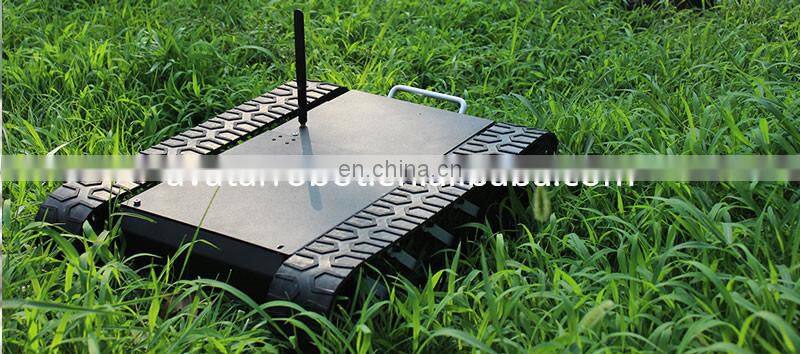

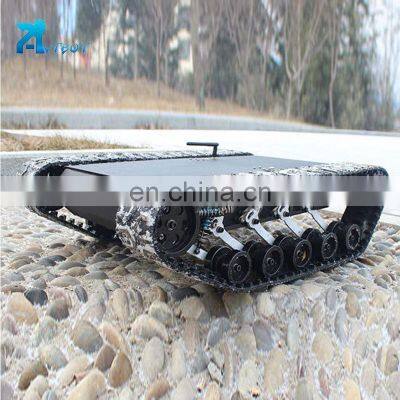

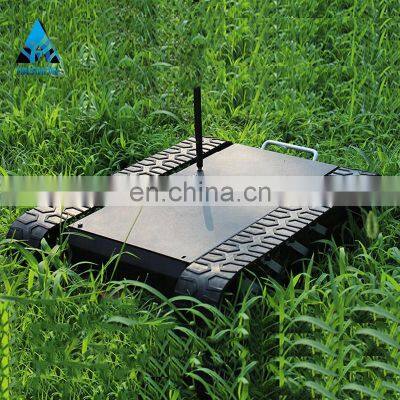

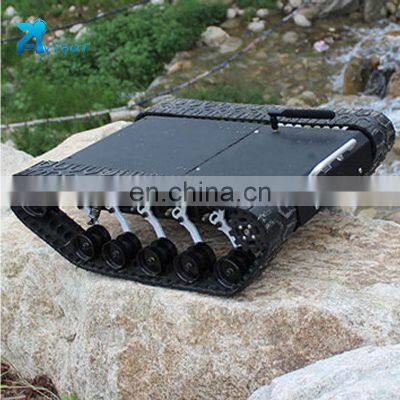

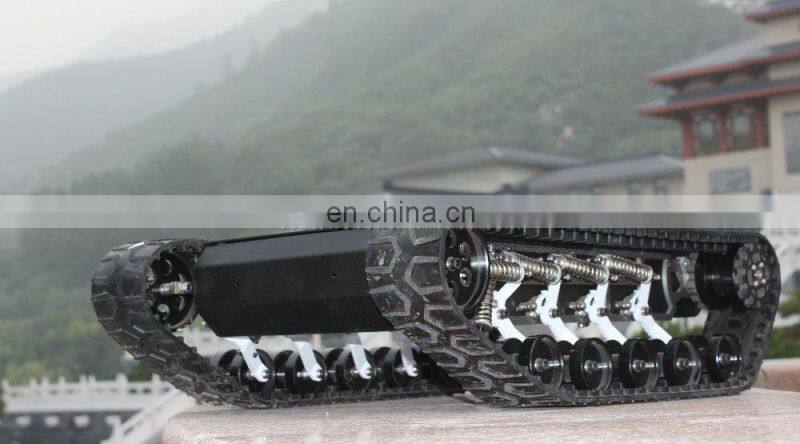

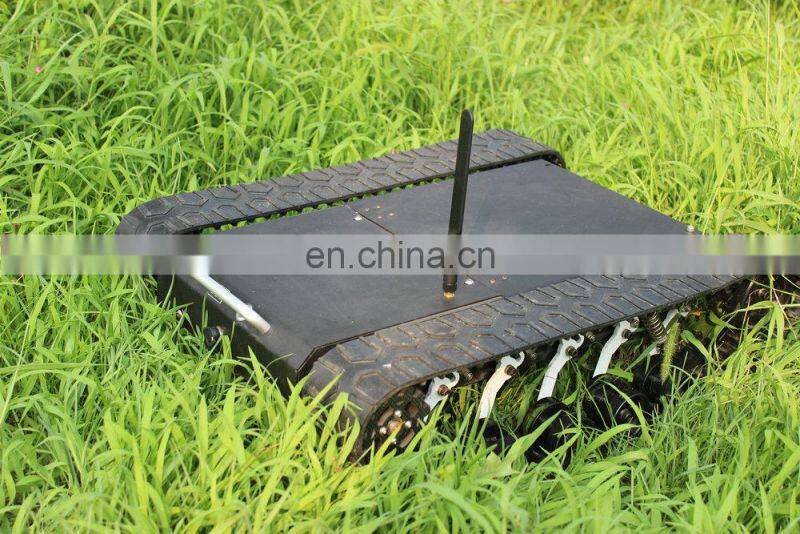

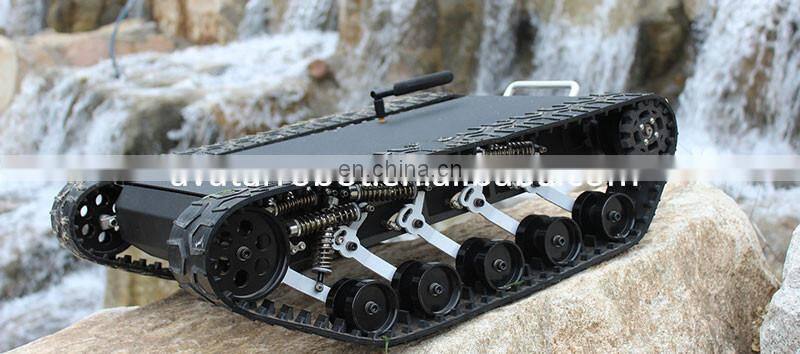

Light Weight Scientific Research Robot Chassis
Introduction:
AVT-6T meets the small reconnaissance robot off-road performance and stable performance. With 10pcs of dampers and specially designed tread, it’s especially suitable for all kinds of camera type of robot.
Application:
1. Exploration of inspection
2. The rescue vehicle
3. Scientific research and education
4. Fire control security guard
5. Special photography
6. Special transport
Features:
1. The shell of car body is made of 304 stainless steel, which is solid and durable.
2. Christie * 12 shock absorption, more stable.
3. Superior grip, perfect obstacle-crossing performance.
Specification:
|
Item |
Data |
Item |
Data |
|

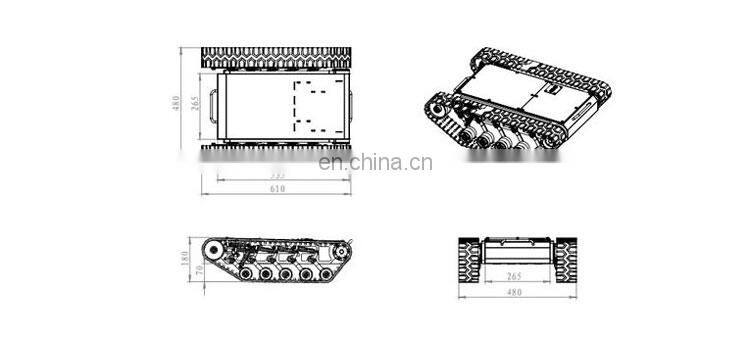

Design Size (mm) |
600 * 440 * 170mm |
Internal Size (Excluding Battery) |
260 * 270 * 80mm |
|
Chassis Weight |
15KG |
Running Speed |
0 - 5km / h |
|
Ground Clearance |
70mm |
Degree of Protection |
IP54 |
|
The Biggest Leap |
100mm |
Design Load |
15KG |
|
Maximum Climbing |
30 ° (Can Climb Stairs) |
Span Vertically |
100mm |
|
Track Material |
Rubber (Kevlar Embedded) |
Track Width |
80mm |
|
Suspension System |
Christie * 12 Shock Absorption |
Body Material |
304 Stainless Steel / Alloy Steel / Aluminum / Carbon Fiber |
|
Surface Treatment |
Black Spray (Matte) |
Drive Wheel Diameter |
70mm |
|
Rated Torque |
6.6N · M |
Transmission Ratio |
10 |
Electrical Part Technical Parameters
|
Voltage |
DC24V |
|
Total Power (Max.) |
400W |
|
Brake Type (Optional) |
Electric Brake Type |
|
Encoder (Optional) |
1000-2500 Lines |
|
Remote Control Distance |
800m (Visual) |
|
Motor Selection |
DC Brushless Motor |
|
Standby Power Consumption |
≤ 50W |
|
Braking Voltage |
DC24V |
|
Drive Model |
2435 |
|
Number of Remote Control Channels |
9T (3T Used) |
