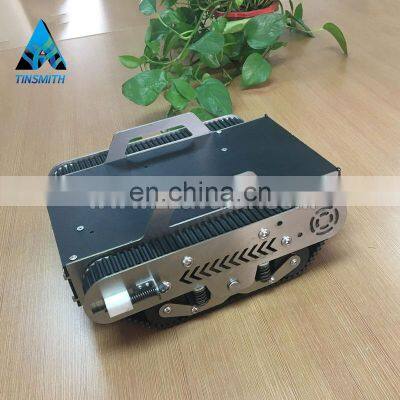

Small Size EOD Robot Platform For Secondary Development

Application:

TinS-3 is widely used for secondary development of robotic products. You can build on your own robot kit with it. With small size, it is especially working well in small space, with adding-on inspection camera, robot arm, telescopic rod, cleaning brush, etc.

Major application fields:

1. Robot competition in colleges and universities

2. Lab robot research

3. The second development of robotics

4. Pipeline detection robot, power station detection robot, EOD robot secondary development, etc.

Advantages:

1. Small size 300*290*120mm, light weight 6.5kg, big loading capacity 60kg, especially good to work in small areas.

2. Rubber Track: with good ground adhesion, all-terrain chassis.

3. Patent Suspension System: 1) up and down fluctuation suspension system. 2) center of gravity shock absorption suspension. Our unique design.

4. Guiding Wheel: self-tension, automatic adjust, ensuring timely tension and running.

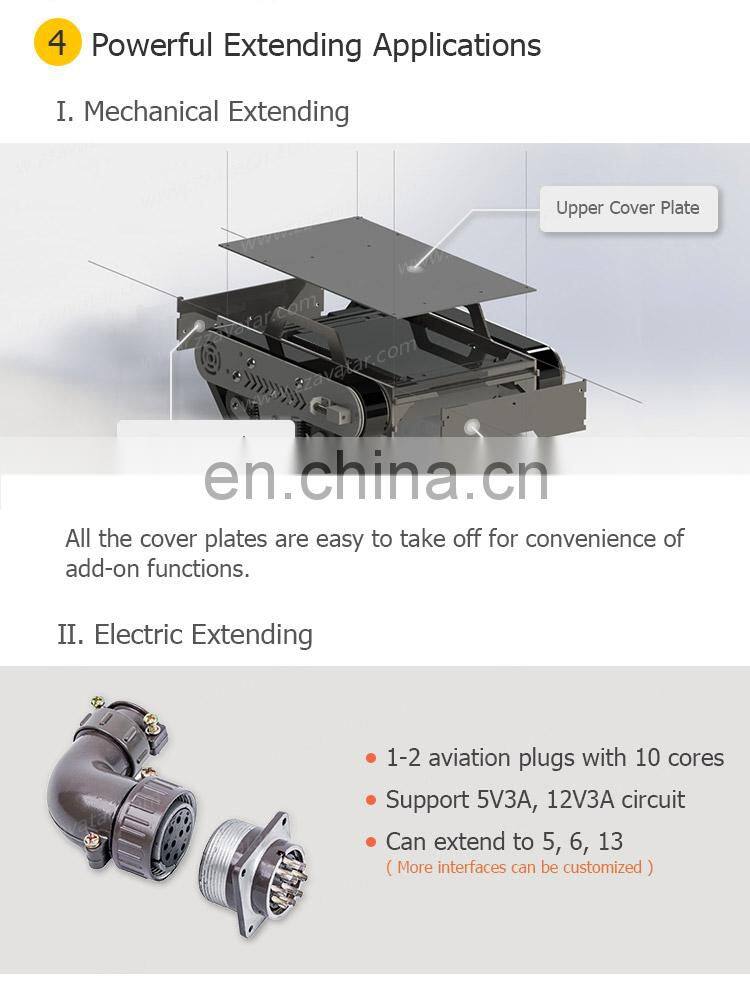

5. Separate Self-control Circuit and Extending Circuit: 1) mechanical extending with detachable front/rear/and upper cover plate, greatly reducing customizing risk. 2) Electrical extending with 5V3A, 12V3A circuit for 5/6/13 extending circuit.

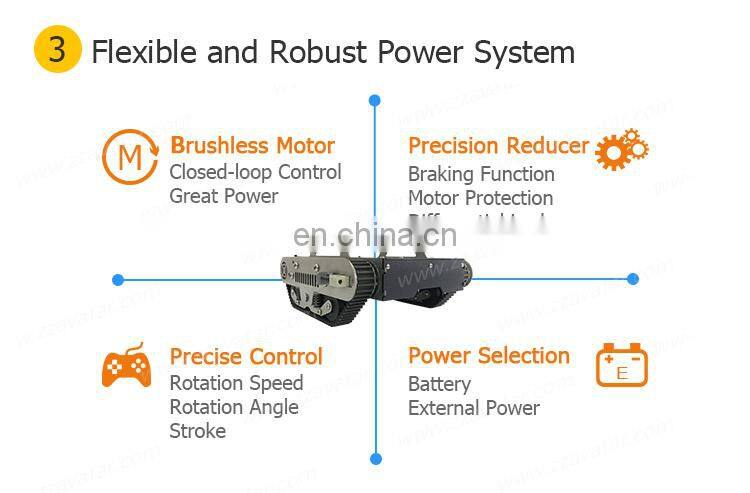

6. Power and Control: 1) battery and wireless control: support 13-Way Servo Control Signal and 4-Way active control signal. 2) wire mode: support 4-Way active control signal, with one XY lever and 6-way servo control lever.

7. Optional Modular: no-map navigation, position tracking lock, etc.

Specification:
