Hot selling Municipal use upgraded spray robot TinS-17 Robot Chassis lawn mower machine with good price
- 1000 per Month
- T/T Credit Card
- Farm Use Multi-functional Platform Tins-13 Robot Chassis Lawn Mower Robot Upgraded spray robot CE Certificate
- Mobile RTK Robot used for Educational Innovation Robot Platform
- ROS Support Robot undercarriage track chassis All Terrain Military Robot Platform
- Export to UAE commercial robot brushless motor AVT-W9 wheeled robot chassis unmanned delivery vehicle with advantage in speed
- Negative pressure cleaning air duct cleaning robot with dust collector
- round and rectangular air ducts cleaner vent pipe cleaning robot for air conditioner
Product Description
Hot selling Municipal use upgraded spray robot TinS-17 Robot Chassis lawn mower machine with good price
1. Introduction:

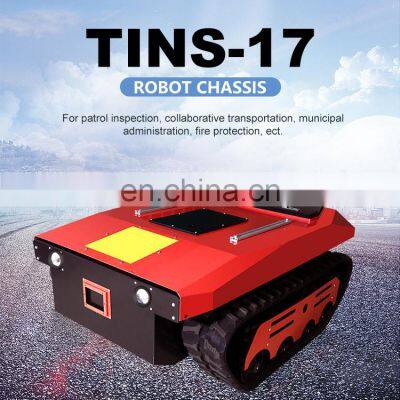

As a multi-functional platform, TinS-17 can be equipped with a variety of equipment, such as camera, water gun, etc., which is widely used in patrol inspection, collaborative transportation, municipal administration, fire protection and other industries.
2. Application:
It is widely used in patrol inspection, collaborative transportation, municipal administration, fire protection and other industries.
We also produce customized product applications: Fully automatic lawn mower, intelligent agricultural machinery, Fruit Picking Transport Robot ect.
3. Advantage:

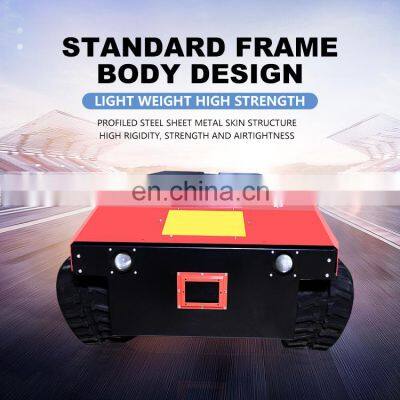

1. Standard frame body design, light weight and high strength. The profiled steel and sheet metal skin structure ensures the rigidity and strength of the machine and the airtightness of the machine body.
2. The expansion platform on the machine adopts T-slot and nut sliders, which can carry a variety of equipment.

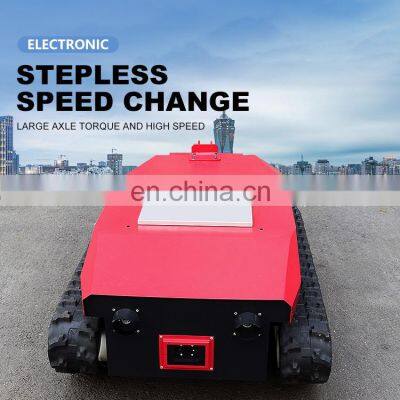

3. Electronic stepless speed change, large axle torque and high speed.
4. Externally expand the power output and can also be used as a mobile power station.

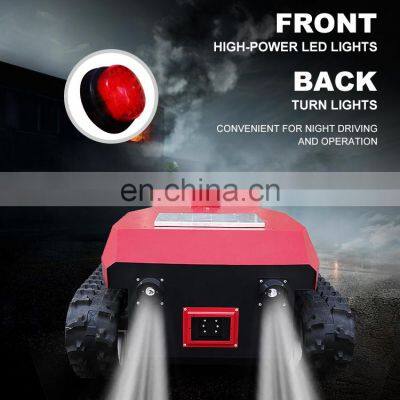

5. Front high-power LED lights and back turn lights, convenient for night driving and operation.
6. Matilda suspension system can buffer the impact of steps, fit the undulating terrain, has an excellent low-speed shock absorption effect. The two wheels share the absorbing spring, with less wearing parts and high reliability.
7. Optional generator and lithium battery power source.
8. Speed closed-loop and displacement closed-loop control can realize precise autonomous navigation.
9. Power conversion module with multiple protections for overvoltage, overcurrent, and undervoltage.
10. 3 control modes: Handheld remote controller mode (standard), Visual control box mode (optional), Network control mode (optional).
4. Specification:
Item |
Data |
Item |
Data |
Dimension |
1650*1170*660mm |
Speed |
2.5-12km/h (<60km/h high speed can be customized) |
Self Weight |
290kg |
Designed Load |
300-700kg |
Waterproof |
IP65 |
Rated Torque |
300-1920NM |
Track Width |
230mm |
Reducer Efficiency |
65-85% |
1:10-1:40 |
Suspension System |
Matilda |
|
Motor |
(1.5-5.5KW)*2, (11kw*2 can be customized) |
Climbing Ability |
≤30°(can climb stairs) |
Motor Rated Speed |
1500r/min |
Maximum Span |
740mm |
Remote Control Distance |
Open area 800m-3000m |
Over-Obstacle Capacity |
180mm |
5. Picture show:
Packing: Wooden case or as customer requirement.
Delivery way: By express, by air or by ship.
Zhengzhou Defy Mechanical & Electrical Equipment Co,. Ltd.
Our company is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
1.Does your machine have great quality and favorable price?
Sure,we offer good quality and cheap price products.
2.How is your service?
We offer professional pre-sales,in-sales and after-sales service for customers.
Any of your tiny need will be satisfied in 24 hours.
3.How about the MOQ?
1 set.
4.What's the warranty of machine?
One year warranty for main machine.
5.When the machine can be shipped?
Within 3-5 working days after receiving full payment.
