Home > Products > Ungrouped > High Stable Rubber Track Undercarriage AVT-W9D Wheeled Robot Chassis Food Delivery Robot With Explosion-proof Tires

High Stable Rubber Track Undercarriage AVT-W9D Wheeled Robot Chassis Food Delivery Robot With Explosion-proof Tires

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

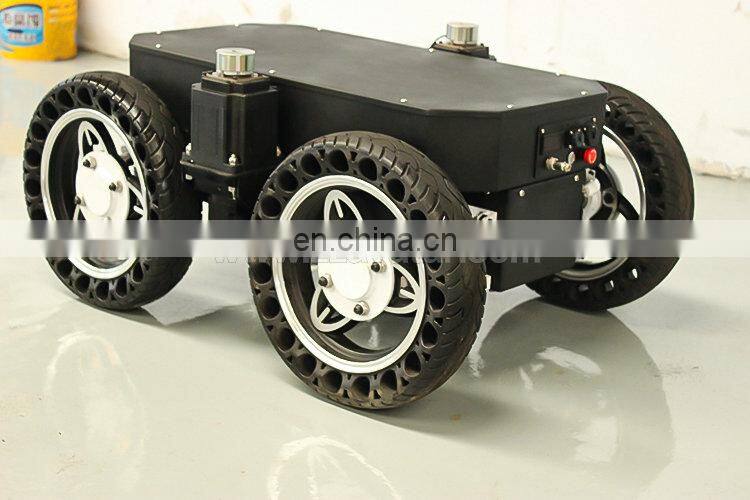

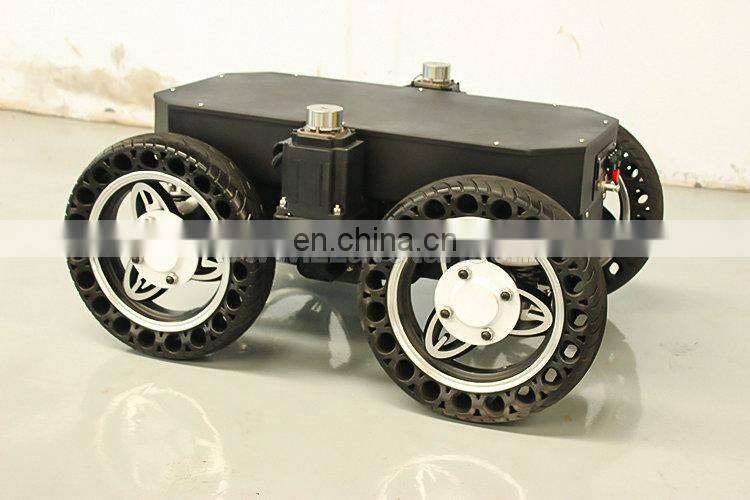

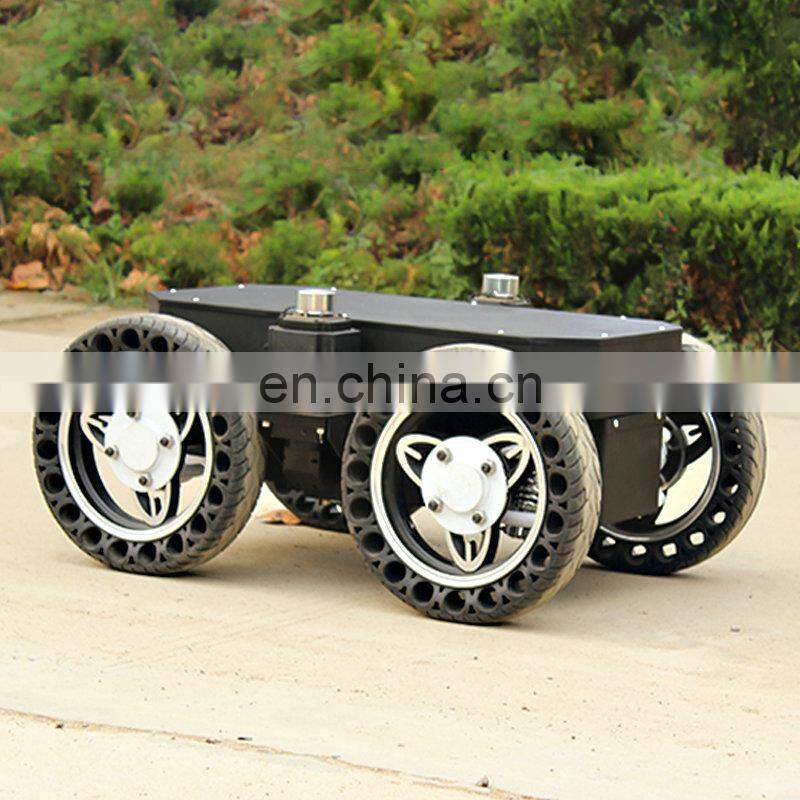

High stable rubber track undercarriage AVT-W9D wheeled robot chassis food delivery robot with explosion-proof tires

Product Description

1. Product Introduction:

The 4-wheel smart robot chassis uses non-inflatable explosion-proof solid rubber tires. This tire is heavier than pneumatic tires, but for durability and usage scenarios, this solid rubber tire has more advantages. Although it will affect the driving speed, its support and passability will be better, and there is no need to worry about the tire being punctured and unusable, affecting the balance and stability of the car body. The 4-wheel robot platform has a super reduction ratio and a differential steering gear, which is more convenient to use.

2. Product Application:

1. Exploration of inspection
2. Scientific research and education
3. Special photography
4. Special transport

3. Product Feature:

1. Non-inflatable explosion-proof solid rubber tires

2. It has a super reduction ratio and a differential steering gear, which is more convenient to use.

4. Product Specification:

Item	Data	Item	Data
Dimensions	931654465mm	Platform size	764*405mm
Self weight	122kg	Running speed	0-9.8km/h
Tyre type	Non-inflatable explosion-proof solid rubber tire	Chassis height	156mm
Body Material	Carbon steel/alloy steel plate/aluminum	Protection level	IP53
Vibration reduction	Four-wheel independent suspension shock absorption	Surface treatment	Spray paint/plastic spray
Motor	48v1000w*2 DC brushless	Design load	100kg
Reduction ratio	1:22.325	Maximum climbing	30°
Maximum obstacle	100mm	Turning radius	Pivot steering
