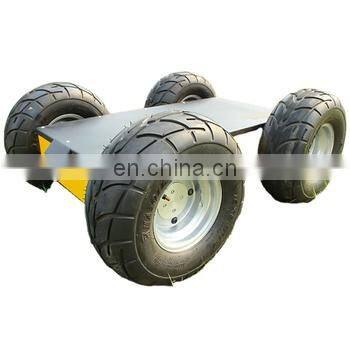

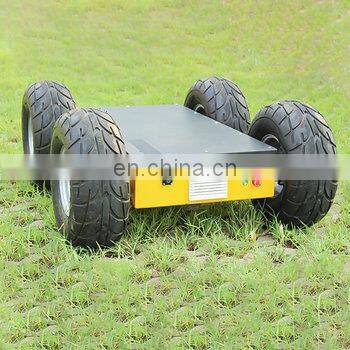

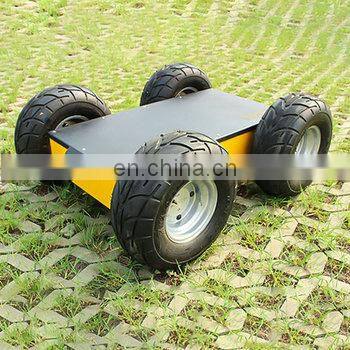

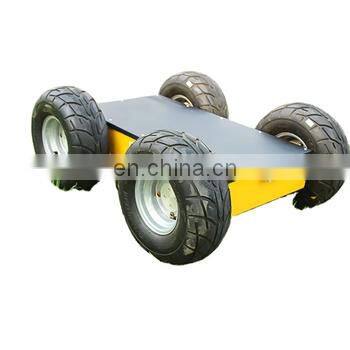

RC 4WD Robot Wheeled Chassis Robotic Platform
Introduction:
AVT-W10, complete vehicle will set the battery and BMS system, power supply module (24 V, 12 V, 5 V output), dc brushless motor, high-precision encoder, driver and brake components in the chassis power assembly, which is equipped for universal type wheel robot chassis. Compact layout can provide a wide development space and imagination space for users, help you to build unique robot products.
Application:
1. Exploration of inspection
2. Scientific research and education
3. Special photography
4. Special transport
Mechanical Parameters:
|
Item |
Data |
Item |
Data |
|
1044*800*440mm |
Platform size |
844*430mm |
|
|
Self weight |
98kg |
Max load |
80kg |
|
Body Material |
Alloy plate//Aluminum |
Surface Treatment |
Powder Coat |
|
Ground Clearance |
156mm |
Protection Grade |
IP64 |
|
Steering Mode |
Differential steering |
Tread |
631mm |
|
Ditch Passing Ability |
400mm |
Over-obstacle Capacity |
140mm |
|
Tire Diameter |
310mm |
Wheel base |
631mm |
|
Running speed |
10km/h |
Climbing angle |
30° |
|
Motor |
48 DC brushless motor |
Reducer |
Precision/Grinding planetary reducer |
|
Rated Torque |
70N.M |
Transmission Ratio |
24:10 |
1.Warranty:one year for main machine, excluding easily wear parts. During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
2. Spare Parts: most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
3. Operation and Maintenance: we will offer you detailed operation manual, ensuring you can use it perfectly.
4. Online Service: your question will be answer within 24 hours during working days, 48 hours during holiday.
