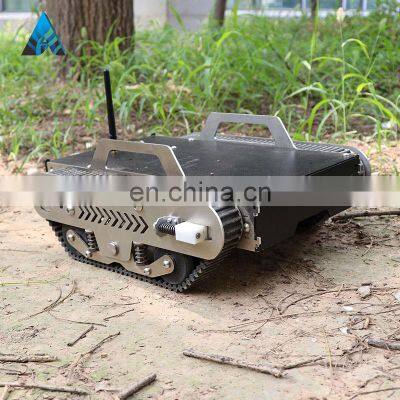

Professional Manufacturer Directly Sell Tins-3 Mobile Tracked Robot Chassis Pipe Inspection Robot CE Certificate Hot Product

Professional Manufacturer Directly Sell Tins-3 Mobile Tracked Robot Chassis pipe inspection robot CE Certificate Hot Product

  1. Introduction:

Mini mobile tracked robot chassis, suitable for all kinds of terrain racing, through the remote control, the tracking robot is very flexible to drive.

2. Application:

The mini robot chassis is equipped with rubber crawlers, which can be applied to various terrains and can be equipped with cameras or robotic arms for secondary development. The rubber tracked robot chassis equipped with a camera can be used as a special police robot for monitoring and tracking. A tracked robot base equipped with a robotic arm can control the robotic arm to operate, preventing operators from working in dangerous environments.

3. Advantage:

1. Small size 300*290*120mm, light weight 6.5kg, big loading capacity 40kg, especially good to work in small areas.
2. Rubber Track: with good ground adhesion, all-terrain chassis.
3. Patent Suspension System:

    1) up and down fluctuation suspension system.

    2) center of gravity shock absorption suspension. Our unique design.
4. Guiding Wheel: self-tension, automatic adjust, ensuring timely tension and running.
5. Separate Self-control Circuit and Extending Circuit:

   1) mechanical extending with detachable front/rear/and upper cover plate, greatly reducing customizing risk.

   2) Electrical extending with 5V3A, 12V3A circuit for 5/6/13 extending circuit.
6. Power and Control:

  1) battery and wireless control: support 13-Way Servo Control Signal and 4-Way active control signal.

  2) wire mode: support 4-Way active control signal, with one XY lever and 6-way servo control lever.
7. Optional Modular: no-map navigation, position tracking lock, etc.


4. Specification:

Control Box Specification

5. Picture show:
