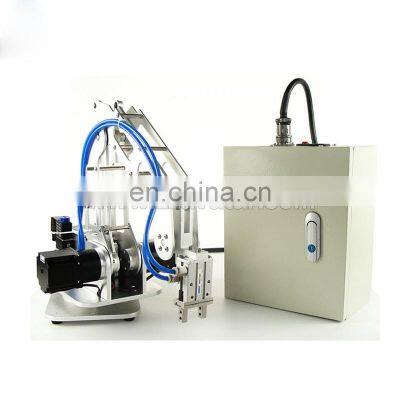

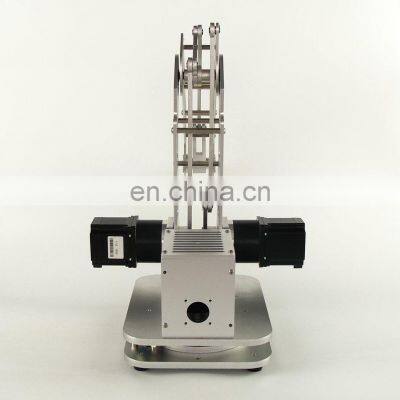

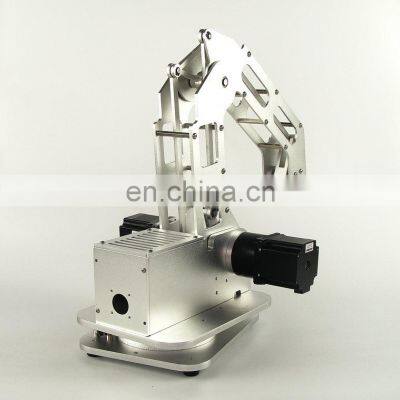

WIFI remote control automatic 2.5KG Heavy load industrial robot arm
Product Features:
1. High precision: 1:10 high precision stepping motor with precision of 0.3mm
2. High quality: The whole body is made of 6061 aluminum alloy, the surface is anodized, and all joint parts are made of high quality bearings.
3. With WiFi module, can be remotely controlled by mobile app.
4. With gripper and suction cups, can move small objects.
WIFI remote control automatic 2.5KG Heavy load industrial robot arm
|
3 |
|
|
Load Weight |
2.5KG |
|

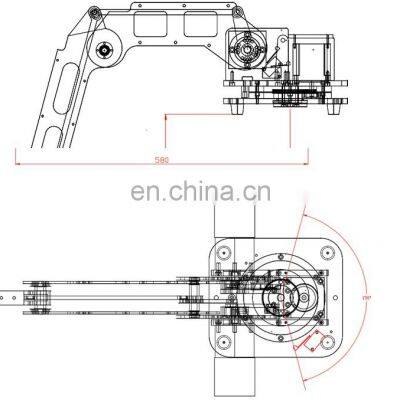

580mm |
|
|
Precision |
0.3mm |
|
Power |
60W |
|
Communication protocol |
WIFI |
|
Voltage |
100-240V, 50/60Hz |
|
Weight |
16kg |
|
Operating temperature |
-10℃-60℃ |
|
Physical characteristics |
|
|
Base Net weight |
8.5kg-12kg |
|
Base size |
220*168mm |
|
Material |
6061 Aluminum alloy |
|
controller |
Android |
|
Package |
500*520*390m |
|
Application |
|
|
Software |
Android Apk |
|
Expansion I/O interface |
Four IO output, two MOS drive, two relay nodes Four IO inputs, which are used to trigger the stored four groups of actions. Two servo interfaces, which can control 5V analog small servos. Four groups of actions can be stored. Each group has a maximum of 254 node end effectors. |
|
Parts |
|
|
Suction cup |
Suction cup diameter 25mm, pressure -35kpa |
|
Paw |
Size 20mm, Drive mode Pneumatic, force adjustable |
