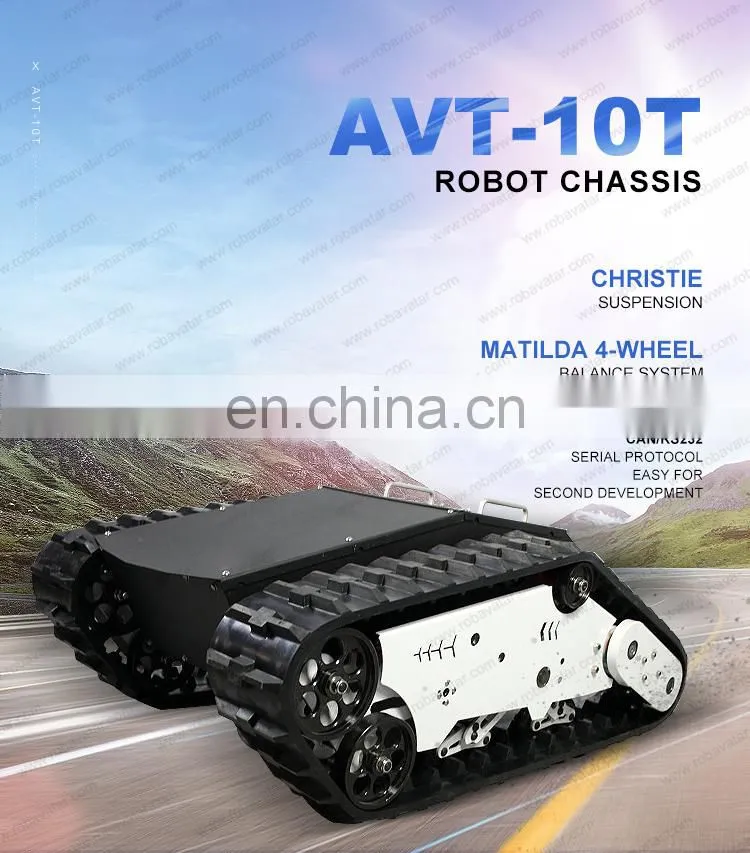

Hot selling AVT-10T rubber crawler robot chassis commercial robot with excellent trafficability and crossing ability
1. Product Introduction:

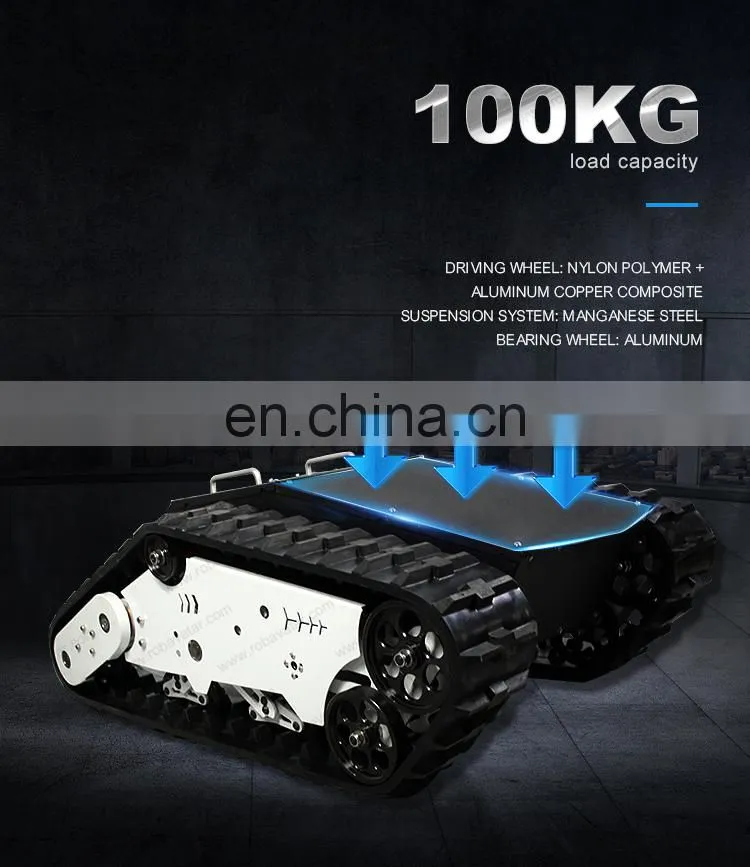

The robot chassis AVT-10T is made of 304 stainless steel and galvanized square pipe, which has good corrosion resistance, so the chassis can be used effectively for a long time. Not afraid of climbing and driving in the wild, you can walk on 45° steep slopes or stairs. The rubber track will increase the friction with the ground, which is of great significance for the robot chassis that can withstand a load of 100kg. Therefore, the price of the chassis for robot needs to be determined according to the materials used in the robot chassis kit.
2. Product Application:
1. Exploration of inspection
2. The rescue vehicle
3. Scientific research and education
4. Fire control security guard
5. Special photography
6. Special transport
3. Product Features:

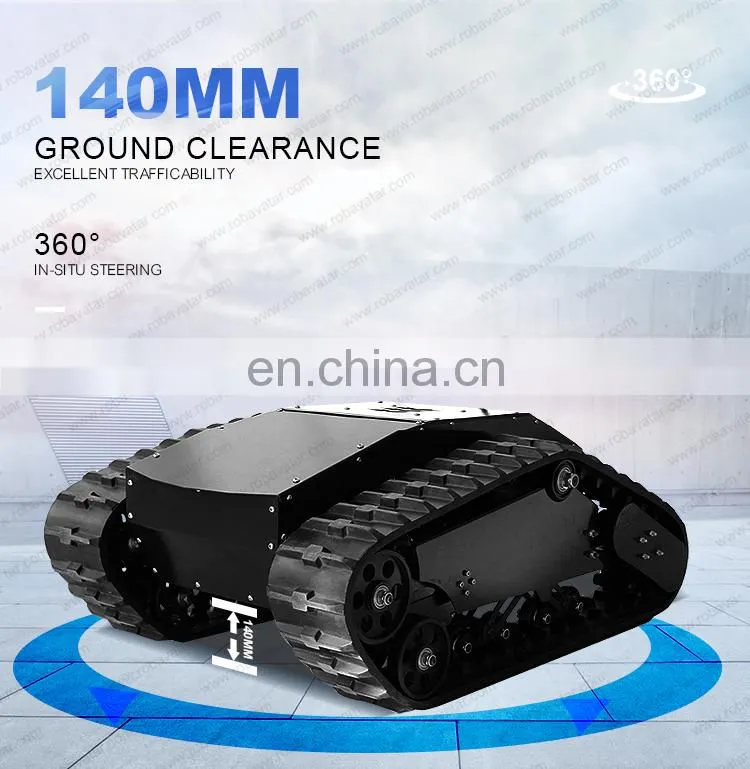

1. 140mm ground clearance, excellent trafficability.

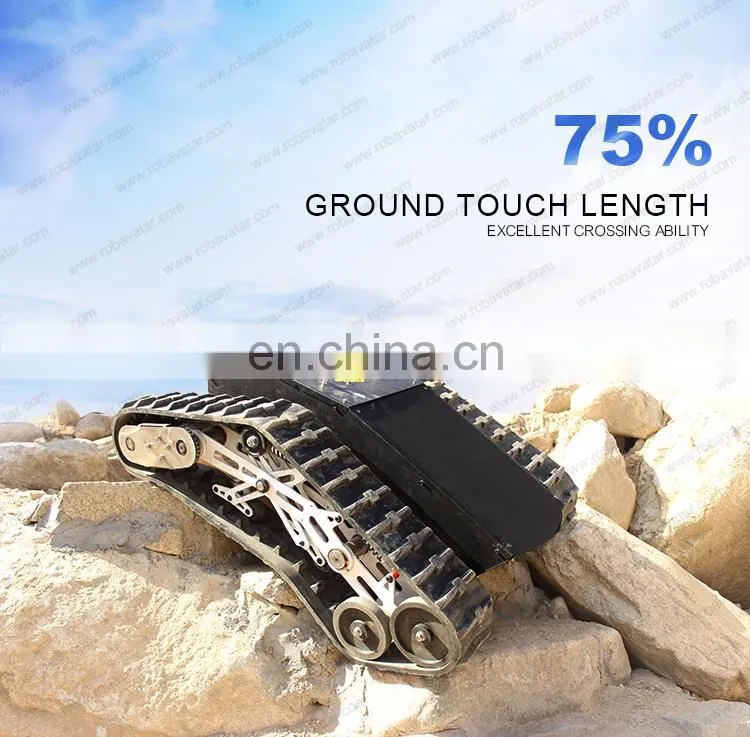

2. 75% ground touch length, excellent crossing ability.

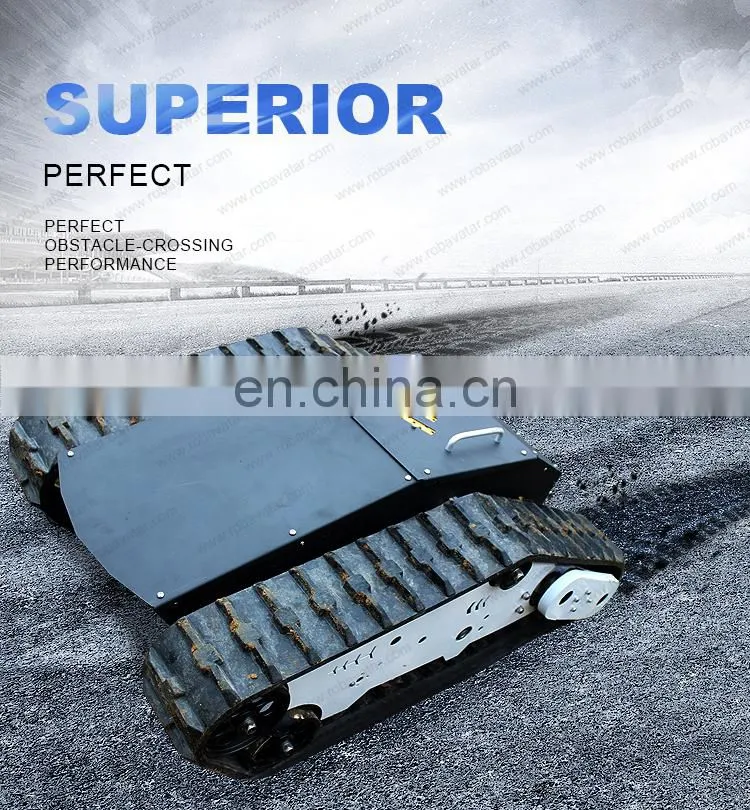

3. Superior grip, perfect obstacle-crossing performance.
4. Product Specification:
|
Item |
Data |
Item |
Data |
|
Body Material |
304 Stainless Steel Skin, Galvanized Square Tube |
Dimension |
1020*750*405mm |
|
Track Material |
Quality Rubber Embedded with Kovlar Fiber |
Internal Size (Excluding Battery) |
320*295*240mm |
|
Self Weight |
110KG |
Max. Load Weight |
120KG |
|
Motor |
Kane Motor 110BL03 |
Track Circumference |
2.3m |
|
Track Width |
150mm |
Motor Rated Torque |
2.5N |
|
Drive Wheel Diameter |
148mm |
Rated Torque |
60NM |
|
Wheel Material |
Aluminium |
Ground Contact Length |
74cm |
|
Reduction Ratio |
1:7.5 |
Reducer |
NMRV50 |
|
Surface Treatment |
Sprayed / Partially Painted |
Running Speed |
6.5KM/H |
|

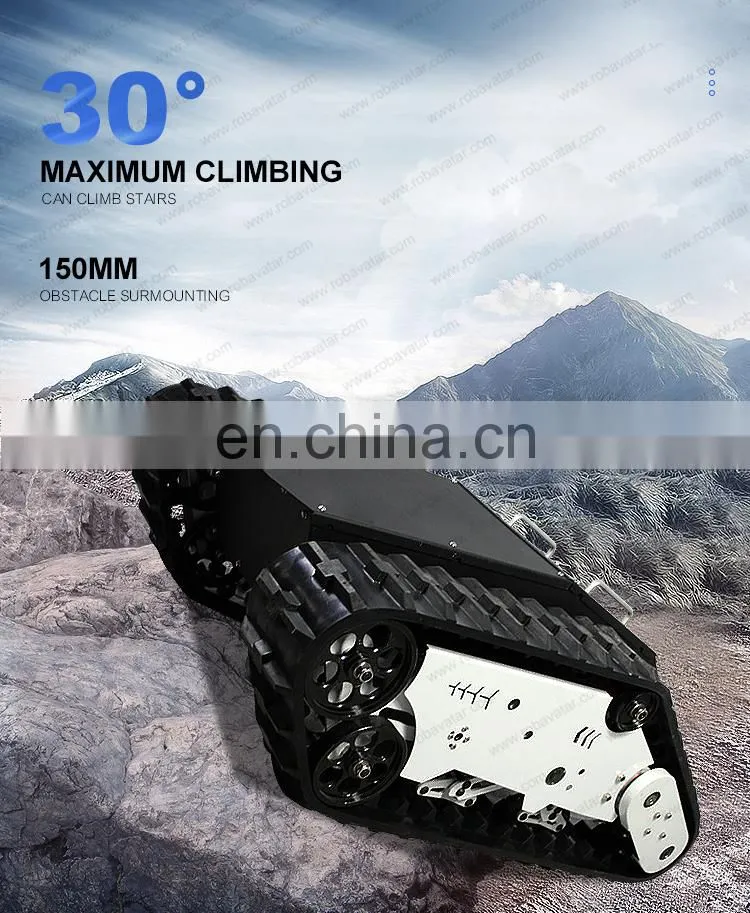

Climbing |
30°, can climb stairs |
Power |
1000W*2 |

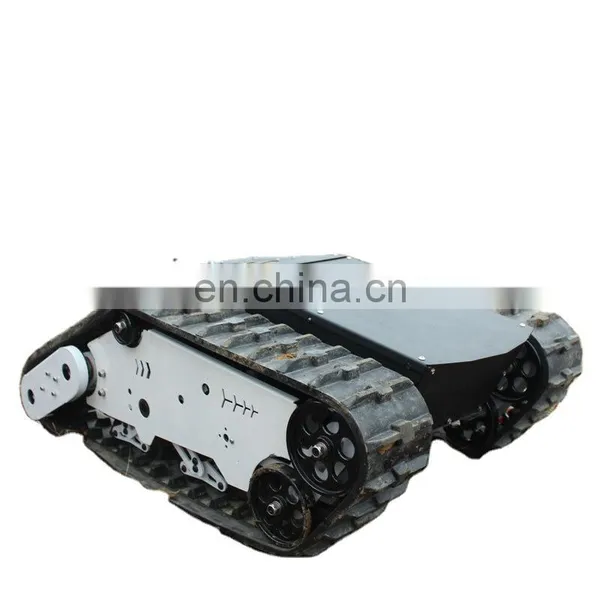

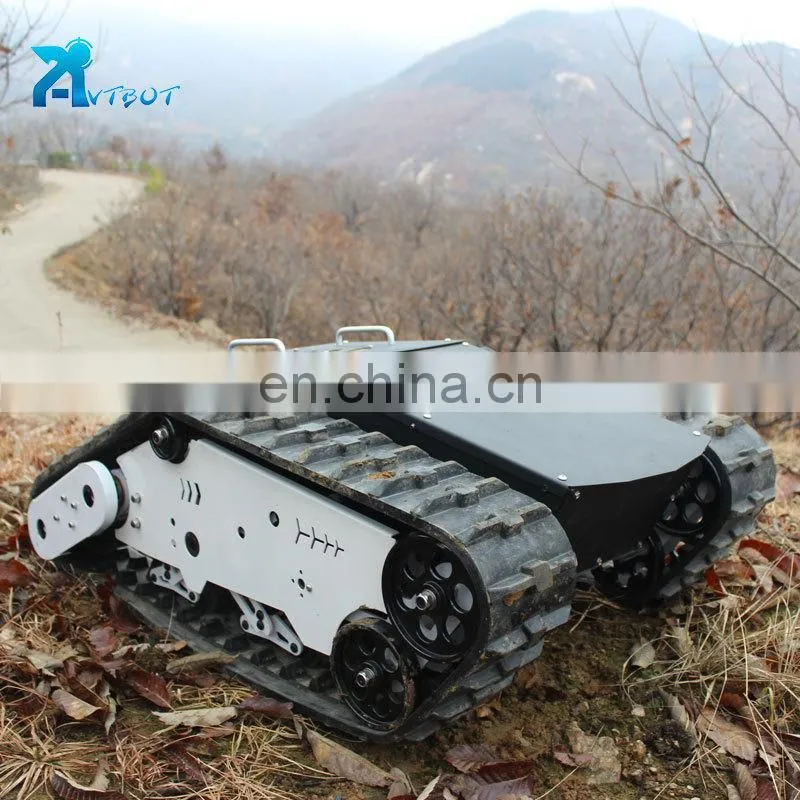

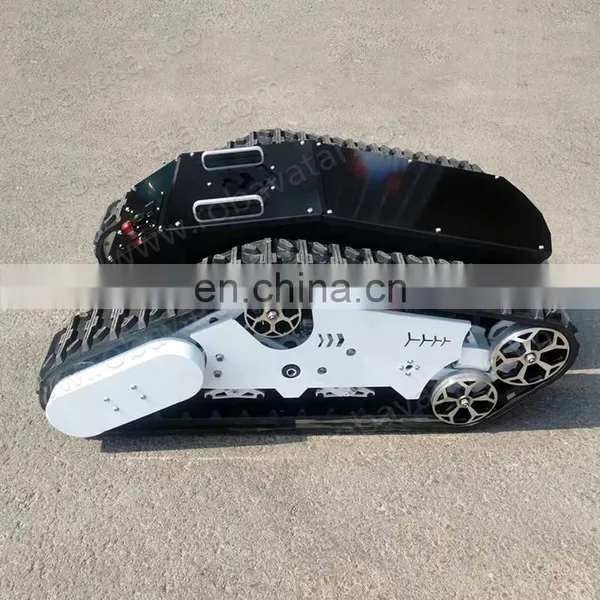

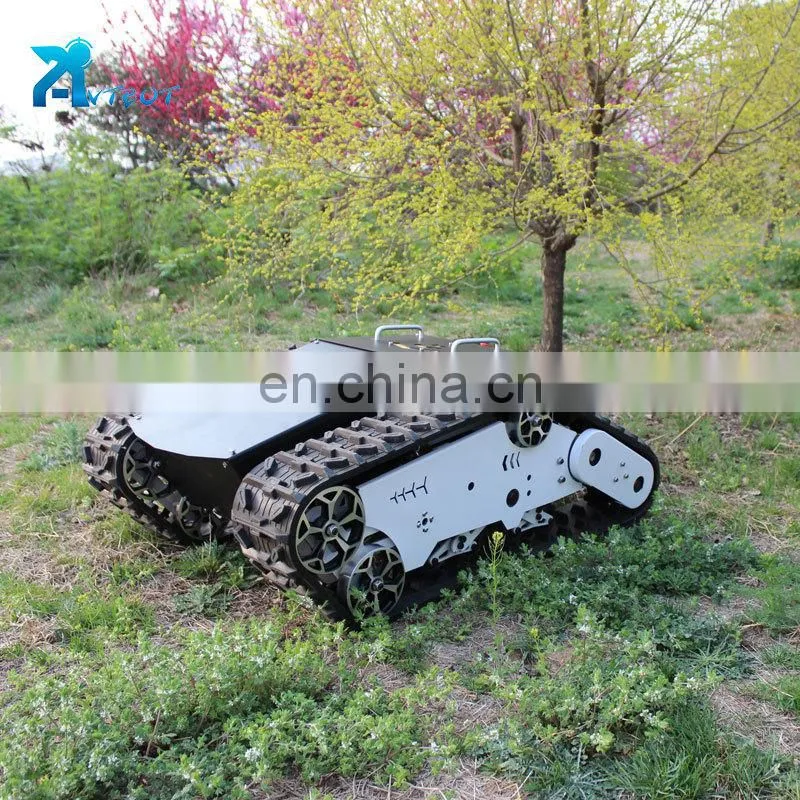

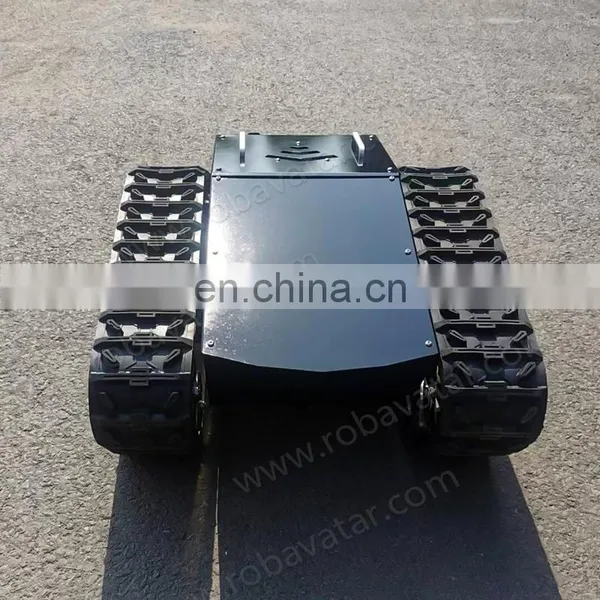

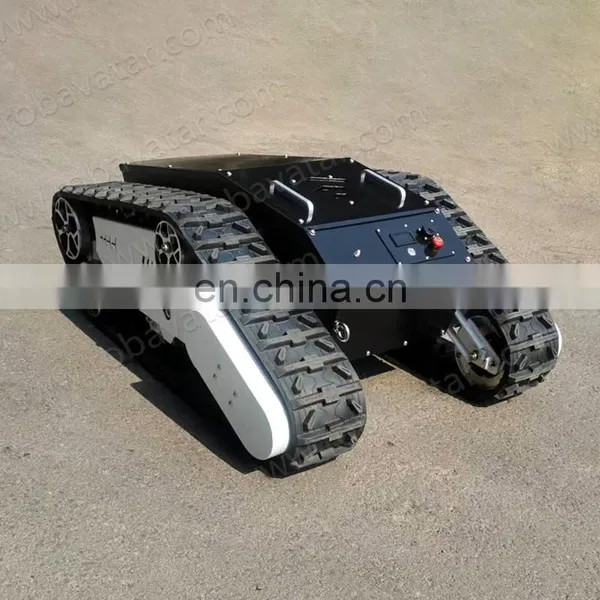

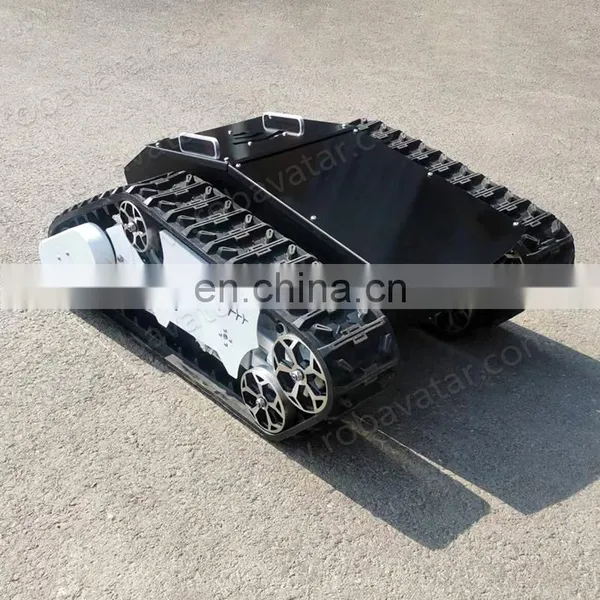

5. Product Picture show:
Packing: Wooden case .
Delivery way: By express, by air or by ship.
