Intelligent 3D Vision Industrial Robot AGV-01 is Used for Positioning Guidance, Visual Inspection, and Visual Obstacle Avoidance
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2001
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
The High-performance Mobile Grabbing Robot R1000-UR5 UGV Can Recognize Objects and Automatically Grab Designated Objects.NegotiableMOQ: 1 -
Desktop Mobile Grabbing Robot B280 Can be Navigated and Seen, Suitable for Unmanned Driving in Colleges and Vocational SchoolsNegotiableMOQ: 1
-
Small, Low-cost, Programmable Mobile Robots for Education, Research, Hobbyist Work Can be Customized in Many WaysNegotiableMOQ: 1
-
Cost-effective Multi-function Mobile Robot,which Can Realize 3D Map Navigation and Follow, Suitable for Home, School, RestaurantNegotiableMOQ: 1
-
Desktop Mobile Robot UGV R-300 Unmanned Ground Vehicle Small Size and Large Capacity Can Autonomously Navigate Visual CaptureNegotiableMOQ: 1
Product Description
product description

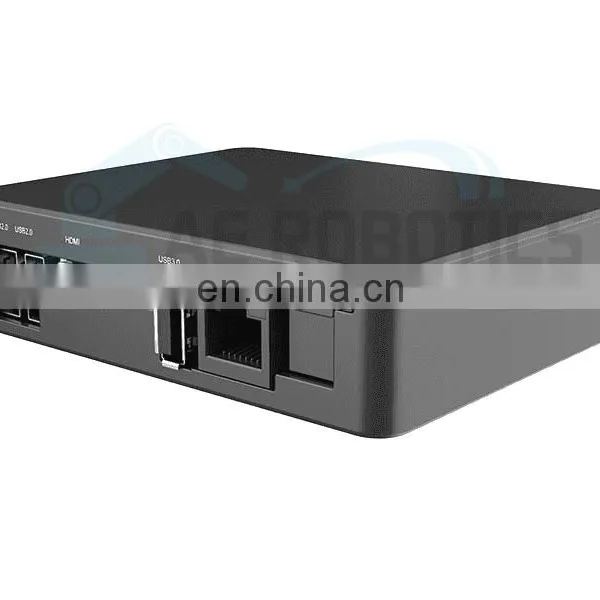

LITEMAZE-AGV-01 Robotic 3D Vision Obstacle Avoidance Module AGV module adopts industrial-grade active binocular 3D camera, large field of view, high resolution and low latency obstacle detection, built-in smart chip supports multiple algorithms. The mod supports up to 16 built-in locales to meet the needs of various scenarios. The regional setting adopts the first domestic 3D visual interface, and the setting is very intuitive and simple, saving you a lot of time. The interface that supports Digital IO can be integrated using the electrical interface, which is convenient to replace the obstacle avoidance module that is already in use.
Implementation principle
Binocular visual obstacle avoidance is based on the principle of parallax, using two cameras of an imaging device separated by a certain distance to obtain two images of the same scene under test, and calculating the pixel deviation between the corresponding points of the two images according to the principle of triangle to obtain the three-dimensional information of the scene space (Including the distance between the camera and the object, the distance between the object and the object, etc.).
Product Features
1. The horizontal field of view is 65 degrees, and the vertical field of view is 40 degrees.
2. Depth map resolution 640x480@60fps
3. Interface support: TCP, RS232 and network port
4. Industrial grade dustproof, working temperature 0-40 degrees Celsius
5. The smallest detected obstacle can reach 15mm
6. Detection delay 100ms
Specification
type |
AGV-01 |
Brand |
AE |
Size |
10cm x 3cm x 3cm |
depth resolution |
1280 x 720 |
depth accuracy . |
Up to 1% |
The scope of work |
Up to 4m |
RGB field of view |
69(H)x42(M) |
RGB frame rate |
60 fps for VGA; 30fps for 720p |
depth frame rate |
60 fps for VGA; 30fps for 720p |
Light source wavelength |
850nm |
Packing & Delivery
Packing material: shockproof cotton, insulation paper pad, carton, wooden case
Company Profile
AE Robotics Co,. Ltd
AE Robotics Co., Ltd was founded in January 2015. We focus on discrete industrial automation and industrial process automation, and can design, develop, test install, debug industrial robots, their units and related accessories, including accessories, devices transmission, positioning devices. and control system.
We can provide cobot robot, industrial robot, robot parts, CNC controller, robot integration, etc.
We expect our professional technical services to provide customers with the best return on investment.
