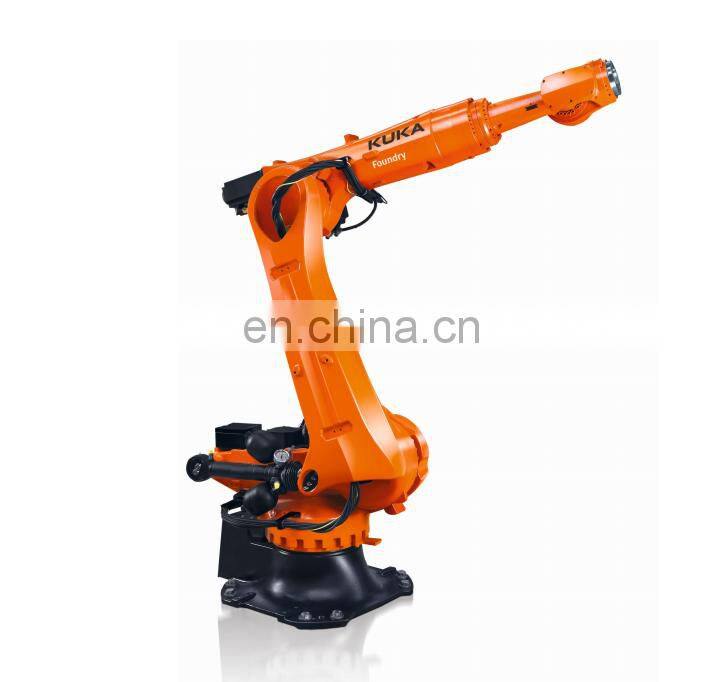

Manipulator KUKA 210R 2700 Industrial Robot Reach 2701mm Payload 120kg Robot Arm
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
2022 HOT SALES KUKA KR120R1810 Kuka Robot Industrial Robot 30kg Payload and Reach1810mm Pick and Place
-
2020 NEW KUKA KR120R2700 2700mm Arm and Reach 168kg Payload Robot Arm
-
2019 Hot Sales KUKA KR120R1810 Kuka Robot 210kg Payload Robot Arm Industrial Robot
-
Robot Arm Kuka Kr120r1800 6 Axis Robotics and Robot Arm Label Applicator
-
Industrial Robot Kuka Kr10r1420 Welding Robot and Cheap Welding Robot Arms
-
Spray Painting Robot Arm 6 Axis KUKA KR120R1810 Robotic Arm Spraypaint Long Reach Robot Arm
Product Description
Product Description
Brand | KUKA |
Type | 120R 2700 |
Number of axes | 6 |
Payload | 120Kg |
Weight | 1096 Kg |
Repeatability | ±0.05 mm |
Ambient humidity | 25% - 90% |
Ambient temperature | 0-55℃ |
Protection rating.(IEC 60529) | IP 65/IP 67 |
Protection rating.in-line wrist(IEC 60529) | IP 65/IP 67 |
Controller | KR C4 |
Teach pendant | KUKA smartPAD |
Specification
Axis data | Motion range | Speed with rated payload |
A1 | ±185° | 120°/s |
A2 | -140°/-5° | 115°/s |
A3 | +120°/-168° | 120°/s |
A4 | ±350° | 190°/s |
A5 | ±125° | 180°/s |
A6 | ±350° | 260°/s |
KR C4 Controller | |||||
Dimensions(H*W*D) | 960*792*558 mm | ||||
Processor | Multi-core technology | ||||
Hard drive | SSD | ||||
Interface | USB3.0,GbE,DVI-D,DisplayPort | ||||
Number of axes(max.) | 9 | ||||
Protection rating | IP 54 | ||||
Weight | 150 KG | ||||

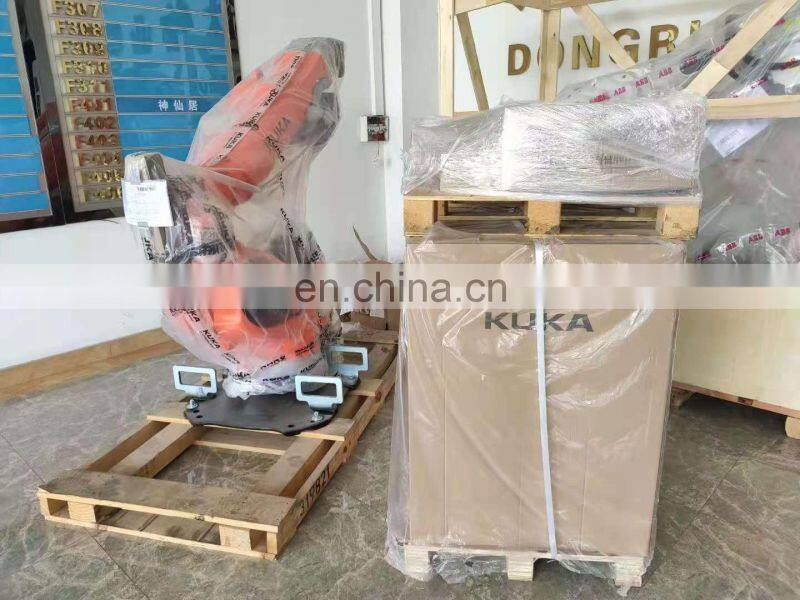

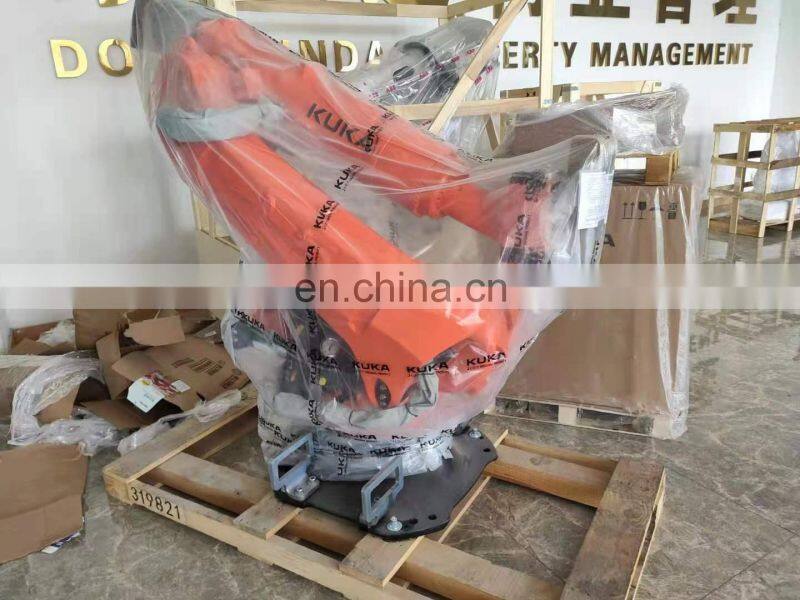

Packing & Delivery
Wood packing Foam, plastic bag, carton, wooden box

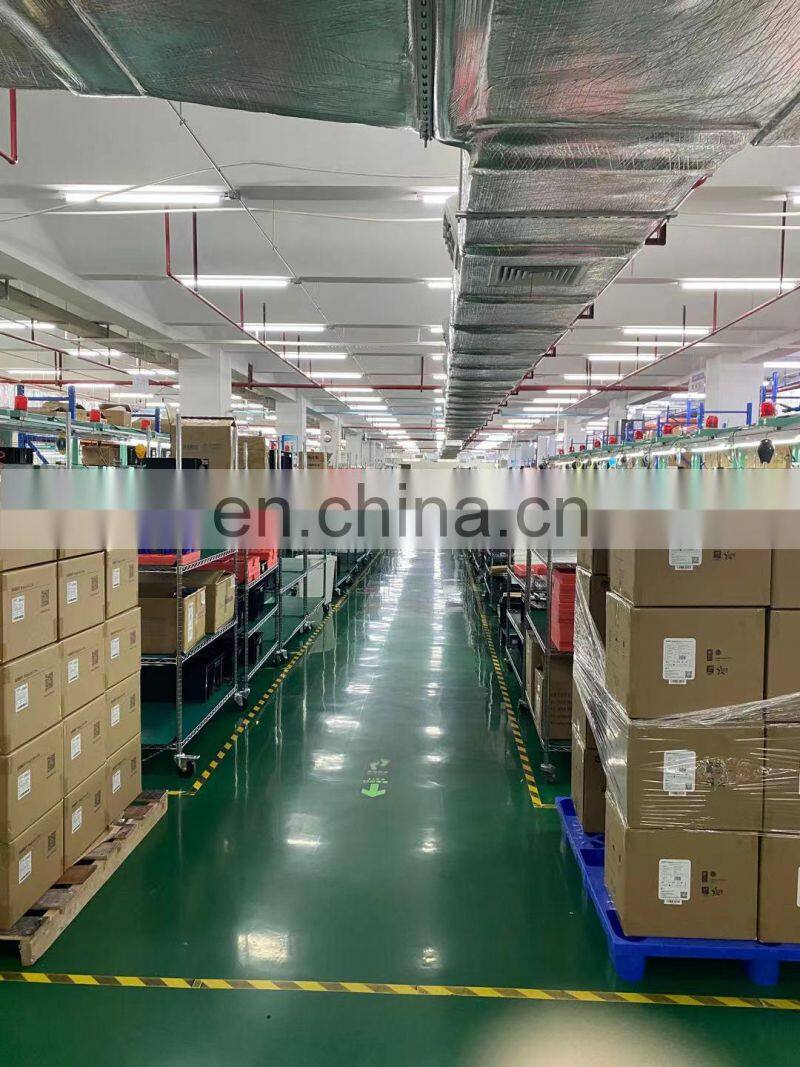

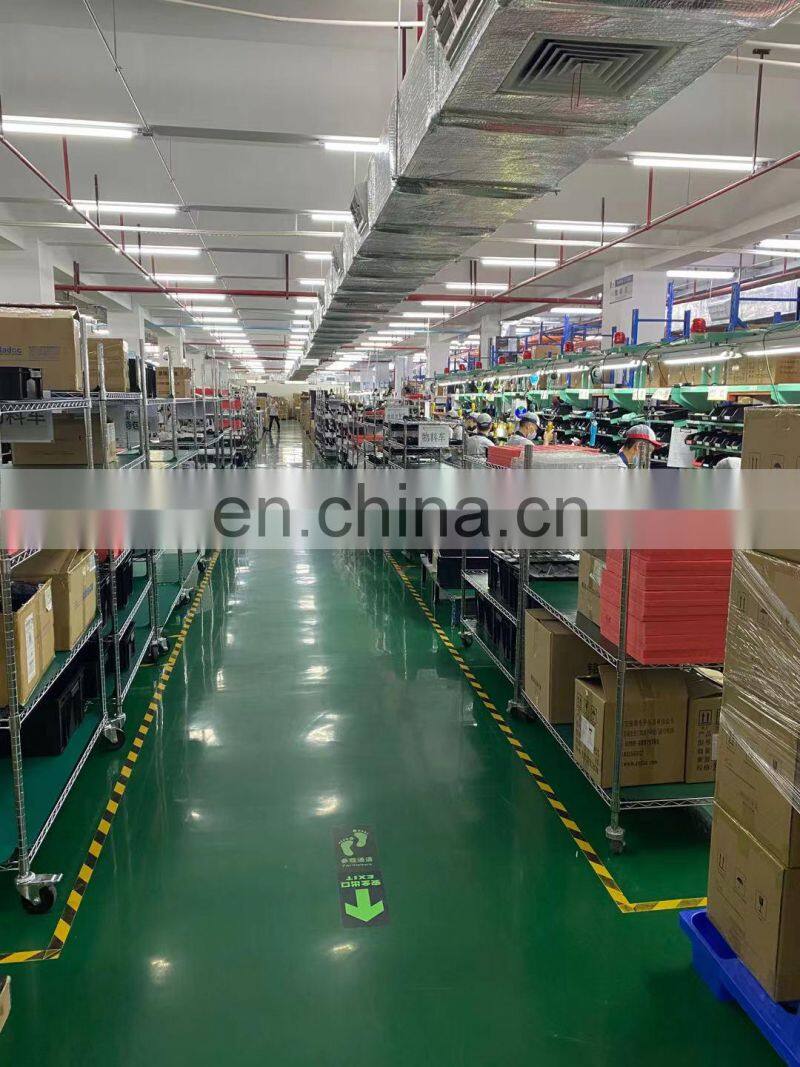

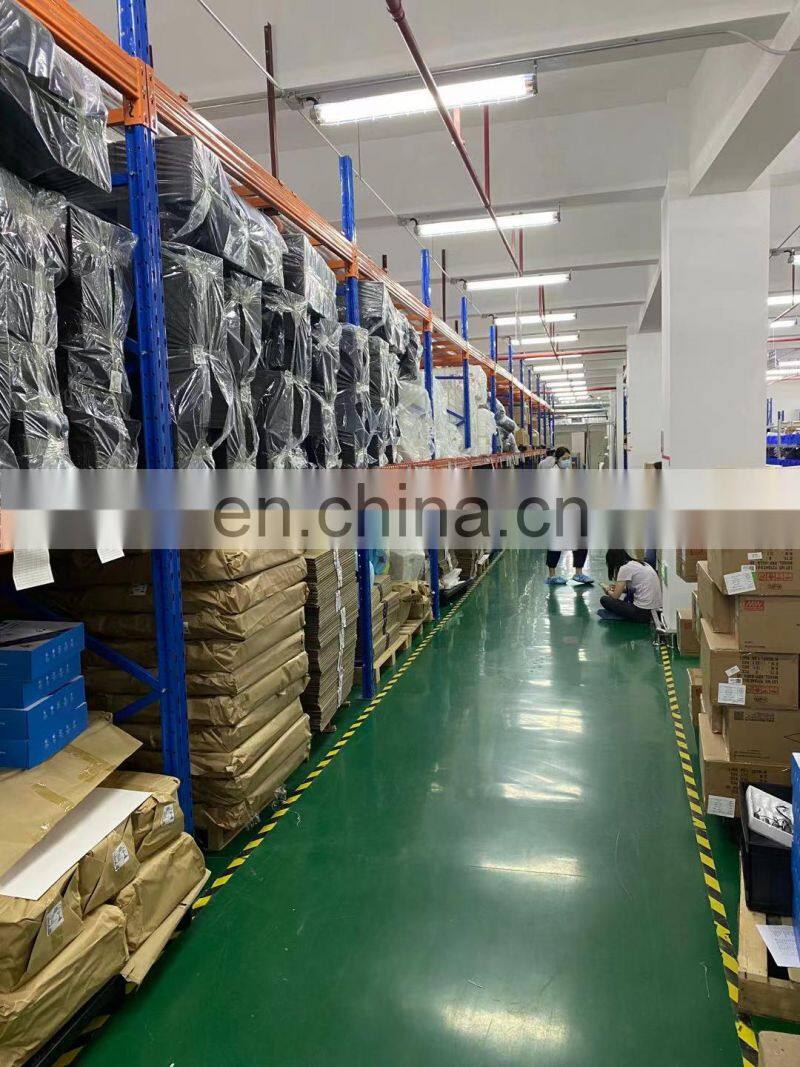

Company Profile
We are an one-stop robot provider in China.Providing high cost effective robot and cobot.we are distributor of ABB,KUKA,KAWASAKI,EPSON etc. and sell robot whole world. we provide customer one stop serivce, help customer customzied robotics tools.Trust is first, Providing the best Pre-sale service and after-sale service is very important for customer. Hope we can make win-win and long-term business.
Contact Us
AE Robotics Co,. Ltd
Email:info@automationar.comSales Manger: Eric
P&W：+86 135 1097 8730
Tele：0755-82598262
P&W：+86 135 1097 8730
Tele：0755-82598262
FAQ
Q1：How long time delivery timeA1：7~10workding days
Q2: What brand of gearbox
A1： J1~J3 is Japan nabtesco RV reducer, J4~J6 is Leaderdrive Harmonic reducer
Q3: How to program
A3: Teaching pendant english interface,
Q4:How many Digital interface
A4: User Digtial input and output 16/16
Q5：What is warranty
A5: 12month
Q2: What brand of gearbox
A1： J1~J3 is Japan nabtesco RV reducer, J4~J6 is Leaderdrive Harmonic reducer
Q3: How to program
A3: Teaching pendant english interface,
Q4:How many Digital interface
A4: User Digtial input and output 16/16
Q5：What is warranty
A5: 12month
