Xiamen Strongtech wood planer thicknesser 20" 5 HP with Straight Helical Cutter Head
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
20\" 508mm Industrial Wood Planer Thicknesser Machine with Cabinet Stand
-
LIVTER 8\" woodworking Jointer Planer With Spiral Cutter Head for Furniture
-
2200W 8 inch Woodworking Planer W0103F With Spiral Cutter Head
-
LIVTER Xiamen Strongtech W0102 Spiral Cutter Head Wood Jointer Planer Woodworking Machine For Solid Wood
-
LIVTER 8 Inch Cast Iron Woodworking Bench Planer Jointer Woodworking
-
LIVTER any size can be customized edgebanding jointing cutter with pcd changeable inserts
Product Description
Products Description
Xiamen Strongtech wood planer thicknesser 20" 5 HP with Straight Helical Cutter Head
Model | W0201 20" Planing Straight Knife | W0201 20" Planer Fillet Spiral Knife |
Motor | Output 3750W , 220V, single phase | Output 3750W , 220V , single phase |
Maximum planing width | 508mm | 508mm |
Maximum planing depth: | 6mm | 6mm |
Maximum wood thickness | 204mm | 204mm |
Minimum lumber length | 180mm | 180mm |
Tool shaft speed | 5000RPM | 5000RPM |
Number of blades | 4 pieces (high speed steel) | 6 slots 130 pieces (import) |
Blade size | 508*25*3mm | 15*15*2.5mm |
Cutting diameter | 78mm | 78mm |
working desk size | 654*510mm | 654*510mm |
Cast Iron Extension Wing Dimensions (Single) | 530*390mm | 530*390mm |

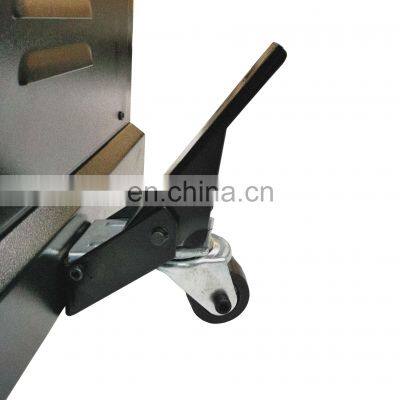

Accessories | Pedal-type swivel casters, switch bracket, Taiwan magnetic starter, two-speed feed gearbox, rubber discharge stick | Pedal type movable casters, switch bracket, Taiwan magnetic starter, two-speed feed gearbox, rubber discharge stick |
Package dimensions | 960*740*1280mm | 960*740*1280mm |
weight | 350kg/390kg | 350kg/390kg |
