Frequency Converter Rated Working Power 0.37 -160 kW New Frequency Converter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Anchuan V1000 Frequency Converter CIMR-VB4A0002/0004/0005/0007/0009/0011BBANegotiableMOQ: 1 -
DELTA Frequency Converter VFD-M Single-phase 220V Three-phase 380V 0.4-11kwNegotiableMOQ: 1
-
Inovance Frequency Converter MD310 Three-phase 380V/0.4-18.5KW Frequency Converter Goods in StockNegotiableMOQ: 1
-
Mitsubishi Frequency Converter FR-D740-0.75K-CHT 0.4K 1.5K 2.2K 3.7K 5.5 7.5KNegotiableMOQ: 1
-
Mitsubishi FR-D740-0.75K-CHT 0.4K 1.5K 2.2K 3.7K 5.5 7.5K Frequency ConverterNegotiableMOQ: 1
Product Description

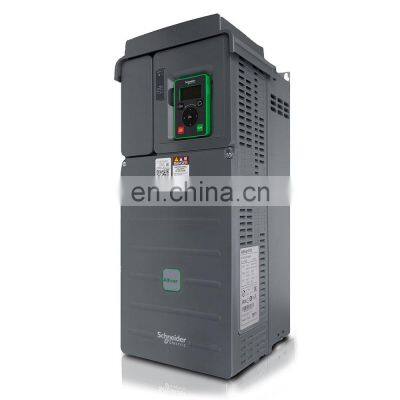

Schneider Frequency converter ATV610
ATV610 Frequency converter is suitable for 380~415V three-phase asynchronous motor with power range of 0.75 to 160kW.
It can be widely used in standard load control systems. Compliance with IEC/EN 61800-3, IEC/EN 61000-4, IEC/EN60721-3, IEC/EN 61800-5-1 and other international standards.
Better adapt to harsh environment
● the cooling air path is completely separated from the PCB board to prevent dust and oil from entering the frequency converter control circuit
● PCB board adopts coating protection to protect electronic components more effectively
● strengthen the protection of busbar to prevent chemical gas corrosion
● add insulating paper to the power part to improve the insulation level
● it can operate in the range of - 15 ℃ to + 60 ℃
● version with additional top cover, the top protection grade can reach IP40
More concise and easy to use
● compact volume, convenient for installation and layout in the cabinet
● control circuit terminals shall be marked with color zones to avoid misoperation of wiring
● control panel installation kit, only one standard 22mm round hole is required to realize the installation of cabinet door
● multiple application macros cover 90% of standard fan and pump applications, plug and play, without modifying parameters
● it can be equipped with standard Chinese display control panel, simple and friendly operation interface, and can be quickly debugged without memorizing code
● the short menu covers common parameters
● the parameter configuration of one frequency converter can be copied to another frequency converter through the control panel
● quick start guide, clearly guiding installation, wiring and commissioning
● integrated multi pump function, no need to purchase multi pump card
It is more suitable for the application requirements of fan and pump control system
● built in EMC filter and DC reactor can suppress electromagnetic interference and harmonics without adding accessories
● rich built-in input and output terminals (6di / 3AI / 2ao / 3ro) are flexibly integrated into the automatic control system
● built in Modbus communication protocol and support PROFIBUS DP protocol
Integrate richer application and protection functions
● PID controller
● sleep wake-up function
● automatic switching frequency adjustment
● motor noise reduction mode
● PTC probe protection
● input power phase loss protection and undervoltage protection
● motor thermal protection, motor overload, short circuit, locked rotor and phase loss protection
Specification
Electrical characteristics |
||
Output power |
0.75 - 160kW |
|
Output frequency range |
0 - 500Hz |
|
Input power supply voltage |
380V - 15% to 460V + 10% three phase |
|
Input power frequency |
50Hz - 5% to 60Hz + 5% |
|
Rated switching frequency |
● 0.75 - 45kW：4kHz ● 55 - 160kW：2.5kHz |
|
Switching frequency adjustment range |
● 0.75 - 45kW: 2 - 12kHz ● 55 - 160kW: 1 - 8kHz |
|
Overcurrent capability P general load application: |
●110% of the rated current of the frequency converter, lasting for 60s; Or 120% of the rated current of the frequency converter,lasting for 20s
●heavy load application: 150% of the rated current of the frequency converter for 60s
|
|
Motor control mode |
U / F VC standard、U / F VC 5-point voltage frequency ratio、 U / F VC quadratic、U / F VC energy saving |
|

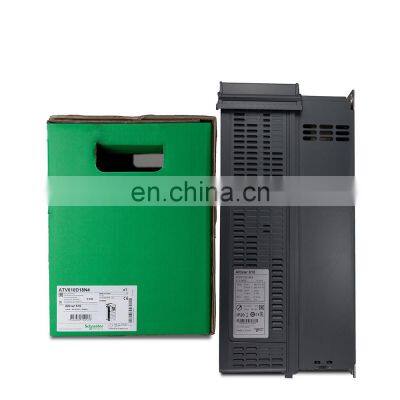

Packing & Delivery
FAQ
Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below
