Home > Auto, Motorcycle Parts & Accessories > New Energy Vehicle Parts & Accessories > Motor Controller > Anchuan V1000 Frequency Converter CIMR-VB4A0002/0004/0005/0007/0009/0011BBA
Anchuan V1000 Frequency Converter CIMR-VB4A0002/0004/0005/0007/0009/0011BBA
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DELTA Frequency Converter VFD-M Single-phase 220V Three-phase 380V 0.4-11kwNegotiableMOQ: 1 -
Inovance Frequency Converter MD310 Three-phase 380V/0.4-18.5KW Frequency Converter Goods in StockNegotiableMOQ: 1
-
Mitsubishi Frequency Converter FR-D740-0.75K-CHT 0.4K 1.5K 2.2K 3.7K 5.5 7.5KNegotiableMOQ: 1
-
Mitsubishi FR-D740-0.75K-CHT 0.4K 1.5K 2.2K 3.7K 5.5 7.5K Frequency ConverterNegotiableMOQ: 1
-
FC51 Frequency Converter 0.37KW-22KWNegotiableMOQ: 1
Product Description

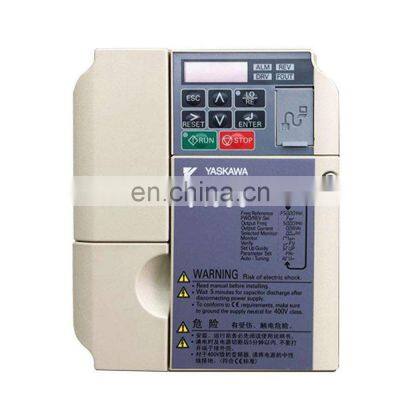

New Anchuan Frequency Converter V1000
Anchuan frequency converter is well received for its high performance, high function and high quality.
Nowadays, V1000 frequency converter with more applicability and convenience is born.
（Product model, product specification information and inquiry, contact customer service for negotiation）
Specification
Capacity Range |
200V Class (3-phase power supply) 0.1-18.5KW 200V (single-phase power supply) 0.1-5.5KW
400V (3-phase power supply) 0.2-18.5KW
|
|
Scope of application: |
Conveyor: conveyor belt, electric gourd, hoist Civil machinery: shutter door
Fluid machinery: fan, water pump
Air conditioner:compressor
|
|
Control characteristics |
||
control mode |
Select from the following methods No PG vector control (current vector), no PG V / F control, no PG vector control for PM (applicable to SPM and IPM)
|
|
Frequency control range |
0.01～400 Hz |
|
Frequency accuracy (temperature fluctuation) |
Digital input: within ± 0.01% of the maximum output frequency (- 10 ~ + 50 ℃) Analog input: within ± 0.1% of the maximum output frequency (25 ℃± 10 ℃)
|
|
Frequency setting resolution |
Digital input: 0.01 Hz Analog input: 1 / 1000 of the maximum output frequency
|
|
Output frequency resolution (operational resolution) |
20 bit of maximum output frequency (set value of parameter e1-04) |
|
Frequency setting signal |
Main speed frequency command: dc0v ~ + 10V (20k Ω), 4 ~ 20mA (250 Ω), 0 ~ 20mA (250 Ω) Main speed command: pulse sequence input (maximum 32 kHz)
|
|
Starting torque |
200% / 0.5 Hz (without PG vector control, Im below 3.7 kW, HD rated timing), 50% / 6Hz (without PG vector control for PM) |
|
Speed control range |
1: 100 (without PG vector control), 1:20 ~ 40 (without PG V / F control), 1: 10 (PG free vector control for PM)
|
|
Speed control accuracy |
± 0.2% (without PG vector control) * 1 |
|
Speed response |
5 Hz (20 ℃± 10 ℃) (without PG vector control) (during self-learning of rotating shape: except for temperature fluctuation) |
|
Torque limit |
(set with parameters, which can be set separately in 4 quadrants only when there is no PG vector control) |
|
Acceleration and deceleration time |
0.00 ~ 6000.0 seconds (acceleration and deceleration are set separately: 4 kinds of switching) |
|
Braking torque |
① Short time average deceleration torque * 2: motor capacity 0.1/0.2kw: more than 150%, 0.4/0.75kw: more than 100%, More than 50% for 1.5 kW and more than 20% for 2.2 kW (about 40% for over excitation braking / high slip braking) ② Continuous regenerative
torque: about 20% (when connecting the option of braking resistor * 3, about 125%, 10% ed, 10 seconds, built-in braking transistor) |
|
Voltage / frequency characteristics |
Fixed V / F curve can be made or selected arbitrarily |
|
Protection function |
||
Motor protection |
The motor is protected against overheating by the output current |
|
Instantaneous overcurrent protection |
Stop when the rated output current of HD is more than 200% |
|
overload protection |
150% of rated output current stops at 60 seconds (hd) * 4 |
|
Overvoltage protection |
Class 200V: stop when the DC voltage of the main circuit is above 410v 400V level: stop when the DC voltage of the main circuit is
more than 820v |
|
Low voltage protection |
Stop when the DC voltage of the main circuit is lower than the following value About 190V (three-phase 200V), about 160V (single-phase 200V), about 380V (three-phase 400V), about 350V (three-phase 380V)
|
|
Instantaneous power failure |
Stop when the compensation is more than 15 ms (factory setting). According to the parameter setting, the power failure will be restored in about 2 seconds and continue to run * 5 |
|
Heat sink overheating protection |
Protected by thermistor |
|
Brake resistor overheat protection |
5.5 kW, 7.5 kW: detect overheating of braking resistor (3% ED) |
|
Stall prevention |
During acceleration and operation: the action current value can be set respectively through parameters, and you can also select Yes and No. During deceleration: only yes and no can be selected.
|
|
Ground short circuit protection |
Protection via electronic circuit * 6 |
|
Display during charging |
The charging indicator light turns on before the DC voltage of the main circuit reaches below about 50V |
|
environment |
||
Installation site |
Indoor |
|
Ambient temperature |
- 10 ~ + 40 ℃ (closed wall mounted type), - 10 ~ + 50 ℃ (cabinet mounted type) |
|
Humidity |
below 95rh% (no condensation) |
|
Storage temperature |
- 20 ~ + 60 ℃ (short time temperature during transportation, etc.) |
|
Altitude |
below 1000M |
|
Vibration |
9.8 m / S2 below 10 ~ 20 Hz, 5.9 M / S2 below 20 ~ 55 Hz |
|
Applicable safety standards |
·UL508C ·EN61800-3，EN61800-5-1
·ISO13849-1 Cat. 3 PLd，IEC61508 SIL2
|
|
Protective structure |
Cabinet mounted type (IP20), closed wall mounted type (nema1: optional) |
|
Product features
Simple!
Can be set by purpose!
●Suitable parameters can be set automatically by selecting the use of water supply pump, conveyor belt, air supply and exhaust fan, etc. The trial run time is shortened.
Via a copy device with USB It is easy to set up multiple frequency converters.
●It is easy to set up multiple frequency converters.
●By using a copy device with USB (optional), the parameter settings of the frequency converter can be simply copied to other frequency converters.
●With a USB converter, you can connect to the computer's USB port.
With the help of computer, make adjustments and maintenance easier
●If DriveWizard, an engineering tool for frequency converters, is used, the parameter settings of multiple frequency converters can be managed by a computer.
●In addition, it is equipped with mode operation and oscillographic function to make the adjustment and maintenance of frequency converter easier.
Compliance with safety standards
●The standard is equipped with EN954-1 Cat. 3 and the security input function of IEC/EN61508 SIL2. It also reduces peripheral equipment, so it can easily meet the mechanical safety standards.
Drive Replacement Function
Supports driver substitution such as automatic transformation of parameters from the original product VS Mini V7.
Parameter Editing
You can display and edit the frequency converter parameters.
Examples of monitoring oscillographic operation
Real-time display of running monitoring data.
MINIATURIZE!
Smaller
By using thermal simulation technology, the parts with high reliability are reasonably laid out and miniaturized. Up to 70% reduction in volume (compared with previous products of our company), compact structure.
Multiple frequency converters can be set side by side without interval, which can greatly reduce the control cabinet of the machine.
(Note) Load reduction is required in some cases
