Attractive Price AC Servo Motor Driver Set 400W Can be Equipped With Control System and Reducer With Encoder 3000 Rpm 1.27N.m
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Attractive Price AC Servo Motor Driver Set 400W 3000 Rpm 1.27N.m Can be Equipped With Control System and Reducer With EncoderNegotiableMOQ: 1 -
Attractive Price AC Servo Motor Driver Set Can be Equipped With Control System and Reducer With Encoder 400WNegotiableMOQ: 1
-
Attractive Price AC Servo Motor Driver Set 750W 3000rpm 2.4N.m Can be Equipped With Control System and Reducer With EncoderNegotiableMOQ: 1
-
Attractive Price AC Servo Motor Driver Set Can be Equipped With Control System and Reducer With Encoder 750W 3000rpm 2.4N.mNegotiableMOQ: 1
-
Factory Price Teco Sewing Machine De China Driver 130mm 6N.m 1.5kw AC Waterproof Servo MotorNegotiableMOQ: 1
Product Description

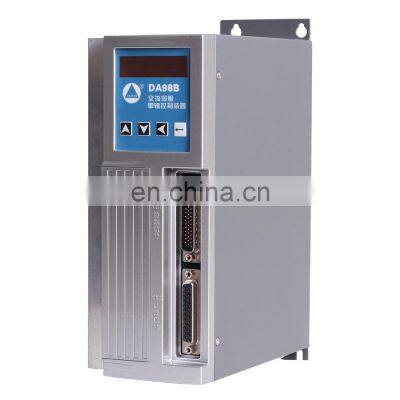

AC servo motor driver package
The standard servo motor of this set of servo is:
60ST-M01330、60 flange、400W、1.27nm、 3000 rpm
Specification
Main control modes of servo driver:
1. Position pulse control: there are 3 kinds, pulse plus direction (CP + DIR); Forward and reverse control (CW + CCW); 90 °quadrature pulse (A + B).
|
2. Analog speed control, analog 0-10V voltage controls the motor speed, and can realize forward and reverse rotation and zero return (or quasi stop) functions. |
3. Internal speed control, which specifies the running speed of the motor by setting the driver parameters. Up to 8 speeds can be preset. |
4. Position fixed length control, which can realize positive and negative movement by setting the parameters of the driver to specify the moving distance and running speed of the motor. |
5. Realize the spindle servo function, speed control, position control switching and quasi stop function.
(Note: if you need this function, please contact the customer service. Popular models do not have this function.)
|
AC servo motor |
60ST-M01330 |
Rated Power ( w ) |
400W |
Rated speed (rpm) |
3000 |
Holding torque(N.m) |
1.27 |
Weight (kg) |
6.1 |
Mounting dimensions |
60 Flange |
List of products:
1. One servo motor |
2. One servo driver |
3. One encoder line (3m) |
4. One motor power line (3m) |
5. One set of 25 core parallel port connector |
6. One paper product manual |
7. One product color page |
Motor material:
1. The aviation socket is of Zhongqiang brand, (gold plated) |
2. 180T for enamelled wire, 180 ° high temperature resistance |
3. The rare earth permanent magnet material is a listed company in Jiangxi, the model is sh-t, and the difference of magnetic flux of each piece is no more than 1% (stability). Bake it in a 150 high temperature oven for 2 hours, repeat it three times, and then test the permanent magnet material, and the demagnetization rate is no more than 3% |
4. Encoder of tamakawa, Japan. |
Product features
Main core components of servo driver:
Ti's (DSP) digital signal processor and Altera's complex programmable logic device (CPLD) are used as the operation unit

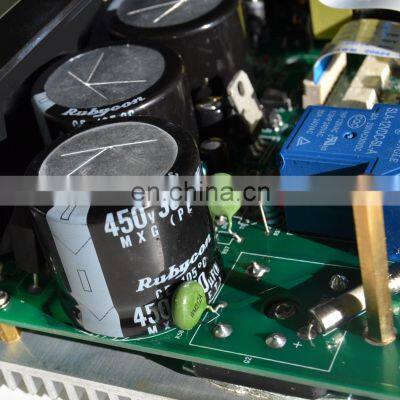

The filter capacitor adopts Ruby aluminum electrolytic capacitor imported from Japan
Toshiba Optocoupler
Tantalum capacitor is used to ensure stable and reliable power supply
The current sensor uses Honeywell Honeywell
PCB board adopts gold sinking process to ensure stable product performance and durability

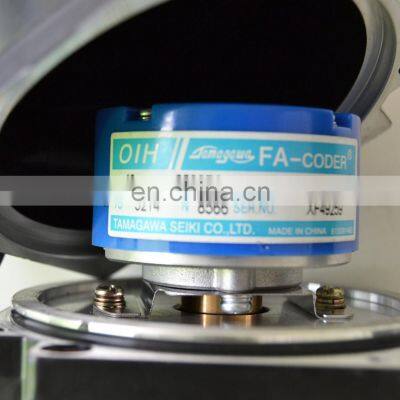

The servo motor encoder adopts the incremental photoelectric encoder of Tamagawa, Japan, with excellent quality and stable performance
The use of all aluminum alloy shell makes the heat dissipation effect very good
The encoder wire presented is a high-quality shielded wire with strong anti-interference ability; The power cord is a copper core wire, and the quality cannot be reduced because of gifts
Product packaging
Company Profile
FAQ
Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface
and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
