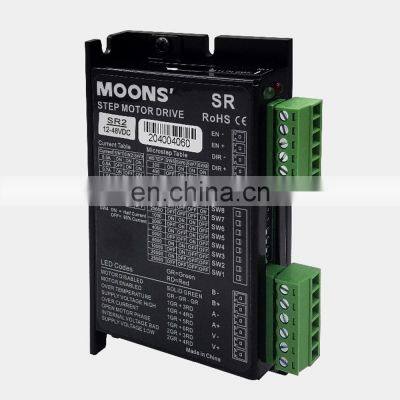

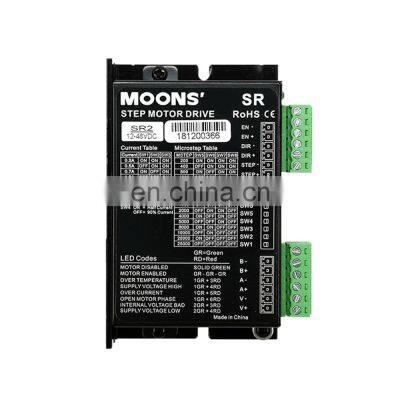

MOONS AM11HS5008-01 + SR2 28 Small Micro Precision Two-phase Hybrid Stepping Motor SR2 Driver Package Large Torque DC
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MOONS Servo Driver Motor 28 Small Micro Precision Two-phase Hybrid Stepping Motor SR2 Driver Package Large Torque DCNegotiableMOQ: 1 -
Dan Fu High Precision 220V AC Servo Motor Servo Drive With 17-bit Absolute Value Magnetic EncoderNegotiableMOQ: 1
-
Leadshine 57 Stepper Motor Driver Kit M542C 57CM13 57CM23 57CM26 D57CM31NegotiableMOQ: 1
-
Original Manufacturer Leadshine 57 Stepper Motor Driver Kit Stepper MotorNegotiableMOQ: 1
-
Leadshine 57 Stepper Motor Driver KitNegotiableMOQ: 1
Product Description
Specification
General specifications |
value |
|
Speed range |
highest 3000RPM |
|
Operating ambient temperature |
0 - 40°C |
|
Maximum ambient humidity |
90% no condensation |
|
Vibration |
5.9m/s2 max |
|
Storage temperature |
-10 ~ 70°C |
|
Cooling mode |
Natural cooling or forced cooling |
|
Use occasion |
Avoid dust, oil mist and corrosive gas |
|
weight |
SR2-Plus/SR3-mini: About 120g SR4-Plus/SR8-Plus: About 310g
|
|
authentication |
RoHS ，CE (EMC): EN 61800-3:2004 |
|
characteristic |
||
Idle current
|
After the motor stops for 1s, the current supplied to the motor is automatically reduced. The dial switch is selected, 50% and 90% are optional |
|
Anti resonance
|
When the dial switch is selected, the driver controls the current according to the inertia ratio parameter of the selected motor and load, so as to improve the stability of the system and the motion stability of the whole speed range of the motor |
|
control model |
With internal jumper selected, pulse & direction mode or dual pulse mode can be selected |
|
Input signal filtering
|
The dial switch is selected to filter the pulse signal noise, which can effectively prevent misoperation. 2MHz or 150kHz can be selected (SR3-Mini can select 500KHz or 150kHz) |
|
Subdivision interpolation
|
When the dial switch is selected, the motor running vibration can be reduced and the running smoothness can be improved. It can be turned on or off |
|
Motor matching rotary switch |
Used to select the database required by the motor |
|
Self inspection
|
When the dial switch is selected, the motor performs two cycles of forward and reverse reciprocating motion, which can be opened or closed |
|
Error output |
The out port is photoelectric isolated OC output, with a maximum withstand voltage of 30VDC and a maximum saturation current of 100mA |
|
Corresponding characteristics |
||||||||
Product model |
SR2-Plus |
SR3-mini |
SR4-Plus |
SR8-Plus |
||||
Idle current |
√ |
√ |
√ |
√ |
||||
Anti resonance |
√ |
√ |
√ |
√ |
||||
control model |
√ |
√ |
√ |
√ |
||||
Input signal filtering |
√ |
√ |
√ |
√ |
||||
Subdivision interpolation |
√ |
√ |
√ |
√ |
||||
Motor matching rotary switch |
√ |
√ |
||||||
Self inspection |
√ |
√ |
√ |
√ |
||||
Error output |
√ |
√ |
√ |
|||||
Motor parameters |
||
Number of phase |
2 |
|
Step Angle |
1.8 |
|
Rated Voltage |
3.5V DC |
|
Rated Current |
1.0Amp |
|
Holding Torque |
0. 125N m Typ. Two phase on/rated current |
|
Phase Resistance |
3.5ohm±10%(20°C) |
|
Phase Inductance |
2.3mH±20%(1kHz 1V rms) |
|
Rotor Inertia |
18g.cm^2 |
|
Motor Weight |
0.2kg |
|
Insulation Class |
B(130°C) |
|
Product details and features
Anti resonance
One disadvantage of the stepping system is that there is an inherent resonance point. SR series driver automatically calculates the resonance point and adjusts the control algorithm to suppress the resonance. This technology greatly improves the stability of intermediate frequency and makes greater torque output at high speed.
Better high-speed performance
Subdivision interpolation
Subdivision is automatically inserted between low subdivision pulses to ensure smooth motion under low subdivision.
Smoother motion
Low speed torque smoothing
By analyzing the low-speed torque ripple, the corresponding harmonic components are offset to obtain a smooth low-speed motion.
Smoother low-speed motion
Input signal smoothing
The dynamic filtering of speed and direction signals can reduce the motion transients of motor and mechanical system, make the motor run more smoothly, and reduce mechanical wear at the same time.
Self test and automatic setting
When the system is powered on, the driver automatically detects motor parameters (such as resistance and inductance) and optimizes the operation performance of the system according to these parameters.
