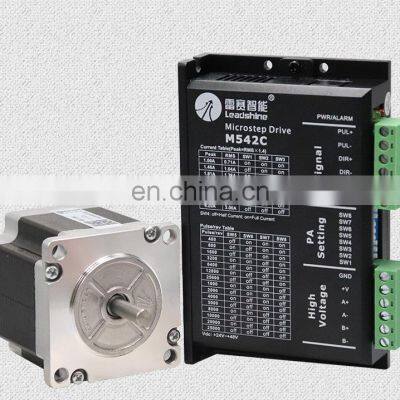

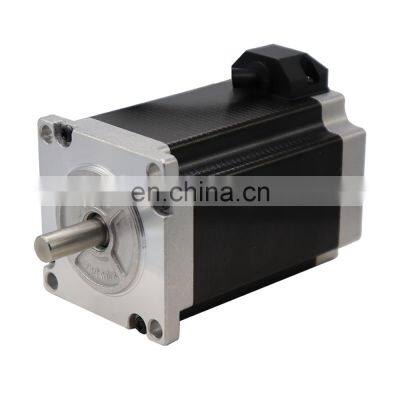

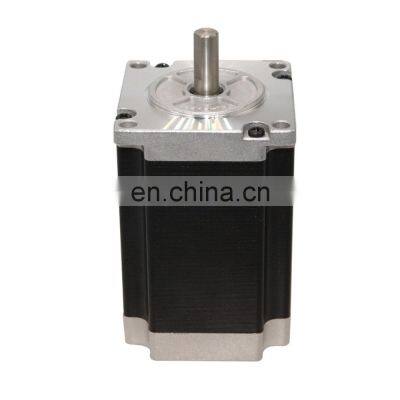

Help CenterLeadshine 57 Stepper Motor Driver Kit
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Leadshine M542C 57CM13 57CM23 57CM26 D57CM31 57 Stepper Motor Driver KitNegotiableMOQ: 1 -
2HSS86H+86J18156EC-1000 Jiemeikang 12NM 86 Closed Loop Stepper Motor Driver PackageNegotiableMOQ: 1
-
YAKOTEC 86 Stepper Motor Suit + 2D68MHNegotiableMOQ: 1
-
Japan Shinano Stepper Motor Set 59D5026 DC 42/57/60 Stepper Motor Motor Driver Control BoardNegotiableMOQ: 1
-
Japan Shinano Stepper Motor Set Motor Driver Control Board 59D5026 DC 42/57 Stepper MotorNegotiableMOQ: 1
Product Description
Specification
Step angle
|
2-phase 1.8 °
|
Frame No
|
57
|
Torque
|
0.6 ~ 3.1 NM
|
Temperature rise
|
85K Max
|
Ambient temperature:
|
- 10% C ~ + 50 ° C
|
Withstand voltage
|
500VAC
|
Motor model |
Body length MM
|
Static moment N.M
|
Rated current |
Resistance / phase Ω |
Inductance / phase mH |
rotor inertia g.cm2
|
57CM06 |
41 |
0.6 |
3A |
0.7 |
1.4 |
120 |
57CM13 |
56 |
1.3 |
4A |
0.42 |
1.6 |
300 |
57CM13-0-I8 |
56 |
1.3 |
4A |
0.44 |
1.7 |
300 |
57CM23 |
76 |
2.3 |
5A |
0.38 |
1.75 |
480 |
57CM26 |
84 |
2.6 |
5A |
0.44 |
2 |
520 |
D57CM21 |
67 |
2.1 |
6A |
0.21 |
0.75 |
570 |
D57CM31 |
88 |
3.1 |
6A |
0.26 |
1.18 |
840 |
Motor model |
Fuselage length L |
Shaft diameter D |
Bond height F |
57CM06 |
41 |
6.35 |
5.8 |
57CM13 |
56 |
6.35 |
5.8 |
57CM13-0-I8 |
56 |
8 |
7.5 |
57CM23 |
76 |
8 |
7.5 |
57CM26 |
84 |
8 |
7.5 |
D57CM21 |
67 |
8 |
7.5 |
D57CM31 |
88 |
8 |
7.5 |
Short frequency Curve Chart
Driver Parameter description
M542C
● new 32-bit DSP Technology |
● ultra low vibration and noise |
● built in high subdivision |
● power on automatic setting function |
● precise current control greatly reduces motor heating |
● the current will be automatically halved at standstill, and SW4 is selected |
● it can drive 4,6,8-wire two-phase stepping motor |
● optically isolated differential signal input |
● impulse response frequency up to 200kHz (higher can be changed) |
● the current setting is convenient and can be arbitrarily selected between 0.7130a (effective value) |
● 4-digit dial code, adjustable 15 gear subdivision (1 gear reserved) |
● it has overvoltage, short circuit and other protection functions |
Electrical index |
||||||||
minimum value |
Typical value |
Maximum |
Company |
|||||
Output current (peak) |
1.0 |
- |
4.2 |
A |
||||
Input power supply voltage |
20VDC |
24/36VDC |
50VDC |
V |
||||
Control signal input current |
7 |
10 |
10 |
mA |
||||
Step pulse frequency |
0 |
- |
- |
KHz |
||||
insulation resistance |
100 |
MG |
||||||
Operating environment and parameters |
||
Cooling mode |
Natural cooling or forced air cooling |
|
occasion |
It shall not be placed next to other heating equipment. It shall avoid powder oil mist, corrosive gas, combustible gas and conductive dust in places with too high humidity and strong vibration; |
|
Temperature |
0-50℃ |
|
humidity |
40-90%RH |
|
Vibration |
10 ~ 55Hz / 0.15mm |
|
Storage temperature |
20 ℃ ~ 65 ℃ |
|
weight |
230 G |
|
