GUNT-150iMD Milling Machine CNC System of Machining Center CNC Controller CNC Machining Center
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GUNT-335iMa Cnc Machining Center CNC System of Milling Machine CNC ControllerNegotiableMOQ: 1 -
GUNT-335iMa CNC System of Milling Machine CNC Controller Cnc Machining CenterNegotiableMOQ: 1
-
GUNT-330iMa CNC Machining Center CNC System of Milling Machine CNC ControllerNegotiableMOQ: 1
-
GUNT-330iMa CNC System of Milling Machine CNC Controller CNC Machining CenterNegotiableMOQ: 1
-
GUNT-130iMe CNC System of Milling Machine CNC Controller Cnc Machining CenterNegotiableMOQ: 1
（Contact customer service to understand product model and price）
Product Description

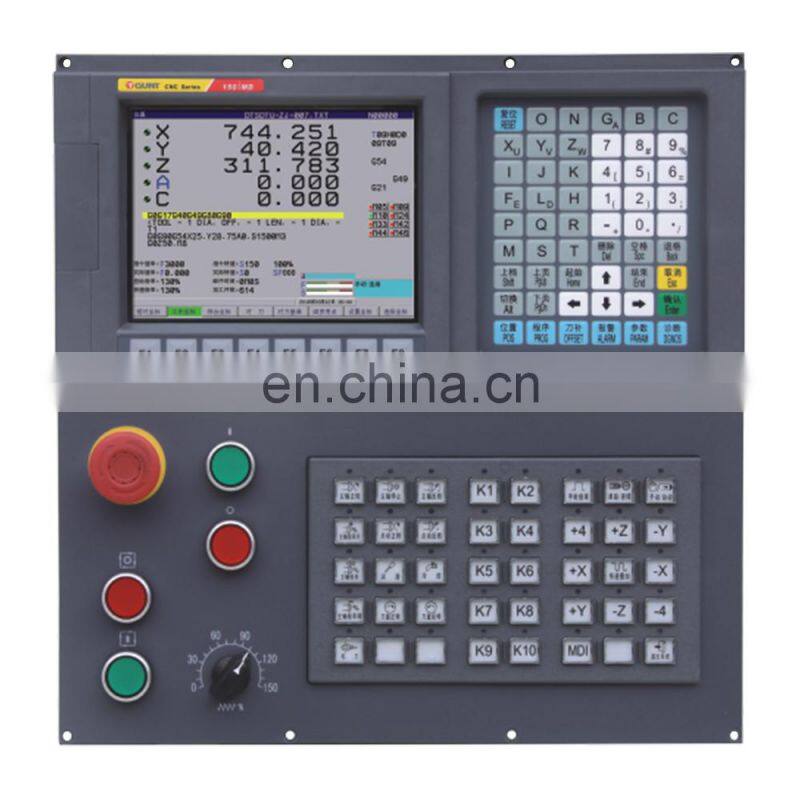

GUNT-150iMD
Milling machine,CNC system of machining center
The GUNT-150iMD CNC system upgrades the software and hardware on the basis of the previous generation. Through the high-performance processor, it enables fast data operation, higher real-time performance, high system stability, stronger control function, simple operation, and configures the absolute value encoder to achieve high-speed and high-precision control.

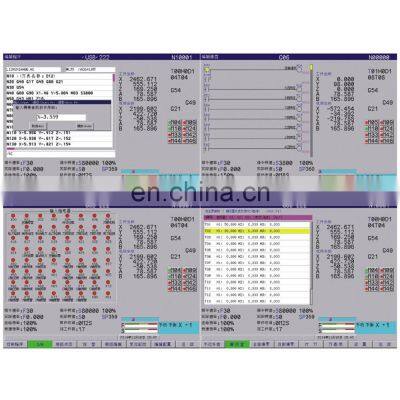

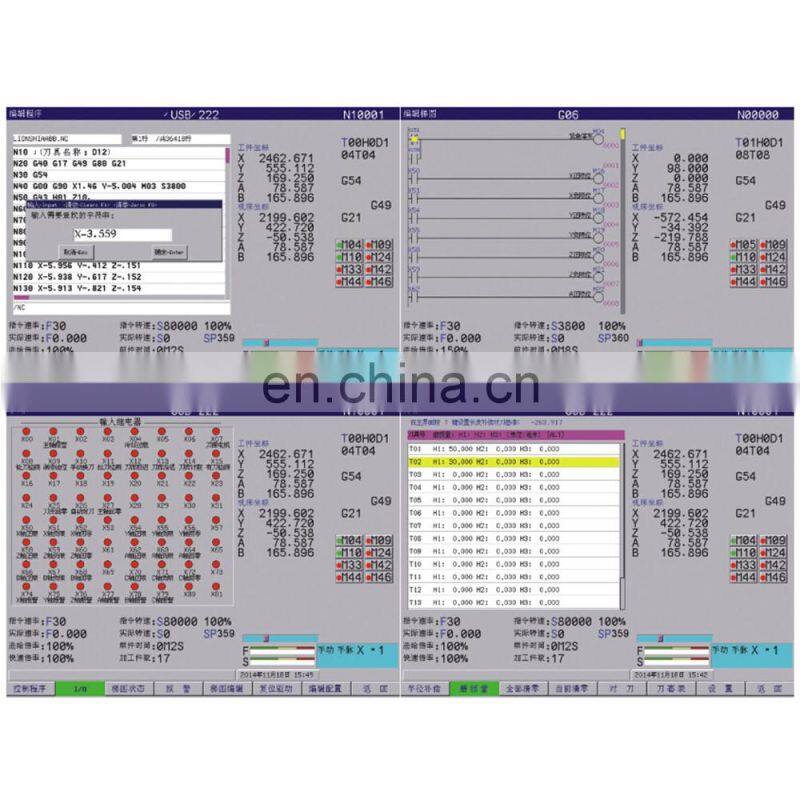

Operation interface
Specification
●Number of control axis: 3-5 axis +1 spindle |
●Number of linkage axis: 2 to 5 axis for straight line and 3 axis for arc |
●Industrial grade 32-bit processor, main frequency 1GHz |
●User storage space is 100m |
●Interpolation period 2ms |
●Minimum control accuracy: 1um, maximum speed: 240m/min |
●Display resolution: 800x600, 8-inch TFT display |
Special advantages | ||
Speed advantage | ●The maximum fast moving speed can reach 60m/min ●The maximum cutting speed can reach 20m/min ●Program pretreatment can realize smooth and seamless connection between program segments (lines), especially suitable for mold processing and engraving and milling equipment | |
Accuracy advantage | ●Lead screw pitch compensation to maximize the machining accuracy of the machine tool ●Pulse equivalent: the maximum accuracy can be set to 0.1mm | |
Interface advantages | ●Built in PLC function with i/o number of 48x32, users can edit i/o logic control by themselves ●USB removable U-disk copy interface, DNC function of U-disk and external mass memory ●The transmission rate of RS232 communication interface reaches 115200bit, which is used for program parameter transmission and RS232DNC function ●It can be equipped with hanging handwheel or panel handwheel, and band switch interface ●Spindle speed frequency conversion can realize two-way control, that is, two spindles can be controlled, and a variety of tool libraries can be controlled to adapt to different types of machine tools | |
operation advantage | ●Full screen editing system, front and rear operation, can realize programming, parameter modification and other operations at the same time in the processing process ●Before machining, 2D and 3D graphics preview and simulation run; During machining, coordinate display, 2D and 3D graphics display can be switched freely, and graphics can be enlarged, reduced, translated and rotated freely ●It can realize multi-level password protection, such as program and parameter protection, which is convenient for field equipment management ●Chinese and English interface switching ●n the process of machining, single segment and continuous switch at will ●Any program segment starts machining, and any tool number starts machining ●Real time adjustment of spindle and feed speed. ●Compatible with foreign mainstream CNC system instruction codes, most programs can run directly without modification ●Graphic dialog function ●The system adds the full spelling Pinyin input method, and the program editor can input Chinese characters | |
FAQ
Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
