DENVER Four Axis Universal Manipulator Controller CNC Controller
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DENVER Glue Dispensing and Cutting of Linear Plane Arc Complementary Stacking Four Axis Universal Manipulator ControllerNegotiableMOQ: 1 -
DENVER Universal Manipulator Controller 4-axis High-performance Independent Motion Controller Supporting G Code ProgrammingNegotiableMOQ: 1
-
DENVER 4-axis Universal Manipulator Controller With Built-in Fram and Flash Chip CNC ControllerNegotiableMOQ: 1
-
DENVER Intelligent Gluing Machine Control System Advertising Machine ControllerNegotiableMOQ: 1
-
DENVER Intelligent Gluing Machine Control System CNC ControllerNegotiableMOQ: 1
Product Description
Four axis universal manipulator controllerLinear plane arc interpolation, palletizing, dispensing and cutting
The controller is developed based on CMC chip and supports 4-axis high-performance independent operation with G code programming.

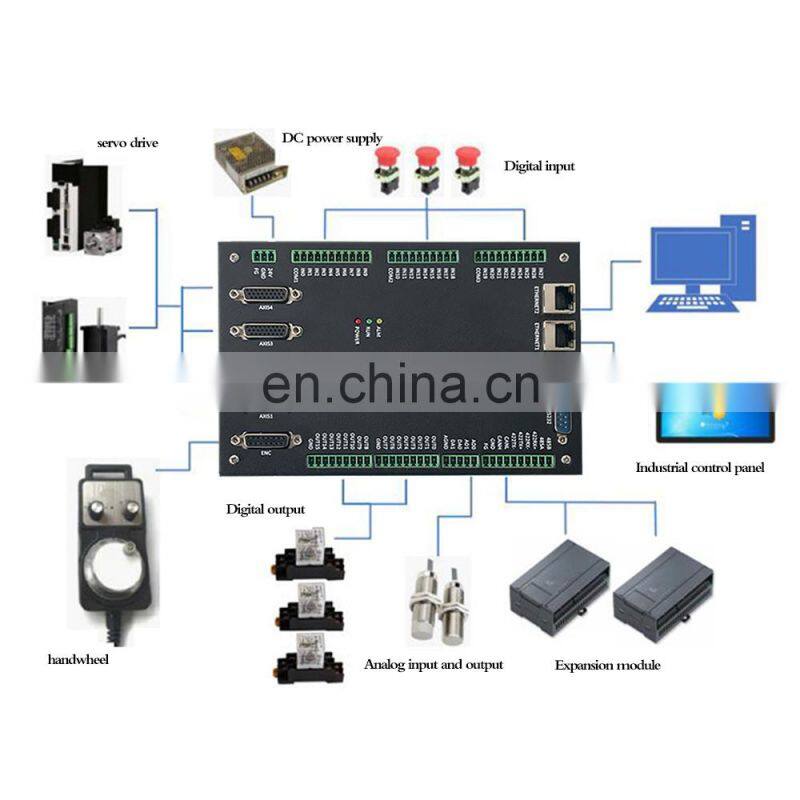

Pneumatic controller. It provides 4-axis motor control output interface, 4-channel encoder input interface, 1-channel handwheel shaft, general I / O signal interface, high-speed PWM signal interface, 10 / 100M adaptive Ethernet interface, RS485, RS422, RS232, CANopen and other communication interfaces. At the same time, it also has ADC and DAC input and output interfaces, supports external SD card storage function, and has built-in fram and flash chips.
MCS-200 supports four axis three linkage, spatial linear interpolation, plane arc interpolation, jog jog, mechanical origin return, variable speed operation, linear acceleration and deceleration, S-curve acceleration and deceleration and other functions.
Specification
● it can control the movement of 4-axis motor and detect the signal of 4-axis encoder at the same time |
● support differential output pulse, direction and enable signal |
● it supports the configuration function of hand wheel movement, and one shaft can be configured to follow the hand wheel |
● maximum output pulse frequency of each axle 4MHz |
● realize the expansion of shaft and I / O port through CAN bus |
● the output of I / O port is open drain output, and the maximum output current is 300mA |
● support SD card data storage |
● support power down detection and power down storage |
● support high-speed latch and zero point latch |
● support four axis three linkage |
● support spatial linear interpolation and plane arc interpolation |
● support analog input and output detection |
● support PWM output function, with adjustable duty cycle and frequency |
● support controller cascade |
● support I / O expansion function |

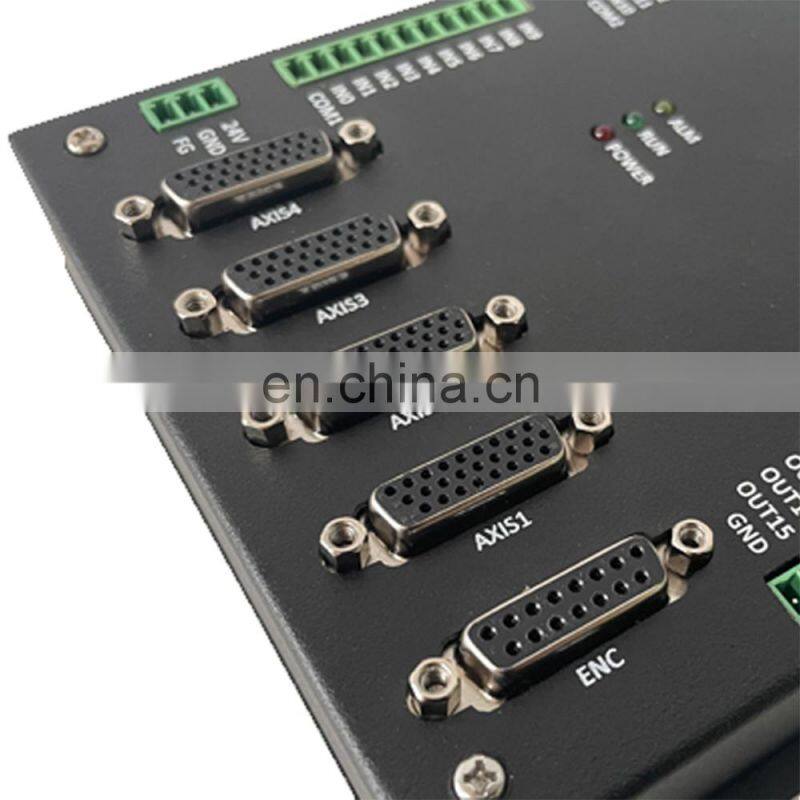

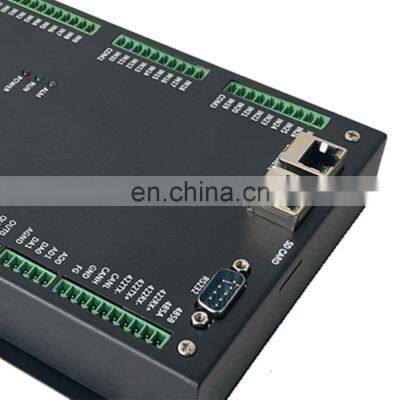

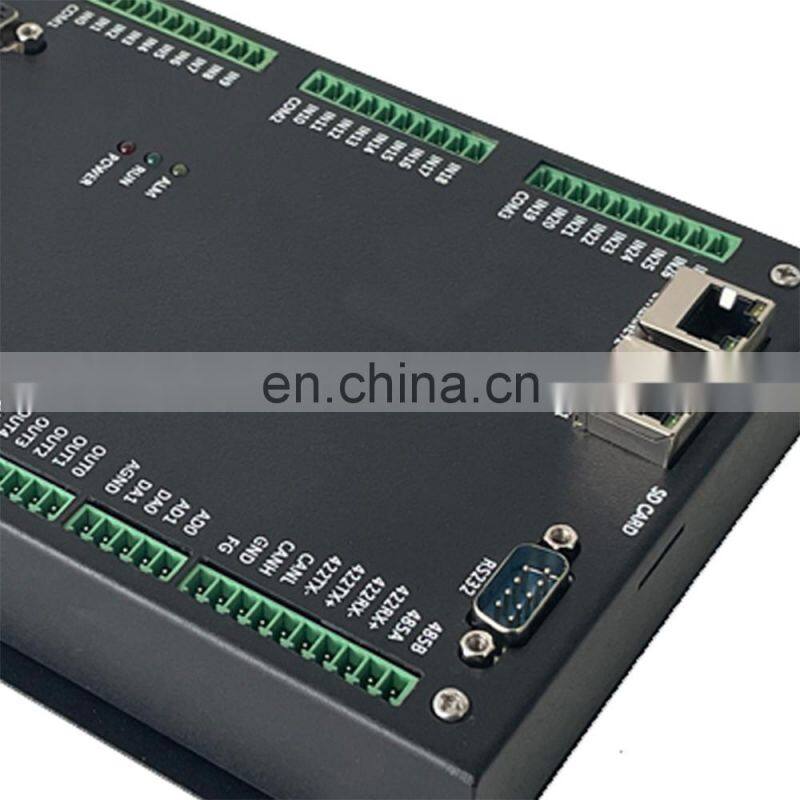

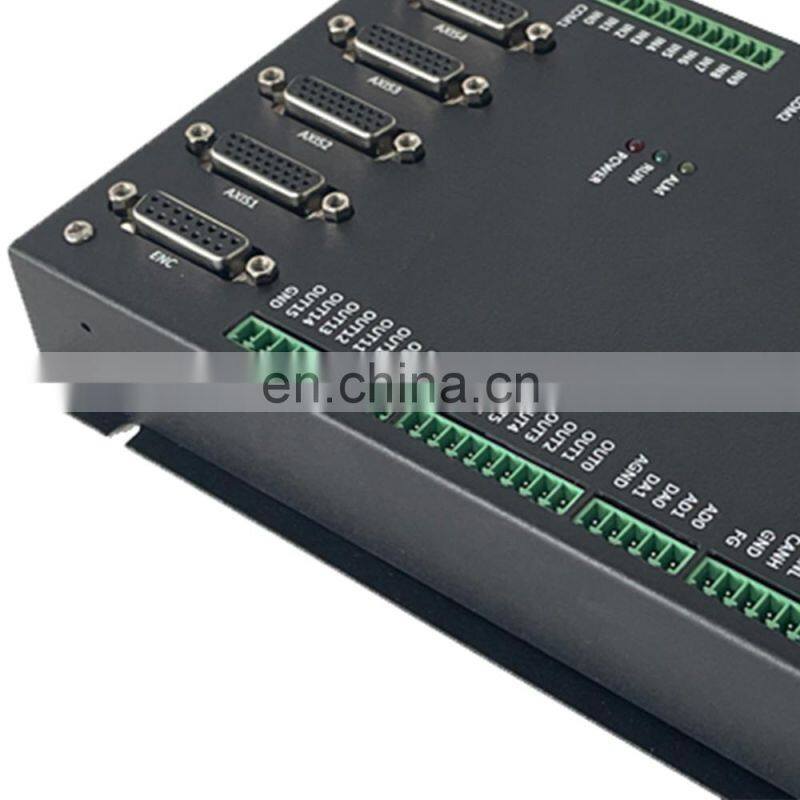

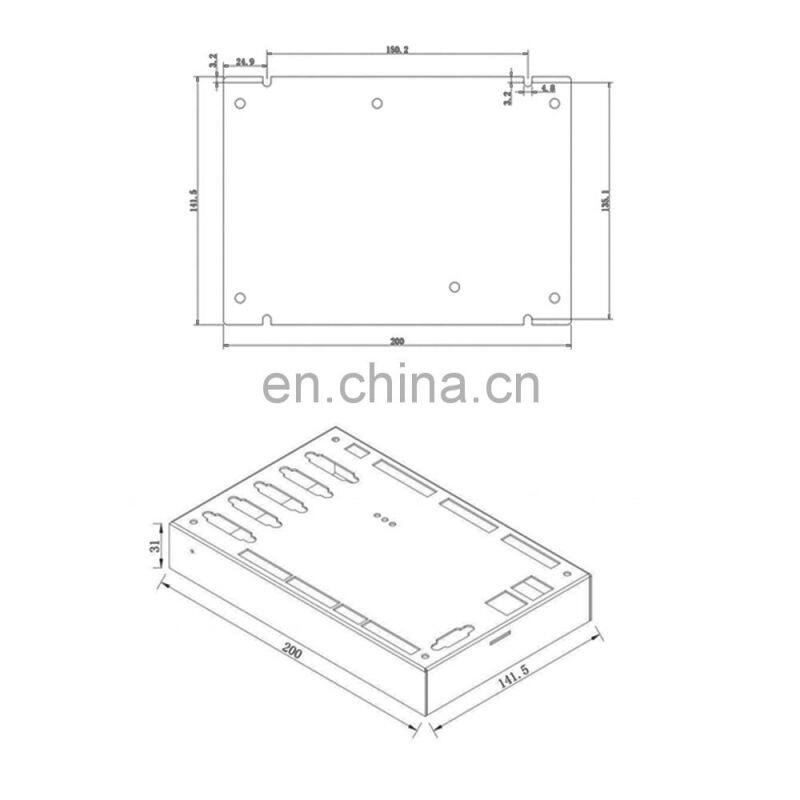

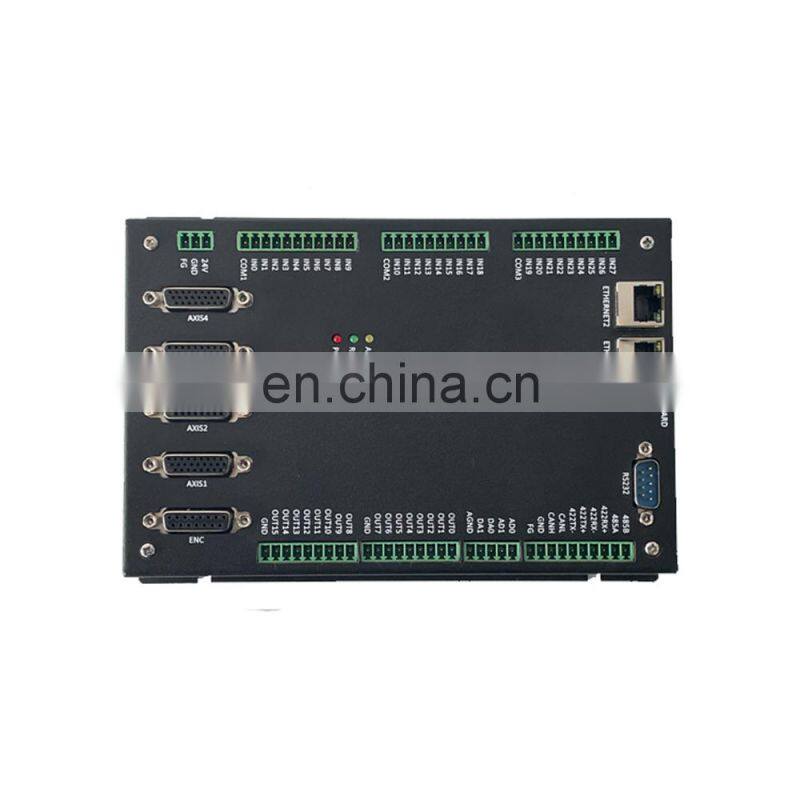

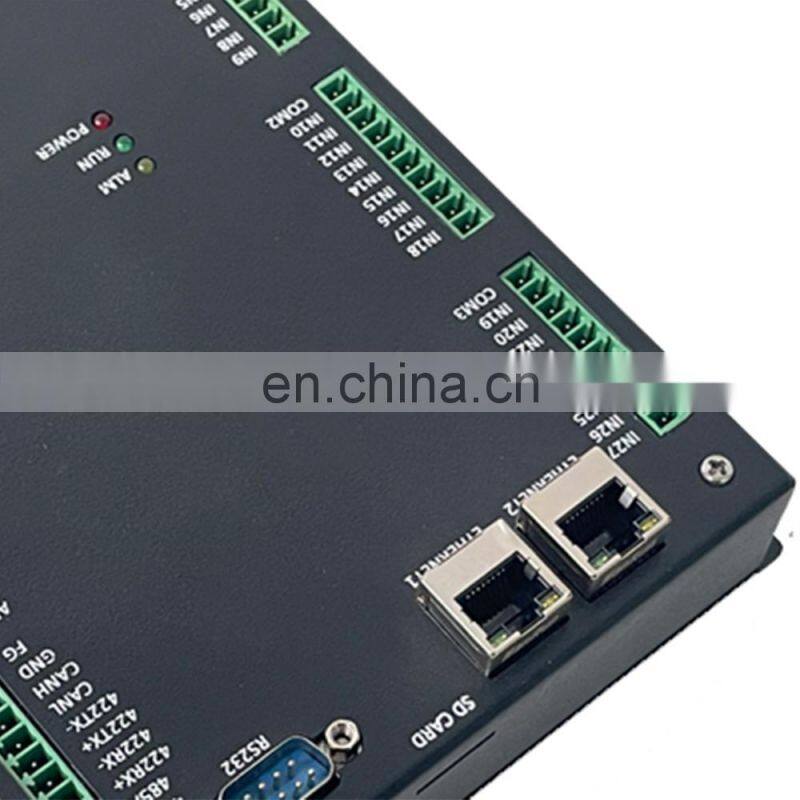

Product detail drawing

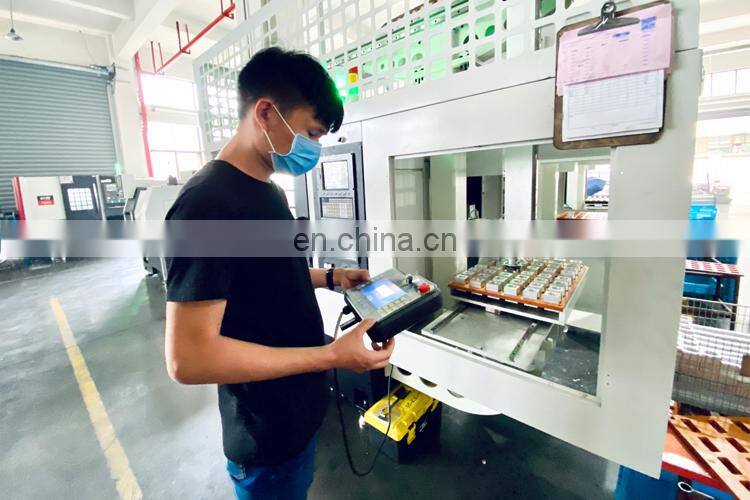

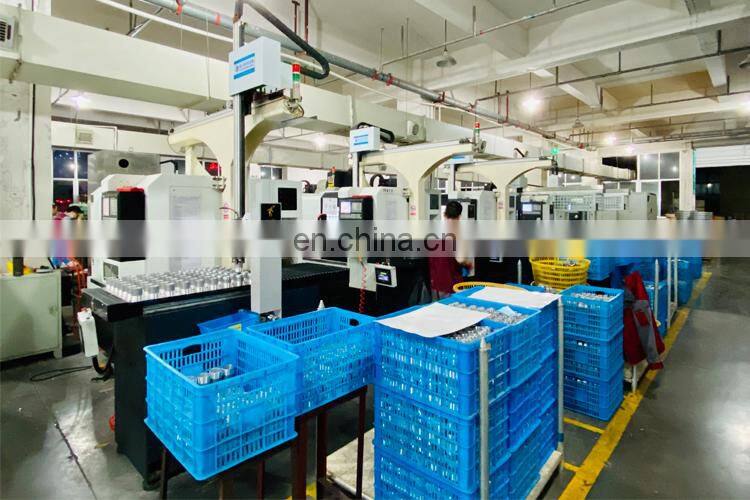

Factory site map
Packing & Delivery
FAQ
Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
