NK300CX Series Integrated Numerical Control System 3-4 Axis Cnc Controller Attractive Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NK300CX Series Integrated Numerical Control System 3-4 Axis Cnc Machining Center Attractive Price Cnc ControllerNegotiableMOQ: 1 -
NK300CX Series Integrated Numerical Control System 3-4 Axis Cnc Controller Manufacturer's Original CNC Control CenterNegotiableMOQ: 1
-
Richauto B18 CNC Milling Machine 4 Axis 3D Engraving Motion Control System for Stone Processing IndustryNegotiableMOQ: 1
-
Richauto B15 Cylinder Multi-tool Head Control System 3-axis Independent CNC Controller is the DSP Controller of CNC RouterNegotiableMOQ: 1
-
Richato DSP Control System B11 is Used in the Three Axis Motion Control System of CNC RouterNegotiableMOQ: 1
Product Description
NK300CX Series Integrated numerical control system
Specification
Model |
NK300BX-H / NK300BX-V |
Number of standard control axes |
3 - 5 Axis |
CPU Kernel number |
Binuclear |
CPU frequency |
2.17GHz |
Memory |
2GB |
Hard disk capacity |
60GB |
Network port |
1000Mbps |
Display size |
10.4 inch display |
resolving power |
800×600（SVGA） |
I/O
|
Standard configuration: I28 / O8, maximum support for expansion board: 8 / 8 (non cascade); 10 / 10 (cascade) |
performance index |
●After electromagnetic interference, group pulse and surge test, the product meets the fourth level protection standard of GB / T 17626.5-2008 ●The seismic resistance meets the standard of GB / T 2423.10-2008
●After high and low temperature test, it meets the
industrial standard (GB / T 2423.102-2008) |
Analog voltage output |
0-10V control |
Magazine type |
Support direct row ，Disc magazine |
Tool setting mode |
Support automatic ，Manual tool setting |
Tool setting type |
Fixed tool setting, floating tool setting, first tool setting / tool setting after tool change |
Circular interpolation |
Three axis linkage |
Compensation mode |
Lead screw error compensation, reverse clearance compensation, image error compensation, tool compensation |
Supported file formats |
*.g；*.nc；*.ug;*.demo;*.iso;*.eng;*.cut;*.dxf;*.plt;*.txt |
Internet |
Establish local area network and front USB interface to realize two-way transmission with PC |
Coordinate system setting |
It supports G54-G59 coordinate system and 119 extended coordinate systems |
Processing technology |
Array function, rotating mirror image, layered processing, circular processing |
Software language |
Support Chinese and English |
Optimize multiple interpolation algorithms |
T-shaped, S-shaped, LEP, acceleration trapezoid |
NC software alarm |
Program error, operation error, over range error, PLC error, IO communication error |

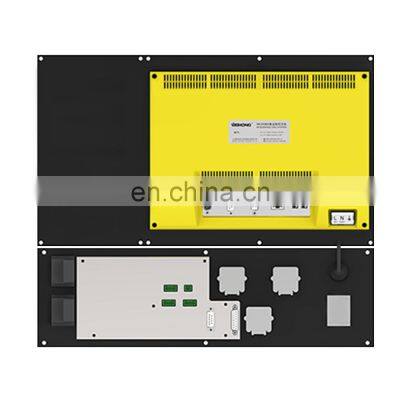

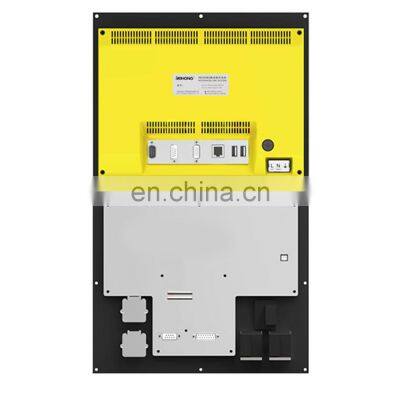

Product detail drawing
