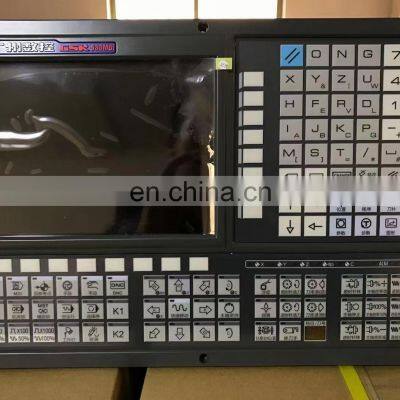

GSK 980MDi Guangzhou CNC System of Drilling and Milling Machine CNC Controller Manufacturer's Original CNC System
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GSK 980MDi Guangzhou CNC Machining Centre CNC System of Drilling and Milling Machine CNC ControllerNegotiableMOQ: 1 -
GSK 980TC3 980TC3-V Guangzhou CNC Bus Type Lathe Numerical Control System 5- Axis CNC ControllerNegotiableMOQ: 1
-
Bus Type Lathe Numerical Control System Cnc Machine Center 5axis Lathe GSK 980TC3 980TC3-VNegotiableMOQ: 1
-
GSK 980MDc-wodsaw Guangzhou CNC Numerical Control System of Woodworking Saw MachineNegotiableMOQ: 1
-
GSK 980MDc-wodsaw Guangzhou CNC Numerical Control System of Woodworking Saw Machine Software Version V 3.03wodsawNegotiableMOQ: 1
Product Description
CNC system of GSK 980MDi drilling and milling machine
Based on GSK Link Industrial Ethernet bus control technology, GSK 980mdi is equipped with bus servo drive unit and servo motor of absolute encoder as standard, realizing 5-axis 5 linkage and minimum command unit of 0.1um. Support servo parameter online configuration, servo status online monitoring and other functions. It has the functions of on-line drilling and slot milling cam, on-line programming wizard, plane milling automatic programming and so on. It supports the expansion of I / O through GSK link bus, and can adapt to disc magazine and hat magazine to meet the needs of machining centers and special machine tools.

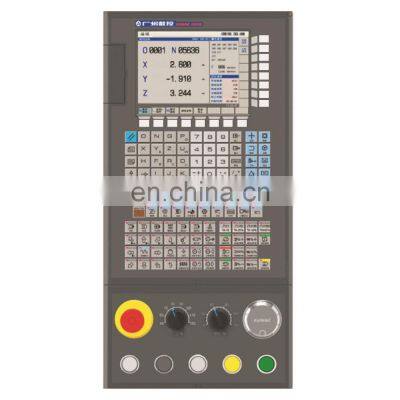

GSK 980MDi

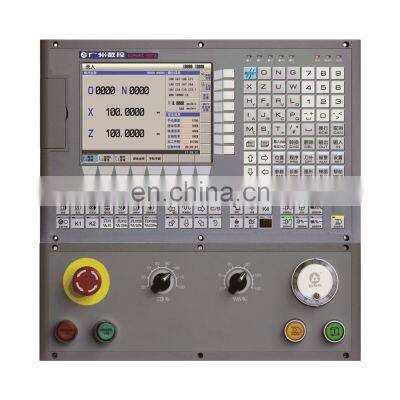

GSK 980MDi-H
GSK 980MDi-V
Product features
New appearance structure, double row soft function keys |
GSK Link Industrial Ethernet bus control |
5-axis 5 linkage control, minimum control accuracy 0.1 μ m. Maximum moving speed 100M / min |
Online cam function |
It supports on-line servo parameter configuration, real-time servo status monitoring and mechanical zero return without stop |
It has the functions of programming wizard and automatic programming of plane milling |
It supports I / O unit expansion and can be adapted to disc and hat magazine |
Bus type strong overload servo unit is equipped as standard, and 17 bit line encoder is used for servo motor position feedback |
The bus type spindle servo drive unit can realize spindle orientation, rigid tapping, cylindrical interpolation and indexing table control |
Specification
Number of control axes
|
Maximum number of control axes: 5 axes (optional 6 axes) |
Number of PLC control axes: 5 axes |
|
Maximum number of linkage axes: 5 axes (linear interpolation), 3 axes (spiral interpolation), 2 axes (arc interpolation) |
|
Coordinate value (system) and size
|
Local coordinate system, machine tool coordinate system and workpiece coordinate system 1-6 (g54 ~ G59) |
Coordinate plane selection |
|
Position command range: ± 9999999 × Minimum input unit |
|
Absolute / incremental programming, English / metric conversion, linear axis / rotary axis |
|
Preparation function
|
85 g instructions, including fast positioning, interpolation, automatic chamfering, tool compensation, metric and British system input, coordinate rotation, scaling, mirroring, sentence macro instructions, macro program call, jump, cycle instructions, small segment forward-looking, etc |
Feed function
|
Fast moving speed: 0mmmn ~ 100000mm / min |
Fast magnification: F0, 25%, 50% and 100% four levels of real-time adjustment |
|
Cutting feed rate: 0mm / min ~ 15000 mm / min |
|
Feed rate: 0 ~ 150%, 16 levels in total, real-time adjustment 报错 笔记 |
|
Bus function
|
Servo motor adapted to multi turn absolute position encoder |
The absolute coordinate system is automatically restored after the machine tool is powered off |
|
Mechanical zero return of machine tool without stop |
|
Online modification of servo parameters |
|
Servo status online diagnosis |
|
Operation log |
|
Remote monitoring and fault diagnosis function |
|
Spindle function
|
Spindle speed: it can be given by s code or PLC signal, and the speed range is orpm ~ 9999rpm |
Spindle magnification: 50% ~ 120%, a total of 8 levels of real-time repair and adjustment |
|
2 channels of 0 ∨ ~ 10V analog voltage output |
|
Support analog spindle m-shift and τ Type shift function, flexible tapping / rigid tapping |
|
2-way spindle encoder feedback, the number of spindle encoder lines can be set (0 or 100p / R ~ 5000P / R)
|
|
Tool function
|
Tool length compensation (tool offset): 32 groups |
Tool wear compensation: 32 groups |
|
Tip radius compensation (type C) |
|
PLC function
|
Two level PLC program, 5000 steps at most, and the refresh cycle of level 1 program is 8ms |
13 basic commands and 31 functional commands |
|
PLC program online display and real-time monitoring; Support PLC warning and PLC alarm |
|
Basic I / O: 48 inputs / 38 outputs |
|
Expandable serial I / O unit (optional): or-44t: 48 point input, 32 point output, 4-channel analog voltage output |
|
Auxiliary function |
Special m codes (M00, M01, M02, M30, M98, M99), and other m codes are defined by PLC |
Program capacity: 64M, 10000 programs (including subroutines and macro programs) |
|
Editing method: full screen editing |
|
Editing functions: program segment word retrieval, modification, deletion, copy and paste |
|
MDI allows you to input and run 8 program segments |
|
Support macro program / subroutine calling, and allow 4-fold subroutine nesting |
|
Calculator, online programming wizard, online drilling cam function, automatic programming function of plane milling |
|
Program check function |
Track preview, graphic simulation, idle operation, machine tool lock, auxiliary function lock, single section operation |
Simplify programming functions |
Fixed cycle, compound cycle, drilling cycle, rigid tapping, automatic chamfering, sentence macro instruction programming, indexing function of indexing table |
Reverse clearance compensation: 0mm ~ 2mm (or 0 inch ~ 0.2inch). The reverse clearance compensation mode and frequency are set by parameters |
|
Memory pitch error compensation: a total of 1024 compensation points, and the number of compensation points of each axis is set |
|
interface
|
Support Chinese, English, Russian and other languages |
The processing track is displayed, and the processing track is enlarged, reduced, translated and the viewing angle is switched in real time |
|
Position, program, tool compensation, alarm, parameter, setting, graphics, diagnosis, ladder diagram |
|
Communication function
|
USB: ∪ disk file operation, ∪ disk file direct processing, support PLC program and system software ∪ disk upgrade |
RS232: bidirectional transmission of part programs, parameters and other files, supporting PLC program update |
|
LAN: remote file transfer |
|
Electrical grounding |
48 / 38 point digital input / output interface, 2-way encoder interface, 2-way handwheel interface, 2-way spindle analog interface, RJ45 network port and gskl Ⅰ NK network port |
Safety function |
Emergency stop, hardware travel limit, software travel check, data backup and recovery |
Product physical drawing
Packing & Delivery
FAQ
Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
