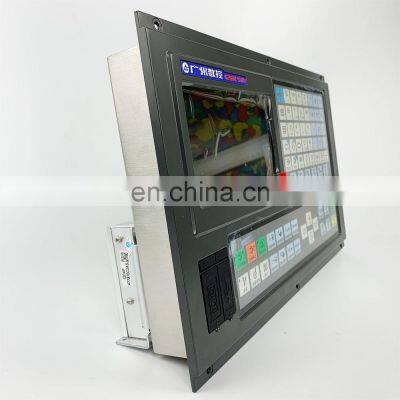

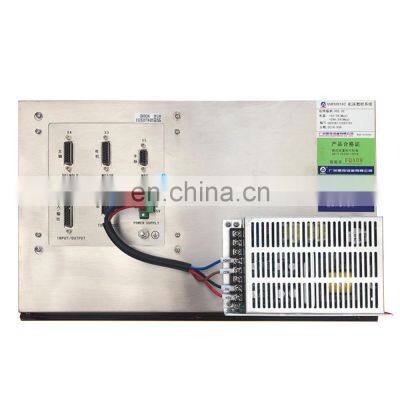

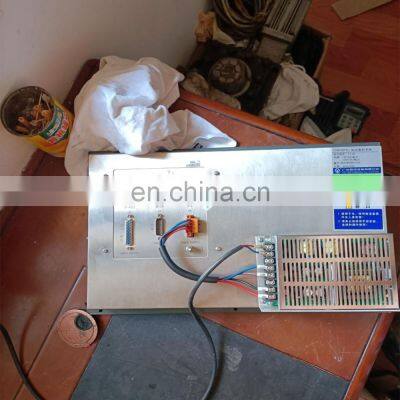

GSK-928TA2 Guangzhou CNC lathe system CNC controller Factory original hot sale Manufacturer's original CNC system

Simultaneous control axis (interpolation axis): 2 axes (x, z)

Interpolation function: X, Z axis straight line, arc and thread interpolation

Position command range: - 9999.999mm ~ 9999.999mm; Minimum instruction unit: 0.001mm

Electronic gear: Command multiplication coefficient 1 ~ 999999, command frequency division coefficient 1 ~ 999999

Fast moving speed: up to 20000 mm / min; Fast magnification: F25%, 50%, 75% and 100% four-level real-time adjustment

Cutting feed speed: up to 6000 mm / min; Feed rate: 0 ~ 150% sixteen level real-time adjustment

Manual feed speed: 0mmmn ~ 1260mmmn 16 levels of real-time adjustment, or the feed speed can be customized immediately

Hand pulse feed: three gears of 0.001mm, 0.01mm and 0.1mm

Acceleration and deceleration: exponential acceleration and deceleration or linear acceleration and deceleration can be selected for cutting feed

39 g commands, including straight line, four arc, thread machining and various fixed cycle and compound cycle functions

It can process single head and multi head metric and British straight thread, conical thread and end face thread; Thread tailing length, angle and speed characteristics can be set, high-speed tailing processing; Thread pitch: 0.001mm ~ 500mm or 0.06 tooth inch ~ 25400 tooth inch; Thread processing has tapping function.

Spindle encoder: encoder line number, settable range: 100pr ~ 5000P; Transmission ratio between encoder and spindle: 1:1

Reverse clearance compensation: 0mm ~ 10.000mm

Tool compensation: 16 tool positions and 64 groups of tool length compensation

There are 42 basic m auxiliary function commands;

Up to 16 tool positions (T01 ~ T16), set the tool holder type parameters to select the control process of tool change; When using tool arrangement, the tool holder type is set to 0.

Speed switching value control mode: s command gear 4 direct control output range is s01-s04; Or 16 gear BCD coding output range is s00-s15; Speed analog voltage control mode: s command code gives spindle speed per minute or cutting linear speed (constant linear speed control), outputs 0 √ ~ 10V voltage to spindle frequency converter, spindle stepless speed change, and supports 4 spindle mechanical gears M41 ~ M44.

I / O function diagnostic display

I / O port: 23 point input and 18 point output

Controllable spindle, chuck, tailstock, tool holder, cooling, pressure detection, external start pause, feed holding knob and other devices

Controllable tricolor lamp, hand pulse, protective door, lubrication, headbox lubrication, shift unit

M50 ~ M74 custom instructions realize special function control

Support external operation: 16 buttons, 8 knobs, 8 foot switches or system 1-8 digital keys control 8 m execution (m61-m68)

Calling custom alarm content display in M84 operation

M50 ~ M74 can observe the status of the specified I / O

You can remotely view the working mode or state switching changes of the system

Reset emergency stop call M73 / M74 command

Tool change is realized by writing user-defined instructions

Display: 800 × 480 dot matrix, true color liquid crystal display (LCD)

Display mode: Chinese or English display interface is set by parameters; It can display the machining path graphics in real time;

Program capacity: up to 255 programs, with a total program capacity of 4400kb

Editing method: full screen editing, support mixed programming of relative absolute coordinates, support program call, and support multiple nesting of subroutines

With USB interface; CNC and USB two-way transfer program, parameters and tool compensation; Support USB Download and upgrade of system software

It is only suitable for Guangzhou CNC DAD08A dual axis AC servo drive
