A11 Ruizhi Tianhong Handle Engraving Machine Handle Control System DSP Motion Control
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Alfat CNC Controller of CNC Lathe System 990TDBNegotiableMOQ: 1 -
Alfat 990TDB CNC Controller of CNC Lathe SystemNegotiableMOQ: 1
-
V20 Frequency Converter Siemens 0.37/0.55/0.75/1.1/1.5/2.2/3/4/5.5/7.5/11kwNegotiableMOQ: 1
-
CNC-H6DS-T CNC Control System CNC Controller HUSTNegotiableMOQ: 1
-
NEW CNC Controller HUST-CNC-H6DS-T CNC Control SystemNegotiableMOQ: 1
Product Description
Rich Auto 3 Axis Linkage Motion Control
(For other specifications and models, contact customer service for negotiation)
Product line: A1X Series |
Size: three inch monochrome screen |
Recommended industry: Woodworking machinery |
Controllable I / O: 8 input、 8 output |
Number of linkage axes: Three axis screen |
Product model: Rich Auto -- A11 |
Specification
Product number |
Rich Auto----A11 |
processor |
DSP |
Built in memory |
512MB |
Display |
128*64 3-inch monochrome LCD |
Communication port |
USB flash disk, USB Data Line |
Number of linkage axes |
3 Axis |
Control signal |
Differential signal |
Driving system |
Stepper / servo motor |
Minimum input unit |
0.001mm |
Power down protection function |
support |
Breakpoint processing function |
support |
External supply voltage |
DC 24V |
Manual mode |
Continuous, inching, distance |
Interpolation mode |
Line, arc, spline |
Soft / hard limit |
support |
Maximum pulse frequency |
1MHz |
Password protection |
support |
Support language |
Simplified / traditional Chinese, English and other languages can be customized |

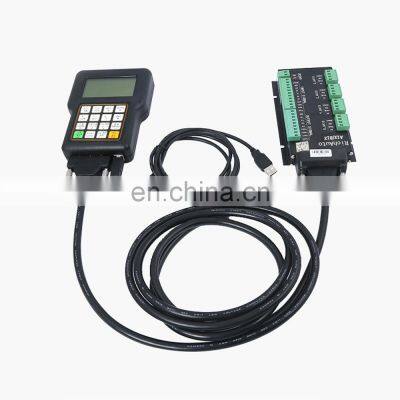

Standard configuration |
1 handle controller、One 50 pin data line、1 USB data cable、One 8-in-8-out terminal block、1 data disc |
50 pin data cable
USB 2.0 Connecting line
Product features
● The new three-axis motion mode realizes comprehensive control
● Support XYZ driver and spindle frequency converter processing error alarm function
● Large storage space, strong U-disk compatibility, fast reading speed and more reliable U-disk processing
● Intelligent document checking function
● It has the function of parameter backup and recovery, which effectively prevents the loss of important parameters
● Stronger anti-interference performance and passed many CE tests
● intelligent processing memory function,Support breakpoints,Power down function
● I / O interfaces that can be customized and edited to provide users with a wide range of development platforms

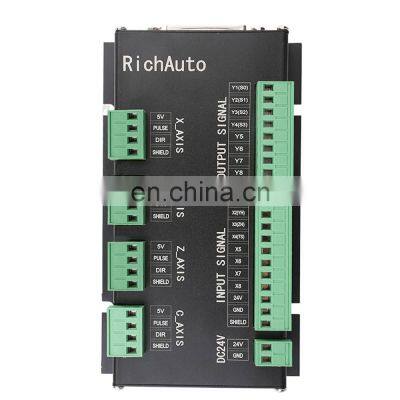

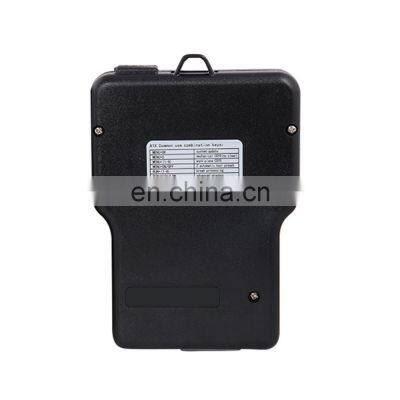

Product display
Product packaging
FAQ
Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
