GSK-980TDc Guangzhou CNC Lathe System CNC Controller
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GSK-988TA Guangzhou CNC Lathe System CNC ControllerNegotiableMOQ: 1 -
GSK-980MDC Guangzhou CNC Lathe System CNC ControllerNegotiableMOQ: 1
-
GSK 928TEa Guangzhou CNC Controller 3 Axis Popular Original CNC SystemNegotiableMOQ: 1
-
GSK-988TA Guangzhou CNC Latest Spot CNC Lathe System CNC ControllerNegotiableMOQ: 1
-
GSK-988TA Latest Spot CNC Lathe System CNC Controller Guangzhou CNC Controller 3 AxisNegotiableMOQ: 1
Product Description
Guangzhou CNC GSK-980TDc CNC lathe System
Guangzhou CNC has lathe CNC system, drilling and milling machine CNC system、
CNC system of machining center、CNC systems in many fields such as grinding machine CNC system.
(Be careful：For detailed specifications, models and inquiries, contact customer service for negotiation)
Specification
Product features:
◆ 5 feed axes, 2 analog spindles
◆ minimum control accuracy 0.1 μ m. Maximum moving speed 60m / min
◆ gs2000t-n series strong overload servo unit is equipped as standard, and 5000 line encoder is used for servo motor position feedback
◆ adaptive servo spindle can realize spindle orientation, rigid tapping, cylindrical interpolation and polar coordinate interpolation
◆ built in PLC, ladder diagram online display, real-time monitoring, expandable serial I / O unit
◆ it has the functions of hand pulse trial cutting, teaching and hand pulse interruption
◆ it has the functions of on-line machine tool debugging wizard, auxiliary programming, interface customization, direct graphic size input, polygon turning, etc
◆ MDI multi segment execution
◆ 40m program storage space, 10000 part programs, supporting U disk program processing
◆ level 6 operation authority management, 32 time limited shutdown settings
◆ 8.4-inch true color LCD, supporting Chinese, English, Russian and other multilingual displays
Number of control axes |
Maximum number of control axes: 5 axes |
Maximum number of linkage axes: 5 axes (linear interpolation), 2 axes (circular interpolation) |
Number of PLC control axes: 5 axes |
Coordinate system And size |
Workpiece coordinate system (G50), local coordinate system, workpiece coordinate system 1 ~ 6 (g54 ~ G59) |
Coordinate plane selection |
Position command range: ± 9999999 × Minimum input unit |
Absolute / incremental programming, diameter / radius programming, imperial / metric conversion, linear axis / rotary axis |
Preparation function |
It contains 61 g commands, including fast positioning, linear interpolation, arc interpolation, cylindrical interpolation, thread cutting, polar interpolation, polygon turning, rigid tapping, pause, tool compensation, macro program call, jump, cycle, etc |
Feed function |
Fast moving speed: μ Class (is-b) 0 mm / min ~ 60000 mm / min 0.1 μ Class (is-c) 0 mm / min ~ 24000 mm / min |
Fast magnification: F0, 25%, 50% and 100% four levels of real-time adjustment |
Cutting feed rate: μ Class (is-b) 0 mm / min ~ 30000 mm / min 0.1 μ Class (is-c) 0 mm / min ~ 24000 mm / min |
Feed rate: 0 ~ 150%, 16 levels in total, real-time adjustment |
Rapid movement / cutting feed acceleration and deceleration: linear type. The start speed, end speed and acceleration and deceleration time of acceleration and deceleration are set by parameters |
Thread cutting |
Thread type: equal pitch straight thread / tapered thread / end face thread / circular arc thread, variable pitch straight thread/ tapered thread / end face thread |
Number of thread heads: 1 ~ 99 |
Thread pitch: 0.01mm ~ 500mm (metric thread) or 0.06 thread / inch ~ 2540 thread / inch (British thread) |
Acceleration and deceleration of thread cutting: linear type and exponential type are optional |
Thread tailing: tailing length, angle and speed characteristics can be set |
Spindle function |
Spindle speed: it can be given by s code or PLC signal, and the speed range is 0RPM ~ 9999rpm |
Spindle magnification: 50% ~ 120%, a total of 8 levels of real-time repair and adjustment |
2 channels of 0V ~ 10V analog voltage output, supporting flexible tapping / rigid tapping |
1 channel spindle encoder feedback, and the number of spindle encoder lines can be set |
Tool function |
Tool length compensation (tool offset): 32 groups |
Tool wear compensation: 32 groups |
Tool life management: 32 groups (8 pieces / group) |
Tip radius compensation (type C) |
Tool setting mode: fixed point tool setting, trial cutting tool setting, back to reference point tool setting, automatic tool setting, coordinate recording function |
Tool deviation execution mode: modify coordinate mode and tool movement mode |
Auxiliary function |
Special m codes (M00, M01, M02, M30, M98, M99), and other m codes are defined by PLC |
PLC function |
Two level PLC program, 5000 steps at most, and the refresh cycle of level 1 program is 8ms |
13 basic commands and 27 functional commands |
PLC program online display and real-time monitoring; Support PLC warning and PLC alarm |
Support multiple PLC programs, and the currently running PLC program can be selected |

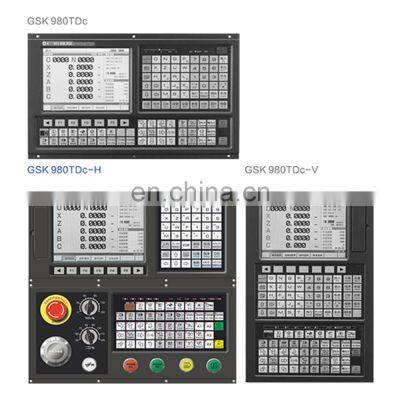

Basic I / O: 980tdc: 41 input / 36 output; 980tdc-h: 61 input / 44 output |
Expandable serial I / O unit (optional): ioa-01t: 24 point input, 16 point output, 4-channel analog voltage output |
IOA-02T：40 point input, 24 point output, 8-Channel analog voltage output and 4-channel analog voltage input |
Program storage Storage and editing |
Program capacity: 40m, 10000 programs (including subroutines and macro programs) |
Editing method: full screen editing |
Editing functions: program / program segment / word retrieval, modification, deletion, copy and paste |
MDI allows you to input and run 10 program segments |
Support macro program / subroutine calling, and allow 4-fold subroutine nesting |
Calculator |
Auxiliary programming |
Program check function |
Trajectory preview, graphic simulation, idle operation, machine tool lock, auxiliary function lock, single-stage operation, hand pulse trial cutting and teaching |
interface |
8.4 "true color LCD |
Support Chinese, English, Russian and other languages |
The processing track is displayed, and the processing track is enlarged and reduced in real time |
Position, program, tool compensation, alarm, parameter, setting, graphics, diagnosis, ladder diagram |
