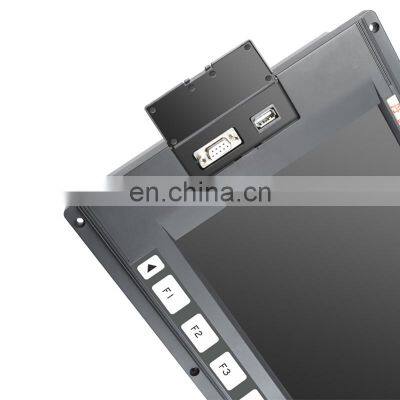

The CNC system of the milling machine machining center is a popular CNC system independently developed by the company, which is suitable for milling machines, drilling and milling machines, grinders, etc.
The system adopts 32-bit high-performance CPU and super large-scale programmable device FPGA. Real-time control and hardware interpolation technology ensure the system μ High efficiency under M-level precision, editable PLC makes the logic control function more flexible and powerful. The system can control 5 feed Axis, 2 analog spindles, 1ms high-speed interpolation, 0.1 μ M control precision, significantly improve the efficiency, precision and surface quality of parts processing.
Product features
● X, Y, Z, A,B, 5 axis control, can be customized control axis number ● 1ms interpolation cycle, control precision 1μm ● Maximum speed 60m/min ● Adaptive servo spindle can achieve continuous spindle positioning, rigid tapping, rigid thread processing ● Built-in multi-PLC program, the current running PLC program can be selected ● Support statement macro code programming, support macro program call with parameters ● Support metric/English programming, with automatic tool alignment, automatic chamfering, tool life management functions ● Support Chinese and English display, by parameter selection ● USB interface, support U disk file operation, system configuration and software upgrade ● Two 0V ~ 10V analog voltage output, support double spindle control ● 1 way handwheel input, support handheld unit ● 52-point universal input / 52-point universal output ● Shape installation size, instruction system and GSK980TDb fully compatible
Specification parameters
Number of control shaft
Number of control axes: 5 axes (X, Y, Z, A,B)
Number of linkage axes: 5 axes
Feed shaft function
Position instruction range: metric input (G21) : -9999.9999mm ~ 9999.9999mm, minimum instruction unit: 0.0001
Position command range: Inch input (G20) : -999.9999inch to 999.9999inch. Minimum command unit: 0.0001inch
Electronic gear: instruction frequency doubling coefficient 1 ~ 65536, instruction frequency division coefficient 1 ~ 65536
Fast moving speed: maximum 60m/min
Rapid rate: F0, 25%, 50%, 100% four levels of real-time adjustment
Cutting feed speed: up to 15m/min (G94) or 500.00mm/r (G95)
Feed rate: 0 ~ 150%, a total of 16 real-time adjustment
Manual feed rate: 0 ~ 150%, 16 levels of real-time adjustment
Hand wheel feeding: 0.001mm, 0.01mm, 0.1mm, 1mm four gears
Single step feeding: 0.001mm, 0.01mm, 0.1mm, 1mm four gears
Interpolation methods: linear interpolation, circular interpolation, spiral interpolation and rigid tapping
TAutomatic chamfering function
Acceleration and deceleration function
Cutting feed: front acceleration and deceleration linear, front acceleration and deceleration S type, rear acceleration and deceleration linear, rear acceleration and deceleration exponential type
Fast moving: front acceleration and deceleration linear, front acceleration and deceleration S, rear acceleration and deceleration linear, rear acceleration and deceleration exponential
Manual mode and handwheel mode are after acceleration and deceleration control. Handwheel mode can be selected as immediate stop
mode or complete operation mode.
The start speed, end speed and time of acceleration and deceleration are set by parameters
Quick location You can locate a line or a broken line
Main function
2 channels 0 ~ 10V analog voltage output, support dual spindle control
1 way spindle encoder feedback, spindle encoder line number can be set (100p/r ~ 5000p/r)
Transmission ratio between encoder and spindle :(1 ~ 255) (1 ~ 255)
Spindle speed: can be given by S code or PLC signal, speed range 0r/min ~ 9999r/min
Spindle ratio: 50% ~ 120%, a total of 8 grades of real-time adjustment
Spindle constant line speed control
Rigid tapping
Function of cutting tool
Tool length compensation
Tool tip radius compensation (Type C)
Precision compensation
Pitch error compensation: compensation points, compensation interval, compensation origin can be set
Reverse clearance compensation: can be set to a fixed frequency or speed up and down to compensate the amount of reverse clearance
machine
The PLC function
Two-stage PLC program, up to 4700 steps, level 1 program refresh cycle 8ms
Number of instructions: 45 (including 10 basic instructions and 35 functional instructions)
Support PLC warning and PLC alarm
Support multiple PLC programs (up to 20), the current running PLC program can be selected
Basic I/O: 52 input /52 output
The man-machine interface
10.4-inch widescreen LCD with 800×600 resolution
Display in Chinese, English and other languages
Two dimensional tool path display
Real time clock
Operation management
Operation mode: edit, automatic, input, machine zero back, hand wheel/single step, manual, program zero back
Multi-level operation permission management
Alarm log
The program to edit
Program capacity: 56MB, 400 programs (including subroutines, macroprograms)
Edit function: program/program segment/word search, modify, delete, copy, paste
Program format: ISO code, support statement macro code programming, support relative coordinates, absolute coordinates and mixed coordinates programming
Program call: support macro program call with parameters, 4 levels of nested subroutines
Communications functions
RS232: parts program, parameters and other files two-way transmission, support PLC program, system software serial port upgrade
USB: U disk file operation, support PLC program, system software U disk upgrade
Safety features
Emergency stop
Hardware travel limit
Software trip check
Data backup and recovery
G code table
code
Function
code
Function
G00
quickly locate
G50
floating workpiece coordinate system
G01
Linear interpolation
G54-G59
 Set the coordinate system of the workpiece
G02
clockwise arc interpolation
G65
macro code modeless call
G03
counterclockwise arc interpolation
 G71
axial rough turning cycle
G04
stop, quasi stop
G72
radial rough car cycle
G17
Plane selection code
G73
seals the cutting cycle
G18
 plane selection code
G70
finishing cycle
G19
Plane selection code
G74
Axial grooving cycle
G10
data input mode effective
G75
radial grooving cycle
G11
Cancel data input mode
G76
Multiple thread cutting cycle
G20
Inch unit selection
G80
rigid tapping status cancelled
G21
 metric unit selection
G84
axial rigid tapping
G28
automatic return machine zero
G88
radial rigid tapping
G30
returns to the second, third and fourth reference points of the machine tool
G90
axial cutting cycle
G31
 jumper
G92
thread cutting cycle
G32
equal pitch thread cutting
G94
radial cutting cycle
G33
Z axis tapping cycle
G96
constant line speed control
G34
Variable pitch thread cutting
G97
cancel constant line speed control
G10
cancel tip radius compensation
G98
per minute feed
G41
tip radius left compensates
G99
for each turn of feed
G42
tool tip radius right compensation
