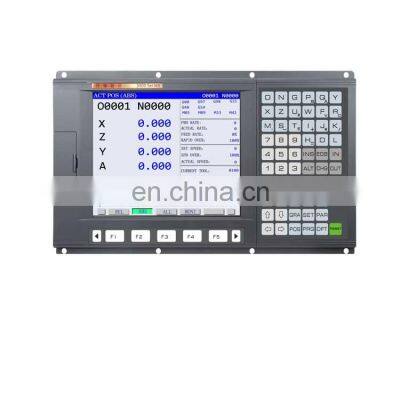

CNC Control 4 Axis CNC Controller for Lathe ATC CNC Controller Kit CE ISO PLC for Inc Wood Carving Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5 Axis Lathe CNC Control System PLC CNC Controller Kit is Similar to GSK CNC Control PanelNegotiableMOQ: 1 -
5 Axis Lathe CNC Control System With PLC Function CNC Controller Kit Similar to GSK CNC Control PanelNegotiableMOQ: 1
-
5 Axis Lathe Controller CNC Control System Kit for Turning CentersNegotiableMOQ: 1
-
CNC Control 3 Axis CNC Milling Controller Panel Factory Direct ATC CNC Controller KitNegotiableMOQ: 1
-
5 Axis CNC Milling Controller ATC CNC Control System Similar to GSK CNC Control PanelNegotiableMOQ: 1
Product Description
Specification
System Function | G code shows | ||||
Number of control axis | 3~8(X,Y，Z,A,B,C,Xs,Ys) | Locate rapidly: | G00 | ||
The smallest programming: | 0.001mm | Straight line interpolation | G01 | ||
The most programming: | ±99999.999mm | Arc interpolation: | G02/03 | ||
The highest speed: | 60m/min | Thread cut: | G32 | ||
Feed speed: | 0.001~30m/min | Cycle of cutting cyliner or cone: | G90 | ||
Continuous manual: | one axis or multiple axis at the same time | Cycle of cutting end face: | G94 | ||
Line interpolation: | Straight line, arc, screw thread interpolation | cycle of cutting thread | G92 | ||
Cutter compensation: | Length of the compansation、radius nose of tool compensation | Fixed cycle of tapping | G93 | ||
Cutter compensation input: | Try to cut measuring input mode | Cycle of rough cut in excircle | G71 | ||
Spindle function: | gear、Double analog control、Rigid tapping | Cycle of rough cut at end face: | G72 | ||
Handwheel function: | panel、handheld | Cycle of closed cut | G73 | ||
handwheel processing: | The handwheel processing function | Cycle of drill deep hole at end face | G74 | ||
Screen protection: | The screen protection function | Cycle of cutting groove with external diameter | G75 | ||
Tool rest function: | Row tool rest、Electric too post 99 knife | Cycle of cutting compound thread | G76 | ||
Communication function: | RS232、USB interface | Cycle of program | G22,G800 | ||
Compensation function: | Tool compansation、Space compensation、Screw pitch compensation、Radius compensation | Local coordinate system: | G52 | ||
Edit program: | Metric/Imperial、Straight thread、taper thread and so on | Detect the instruction of skip | G31,G311 | ||
Limit position function | soft limit, hard limit | Pole coordinate | G15,G16 | ||
thread function | metric and inch format, straight thread, taper thread and so on | Metrical/Imperial programme: | G20,G21 | ||
Preread function: | Preread 10,000 short straight lines | Set coordinate, offset | G184,G185 | ||
Password protection: | Multilevel password protection | Workpiece coordinate system: | G54~G59 | ||
Input/output: | I/O 56*24 | Tool radius C | G40,G41,G42 | ||
PLC programme: | All open PLC design | Accurate locating/continuous path process: | G60/G64 | ||
Acceleration and deceleration control: | Straight line、Index | Constant linear cutting: | G96/G97 | ||
Number of encoder: | any setting | Feeding mode: | G98,G99 | ||
User macro program: | Have | Backing to start point of program: | G26 | ||
Electrical gear function: | Have | Backing to the fixed point: | G25,G61,G60 | ||

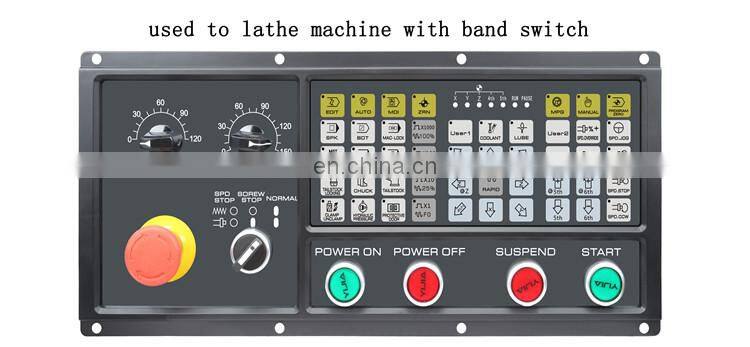

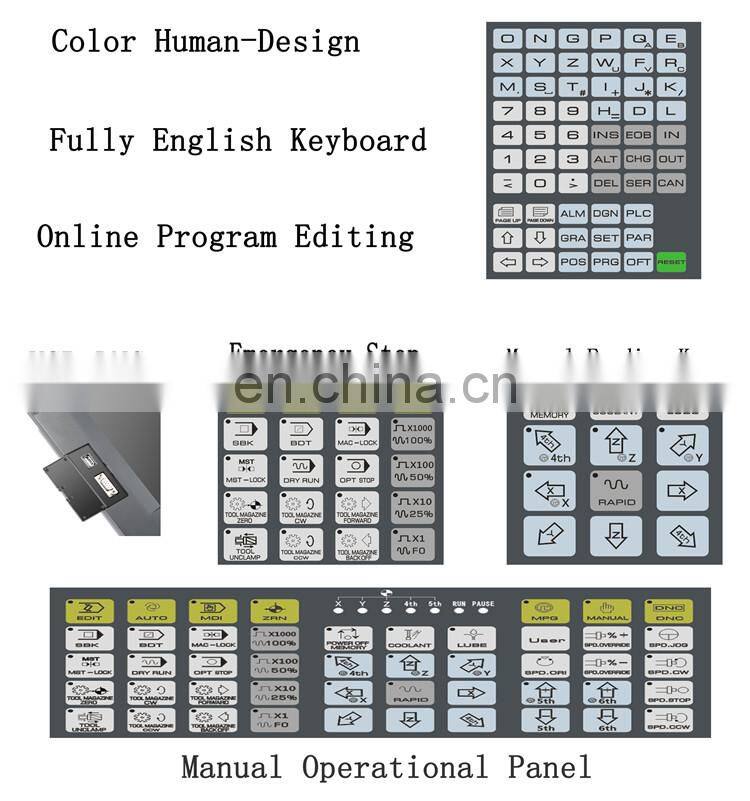

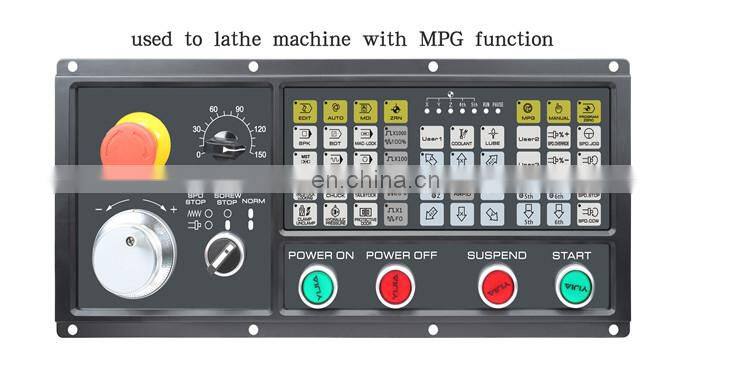

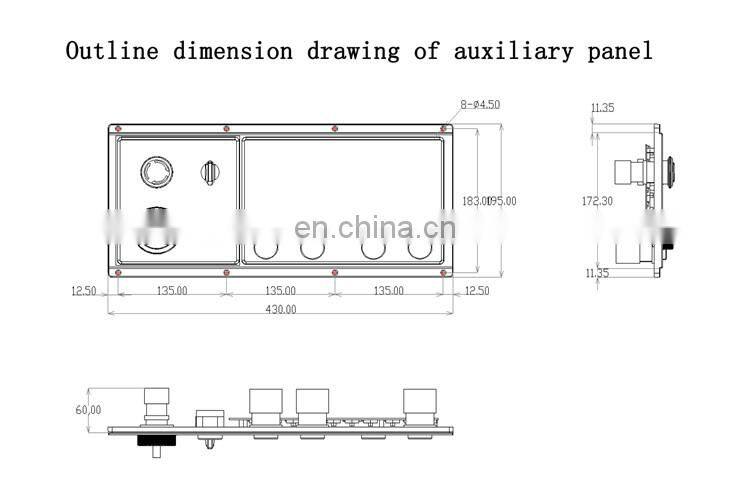

Subpanel | A type with handwheel; B type with band switch; C type with both A and B, E type | Backing to the datum point: | G28 | ||
Application: | VMC, grinding, special machine | Suspend: | G04 | ||
Macro Program: | G65,G66,G67 | ||||
Auxiliary function: | S、M、T | ||||
Company Profile
FAQ
Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface
and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface
and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
