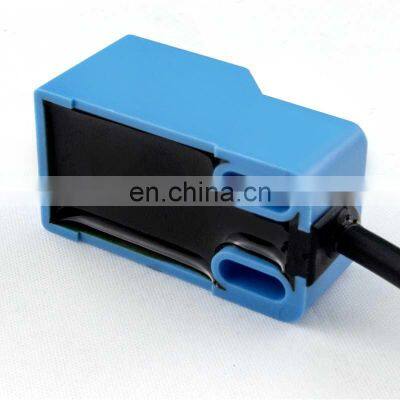

Three wire proximity switch Metal induction switch Proximity Sensors

Name: Three wire proximity switch Metal induction switch Proximity Sensors
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Products Description

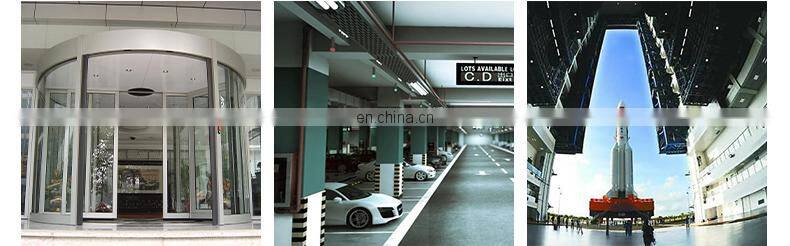

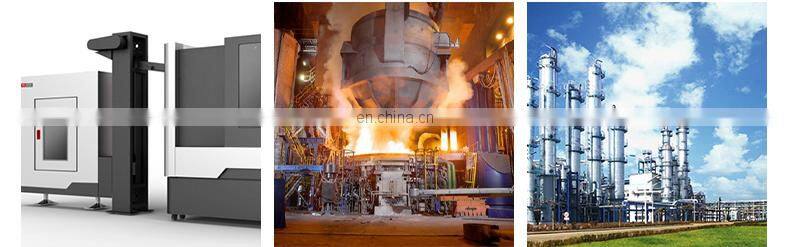

Applicable to various places A wide range of applications to meet your various needs. Proximity switchIt can be used in various places to meet your various needs

Machine tool

Metallurgy

Chemical industry

Automatic Door

Garage

Aerospace

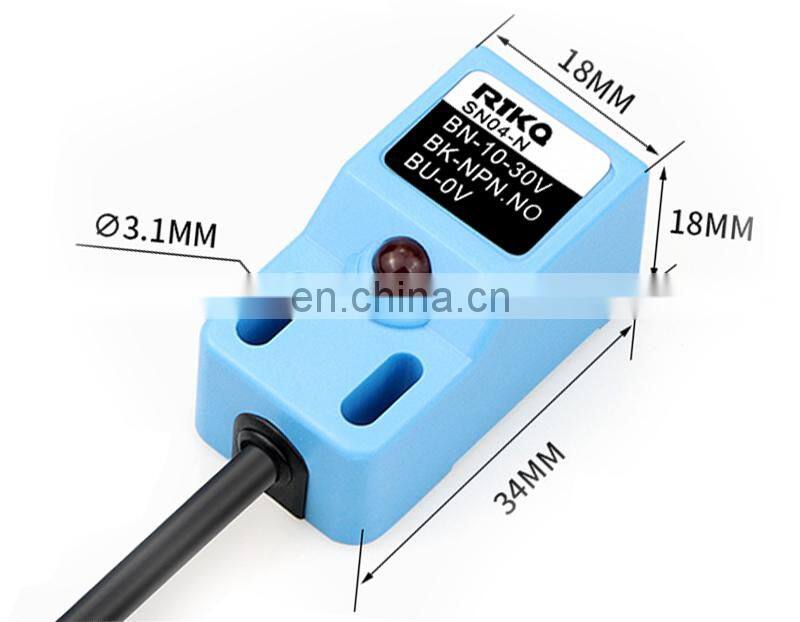

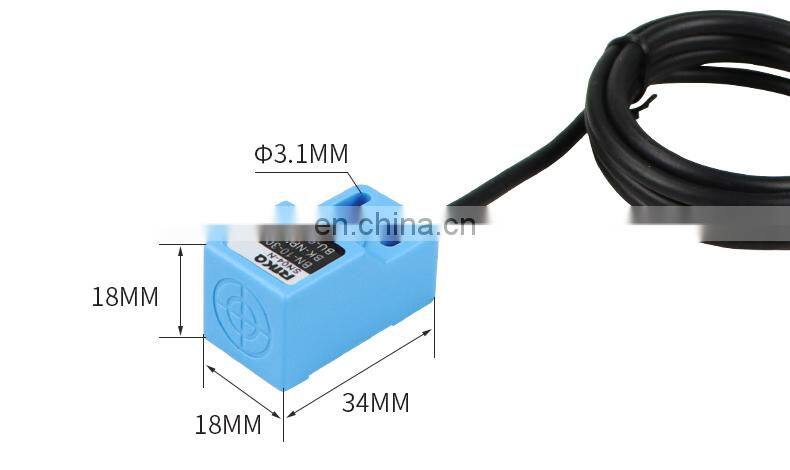

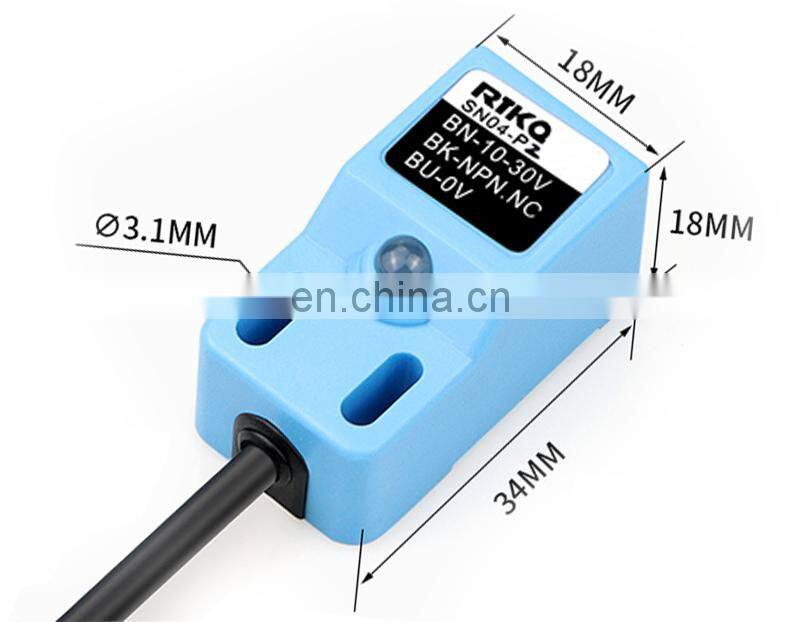

Product Parameters

[product name]	metal proximity switch

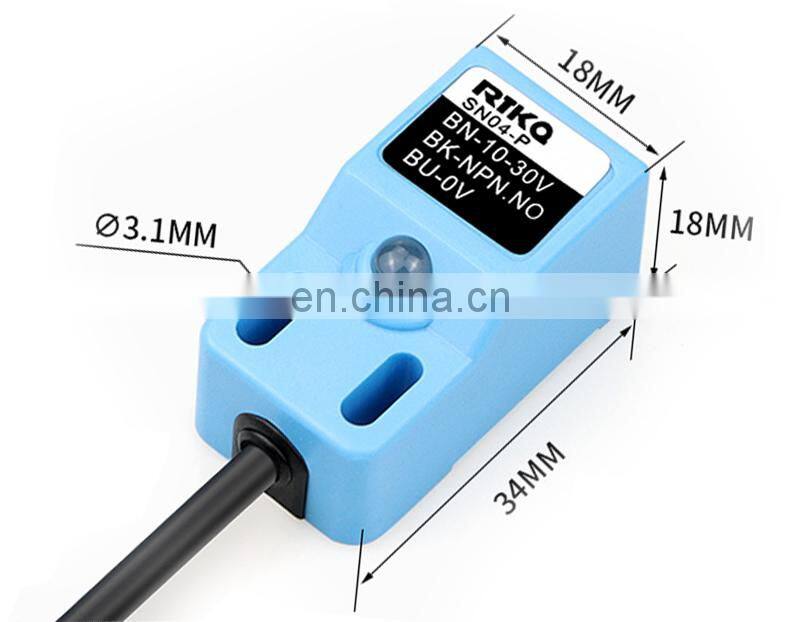

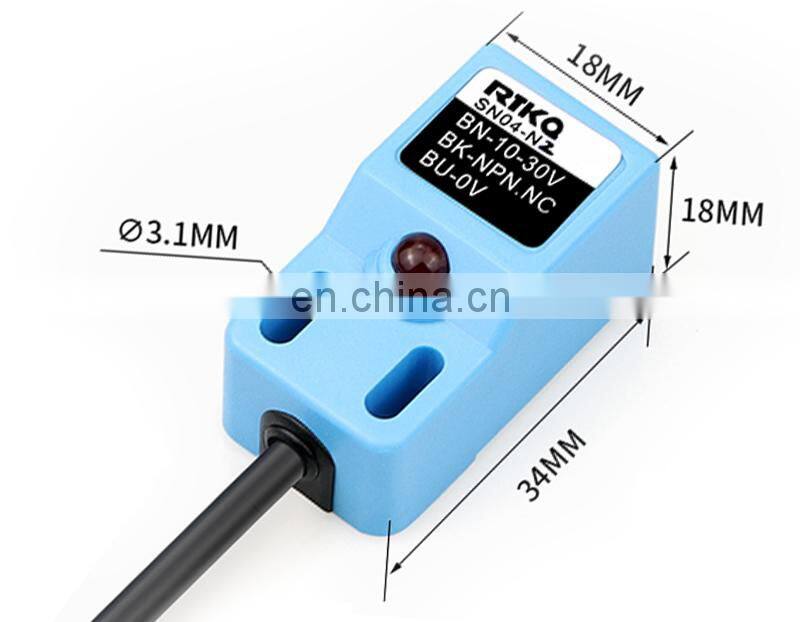

[product model]	SN04-N/P/N2/P2
[shell material]	ABS plastic
[response time]	< 0.5ms
[output current]	300mA
[output form]	NPN/ PNP normally open / normally closed
[test object]	metal (iron, gold, silver, etc.)
[product weight]	0.035kg
[Product type]	Inductive type

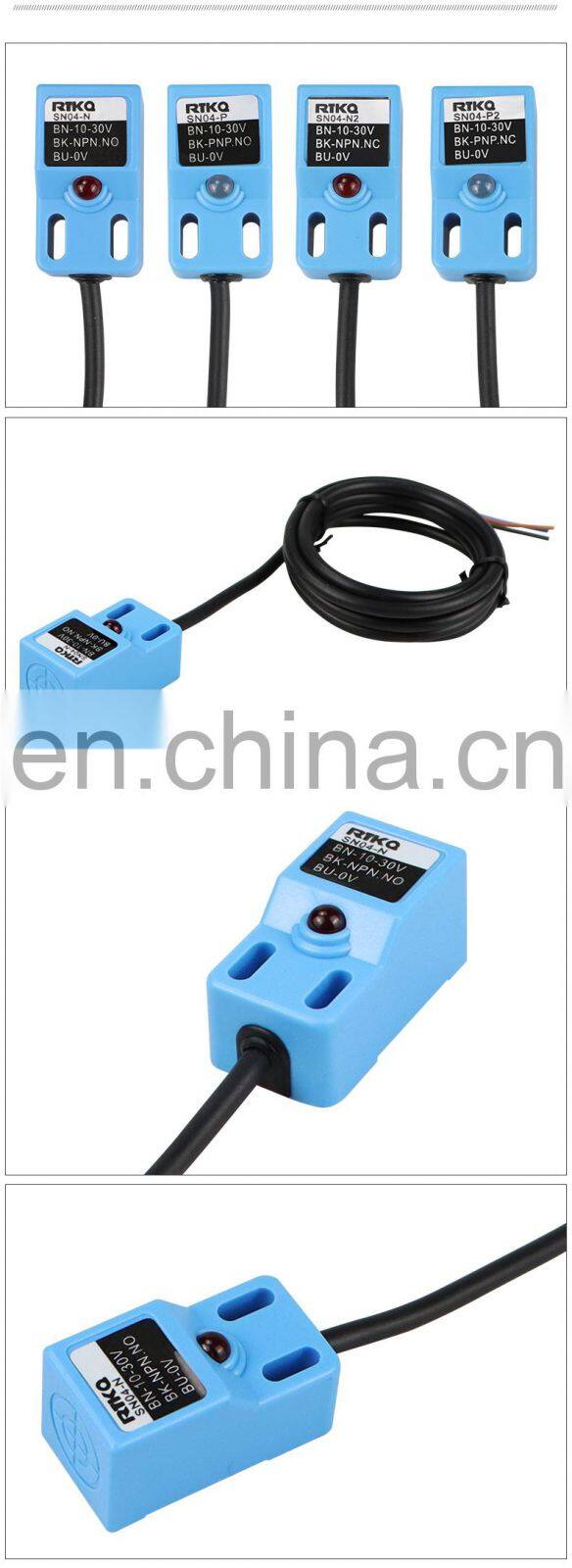

FOUR OPTIONS

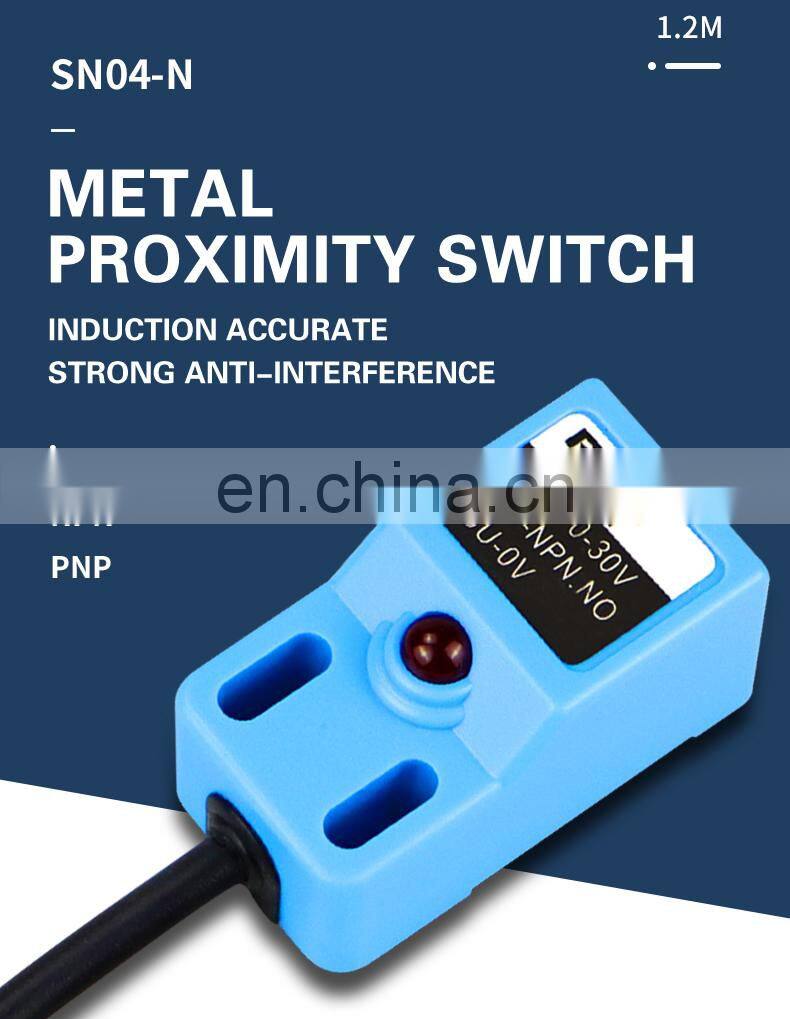

SN04-N
Output mode	NPN normally open
Detection distance:	4mm
Product line length:	1.2m Working voltage: 10-30vdc
Product line length:	1.2m Working voltage: 10-30vdc
Product line length:	1.2m Working voltage: 10-30vdc

SN04-N2
Output mode	NPN normally closed
Detection distance:	4mm
Product line length:	1.2m Working voltage: 10-30vdc
Product line length:	1.2m Working voltage: 10-30vdc
Product line length:	1.2m Working voltage: 10-30vdc

SN04-P
Output mode	PNP normally open
Detection distance:	4mm
Product line length:	1.2m Working voltage: 10-30vdc
Product line length:	1.2m Working voltage: 10-30vdc
Product line length:	1.2m Working voltage: 10-30vdc

SN04-P2
Output mode	PNP normally closed
Detection distance:	4mm
Product line length:	1.2m Working voltage: 10-30vdc
Product line length:	1.2m Working voltage: 10-30vdc
Product line length:	1.2m Working voltage: 10-30vdc

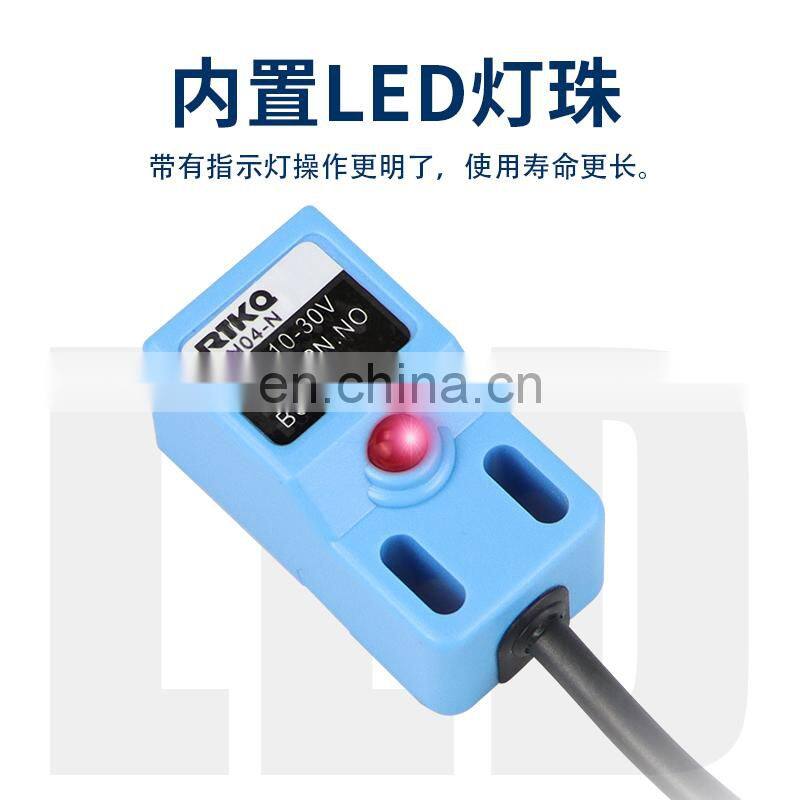

BUILT IN LED BULB

With indicator light, the operation is clearer and the service life is longer.

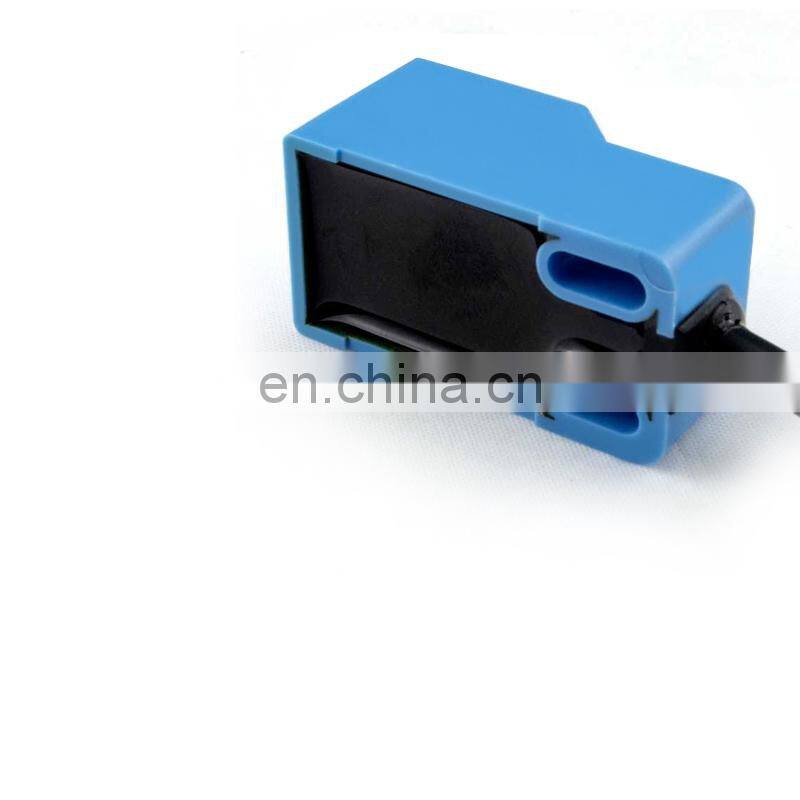

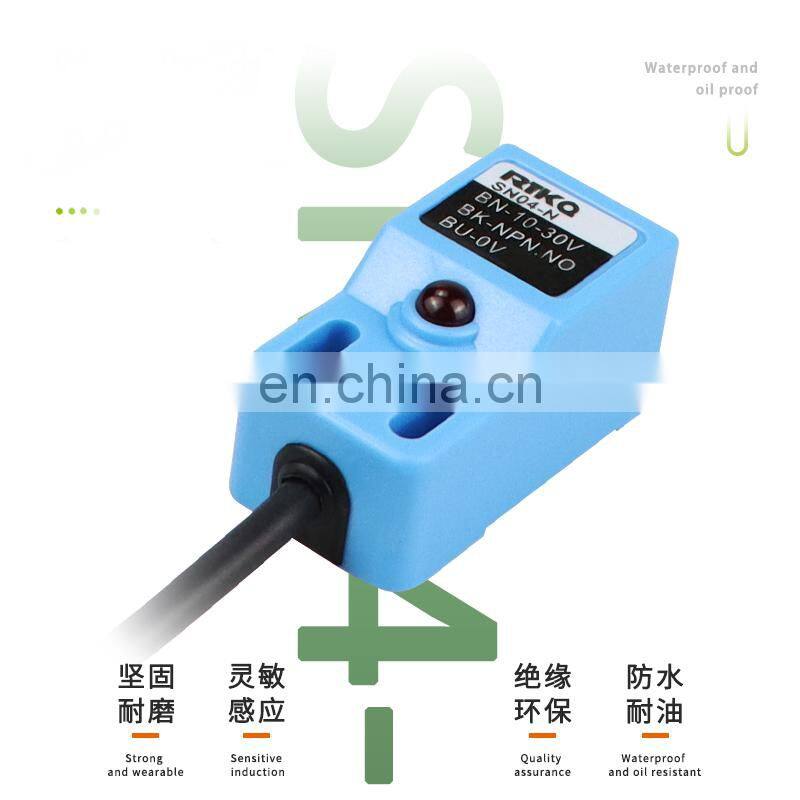

WATERPROOF AND OIL PROOF ABS HOUSING

High texture ABS plastic

BUILT IN
INTELLIGENT SENSING CHIP

high-precision/Sensitive induction/Fast object detection efficiency

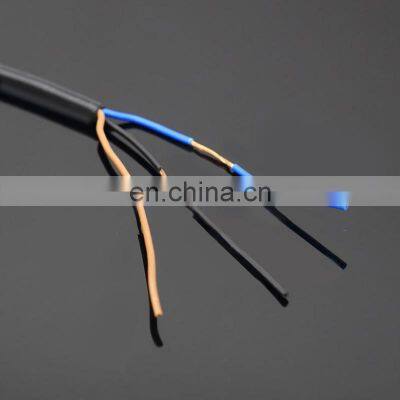

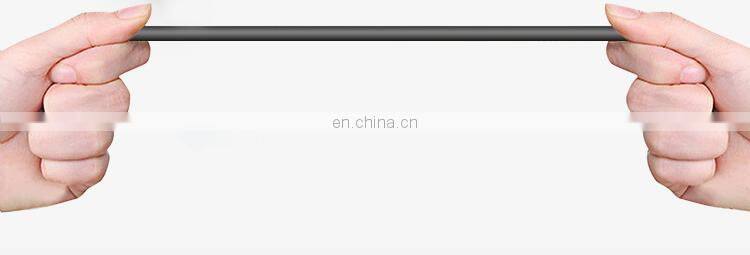

The POWER CORD STRONGER AND MORE DURABLE

It is preferred that all indexes such as tension, bending and swing of PWC flame retardant wire have passed the strict reliability test. Please rest assured

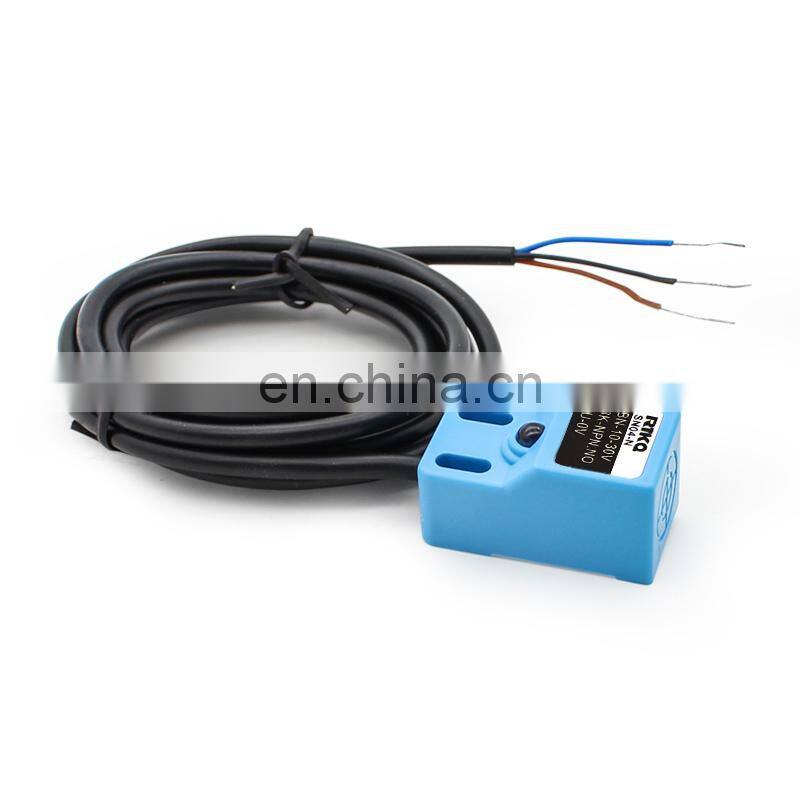

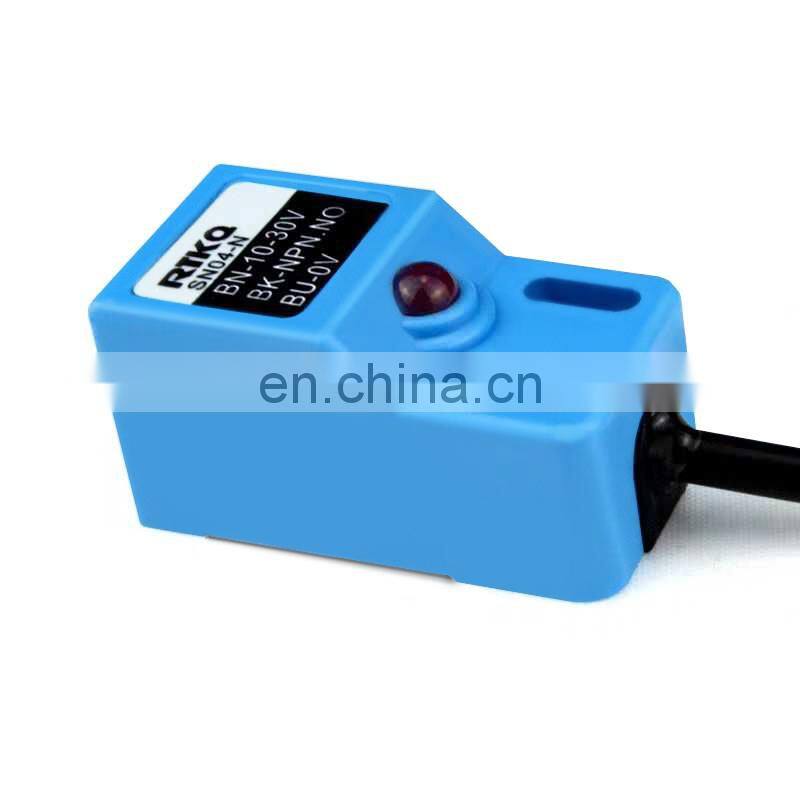

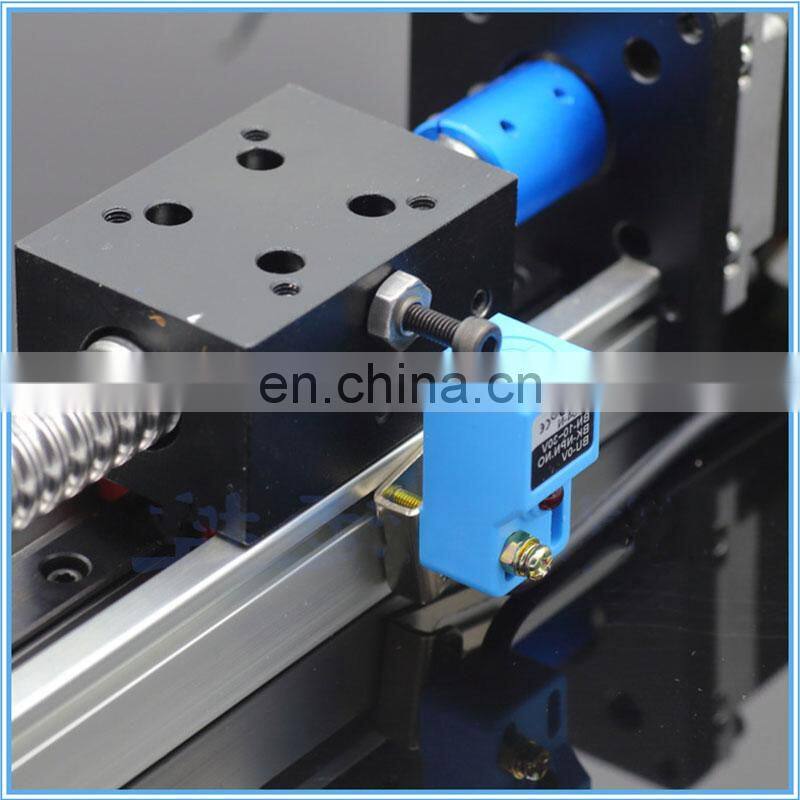

Real Scene Shooting
