Home > Products > retarder > LCSG harmonic robot reducer high torque zero backgap ultra-thin high precision reducer

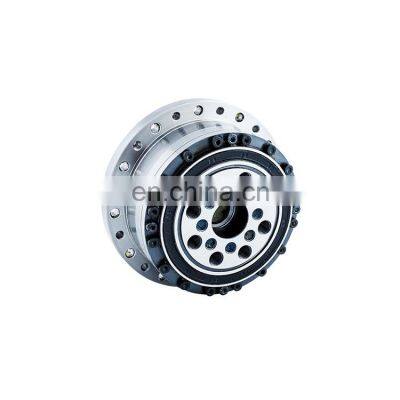

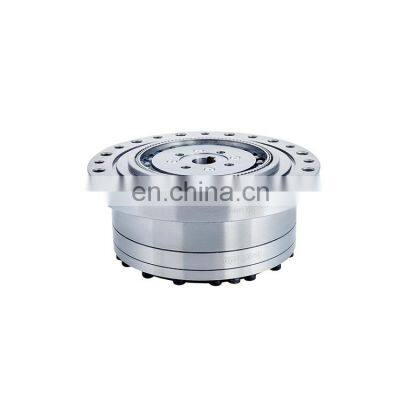

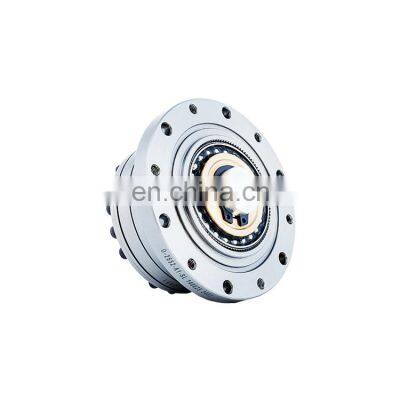

LCSG harmonic robot reducer high torque zero backgap ultra-thin high precision reducer
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
LCS high precision reducer harmonic robot reducer high torque zero backgap ultra-thin
-
harmonic robot reducer high torque zero backgap ultra-thin LHD high precision reducer
-
LHSG high precision reducer high torque zero backgap ultra-thin harmonic robot reducer
-
SEW R series helical gear reducer single stage, 2 stage, 3 stage reducer
-
SEW F series parallel helical gear reducer
-
SEW K series bevel gear reducer New product
Product Description

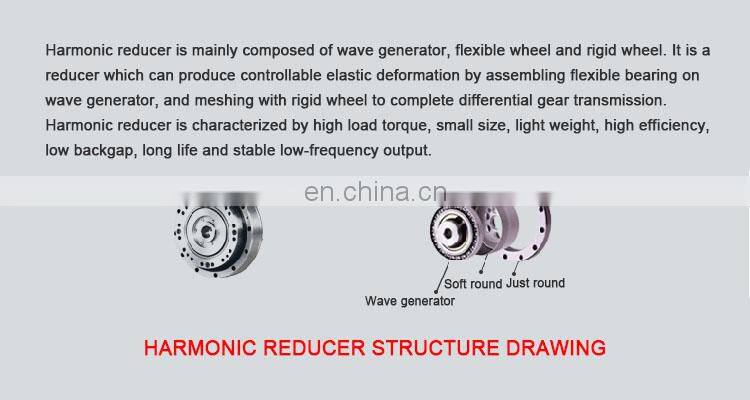

product principle
Product parameters
Model naming rules |
Model example: L - CSG - 14 - 50 - C - I - ST |
①L: Specific identifier |
②CSG: C: flexible wheel shape. Cup shape: C; Hollow type: H. S: Length of flexible wheel. Standard length: S; D. G: High torque density. |
③14: harmonic gear pitch circle diameter 14mm, all specifications code: 14, 17, 20, 25, 32, 40, 50, 58. |
④50: speed ratio. Commonly used speed ratio: 30, 50, 80, 100, 120, 160. |
⑤C: whole machine (integrated bearing); P: component type (three-piece set); CL: Light weight type. |
⑥ⅰ: Standard type, key connection. ⅱ : cross slider shaft connection. ⅲ : cylindrical hollow type, screw connection type; ⅳ : solid axis input type. |
⑦ST: Compact, smaller volume. |

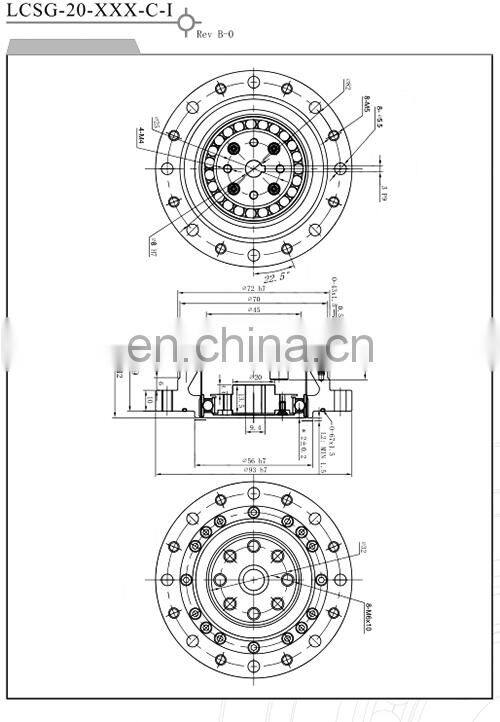

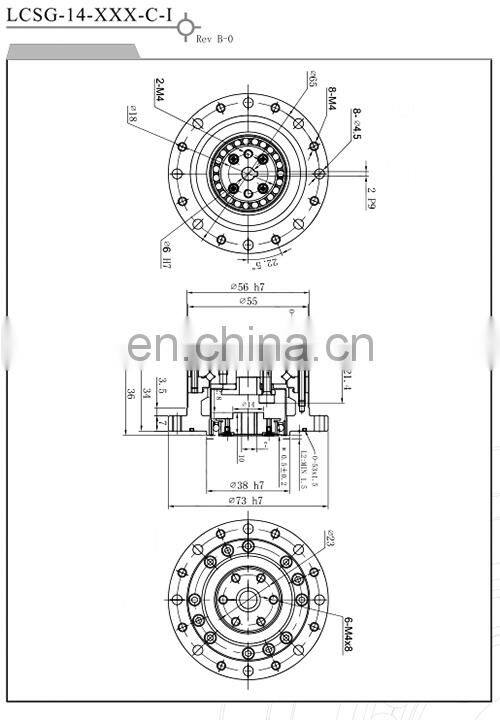

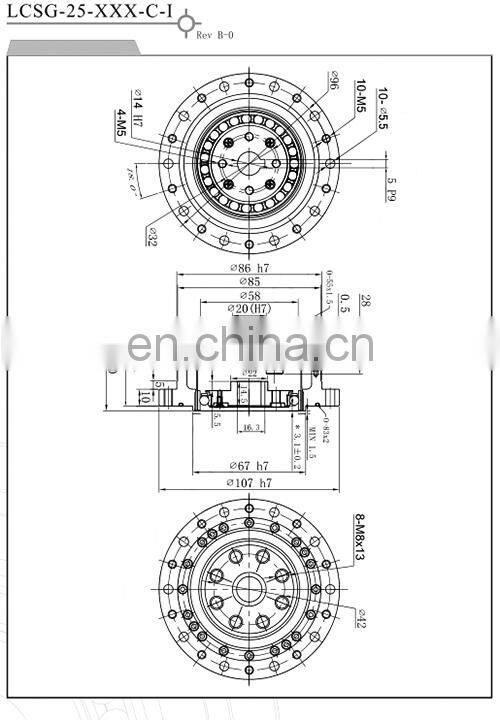

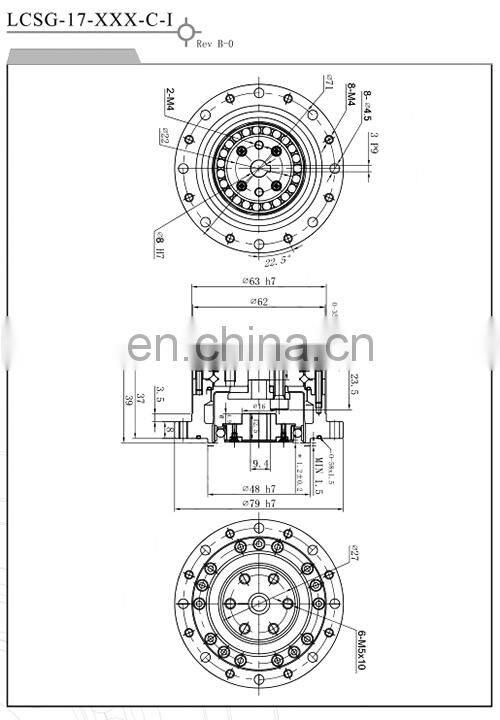

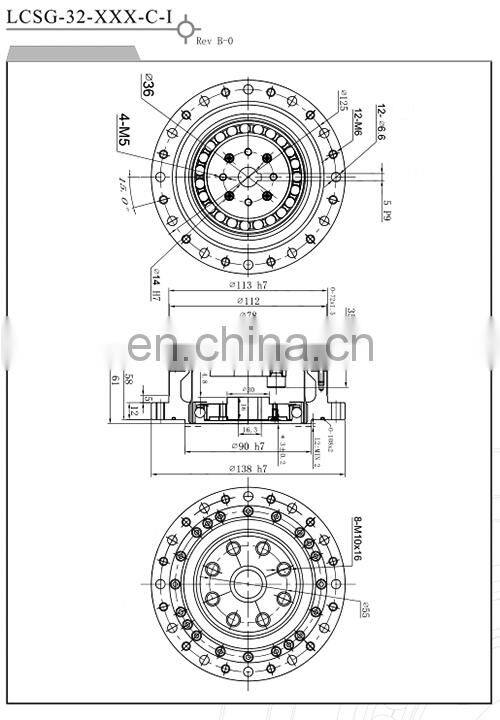

LCSG-I series

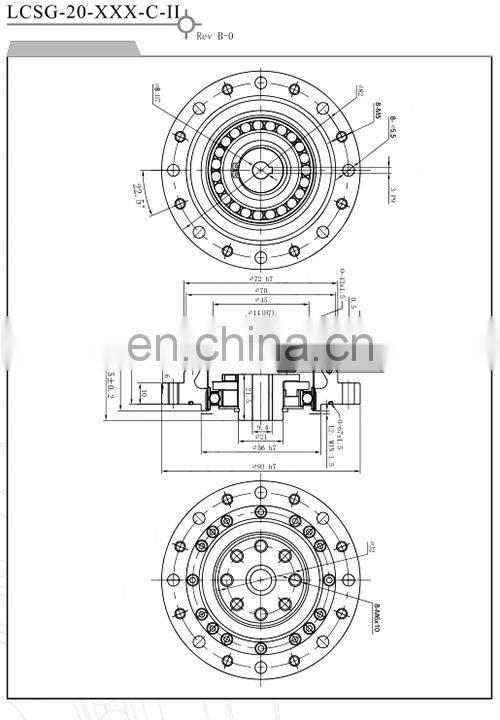

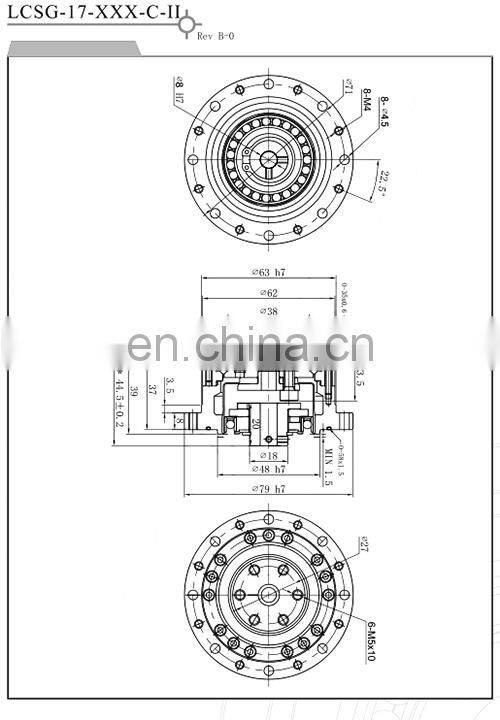

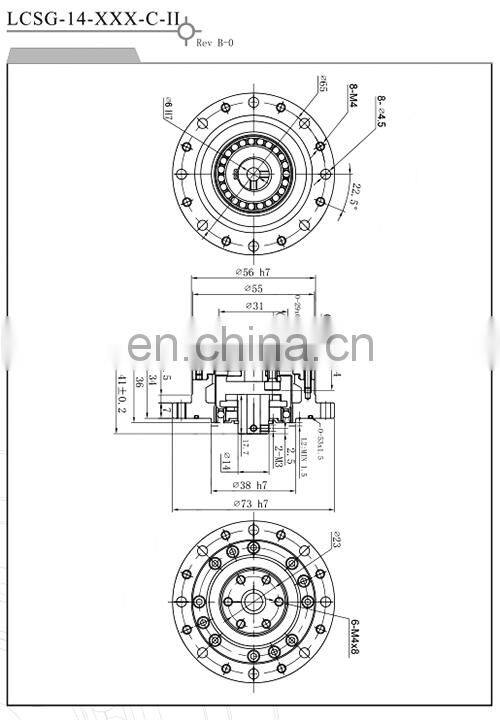

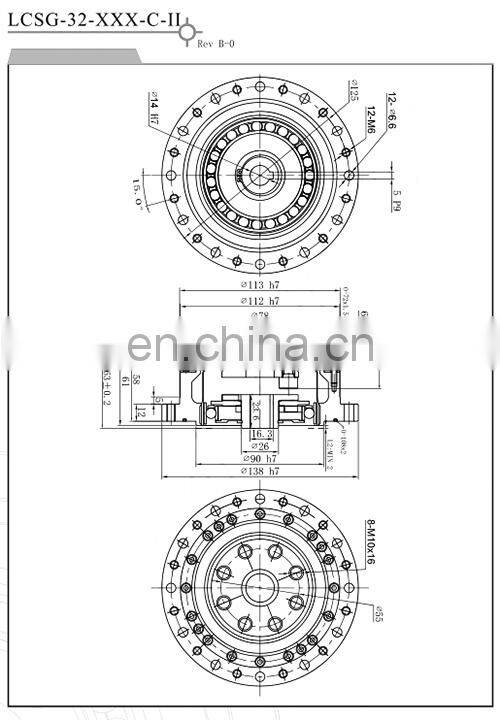

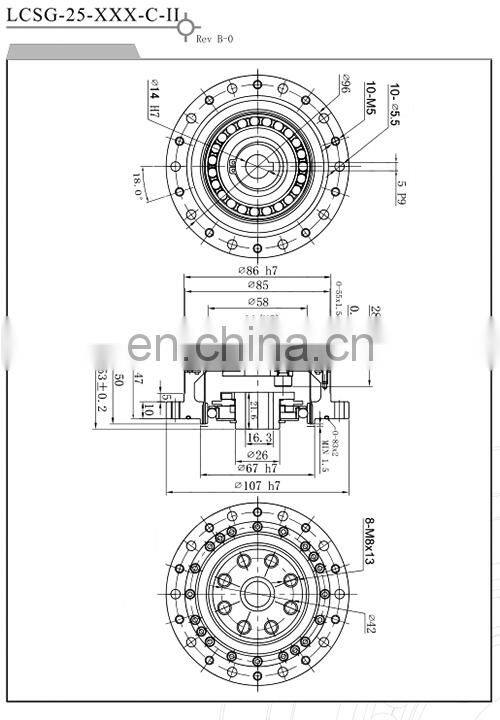

LCSG-II series
Product features and advantages
Product Understanding
Through research, we found that harmonic meshing is based on the geometric mapping theory of curve (surface), which is a new theory with independent intellectual property rights of our company, applied to harmonic reducer. The traditional theory is based on Willis theorem, that is, on this basis, the conjugate tooth profile is deduced, and the harmonic meshing is special, which is actually non-conjugate. Our theory has been optimized and expanded to make the meshing range wider and more in line with the actual situation of harmonic meshing.

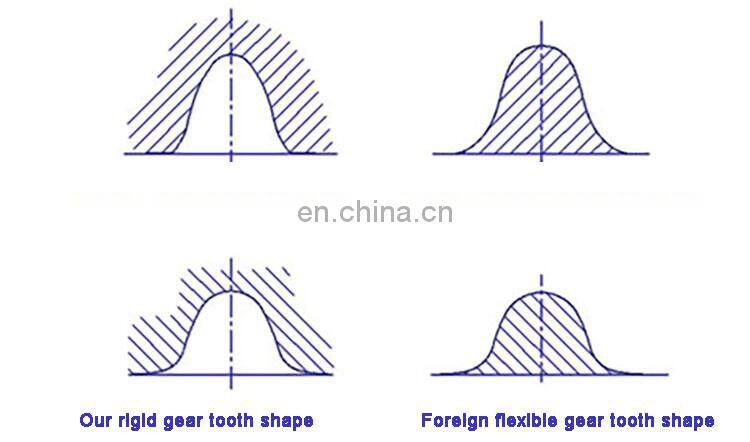

All new "P" teeth
Our P tooth has the following advantages compared with similar foreign products:
(1) Low tooth height, do not need a deep meshing distance can obtain a large amount of meshing, can bear a large torque.
(2) The tooth width is larger, the radian of the tooth root increases, and the risk of fracture failure is reduced.
③ The life of the flexible wheel can be greatly improved because of the small deformation of the flexible wheel.
④ As many as 20% ~ 30% of teeth are engaged, and the specific pressure of tooth surface is small.
Product packaging
product certification
Company Profile
Warranty and after-sales service
1.two years warranty for machine
2.We have a professional English after-sales engineer team,and supply online service 24 hours by Whatsapp,Skype, and so on. or by phone if urgently.
3.We will provide you with a detailed video tutorial to teach you how to use the machine .
4.lf you need installment support,we can arrange our engineer fly to your place to help
FAQ
Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company
display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
