WPEX1400 Rpm Motor Speed Reduce Gearbox 155-250

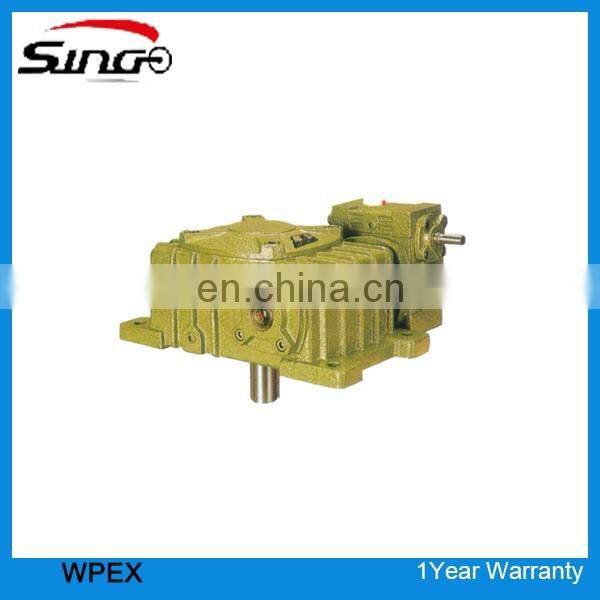

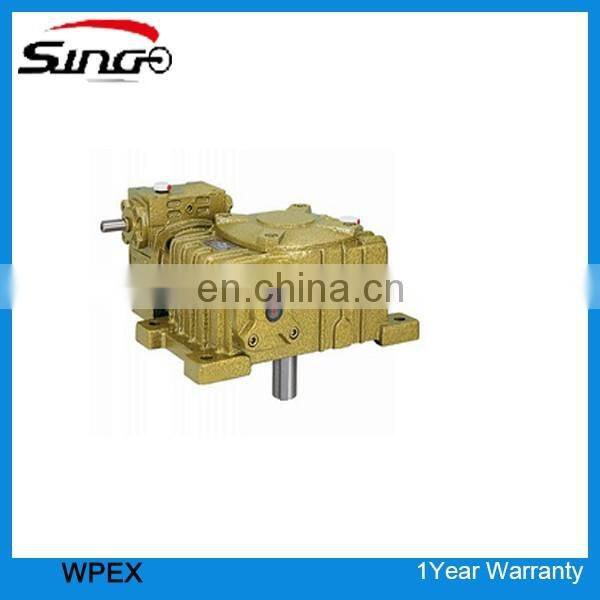

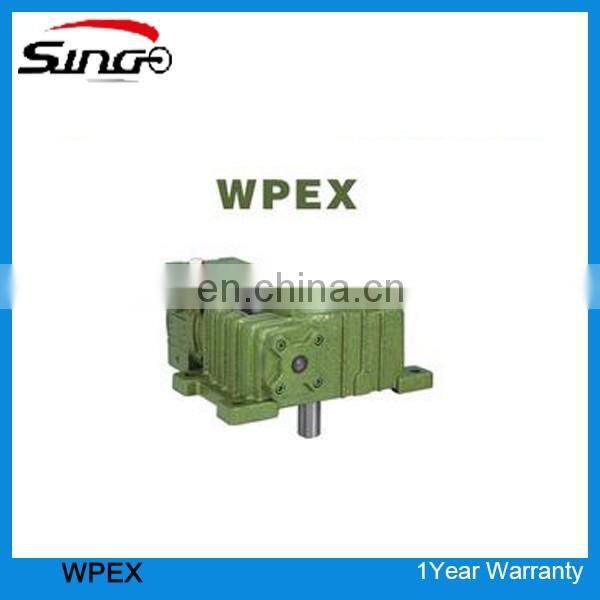

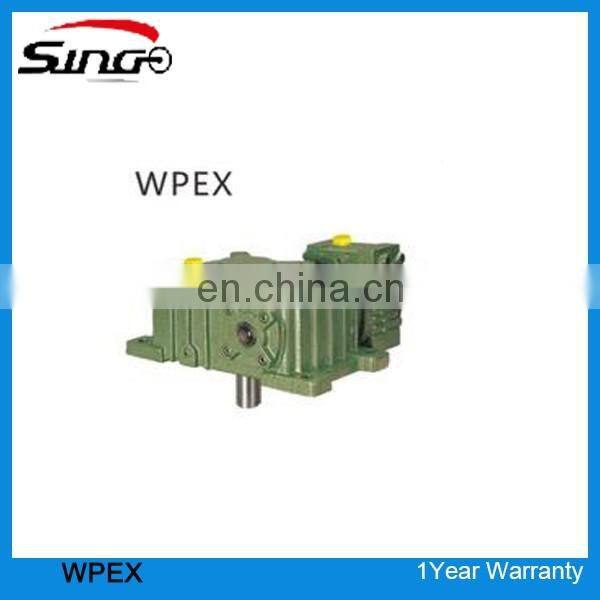

Product Name: WPEX 40-70 Worm Gear Speed Reducer

Features:

1) Small size, compact, lightweight and saves space for mounting

2) Runs steadily with low noise

3) High reliability and high efficiency

4) Superior performance, easy maintenance,

5) Easy installation, by motor direct connection and shaft input, shaft and hollow shaft output form, shaft installation and flange mounting forms.

6) Good-looking appearance, durable service life and small volume

Working conditions:

1, Worm reducer worm speed cannot exceed 1500r / min.

2, The working environment temperature -40 ℃ - + 50 ℃, when the working ambient temperature is below 0 ℃, starting before the oil must be heated to above 0 ℃, When the working environment temperature is higher than 40 ℃, cooling measures must be taken.

3, Worm gearbox can be both positive and negative rotation of the shaft.
