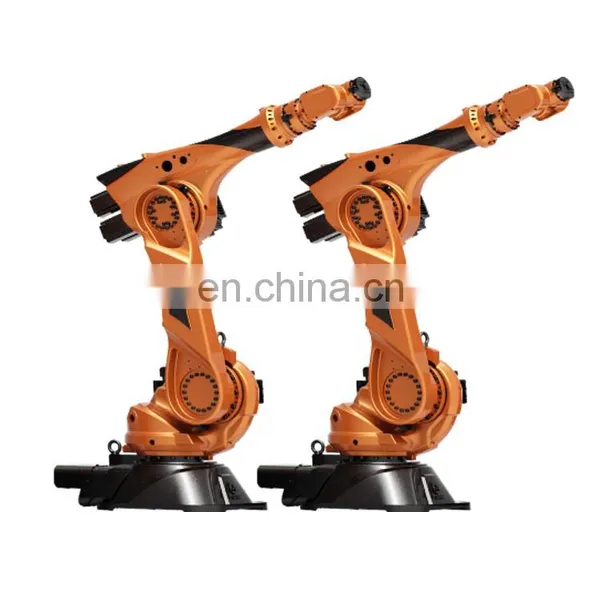

GSK RB10 Handling Industry General Purpose Robot Arm Guangzhou CNC Robot

GSK RB10 Handling Industry General Purpose Robot Arm Guangzhou CNC Robot thumbnail-1
GSK RB10 Handling Industry General Purpose Robot Arm Guangzhou CNC Robot thumbnail-2
GSK RB10 Handling Industry General Purpose Robot Arm Guangzhou CNC Robot thumbnail-3
GSK RB10 Handling Industry General Purpose Robot Arm Guangzhou CNC Robot photo-1
GSK RB10 Handling Industry General Purpose Robot Arm Guangzhou CNC Robot photo-2
GSK RB10 Handling Industry General Purpose Robot Arm Guangzhou CNC Robot photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Shenzhen Denver Servo Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Widely used in logistics handling, machine tool loading and unloading, stamping automation, assembly, grinding, polishing and so on
Product features
●Adopt new appearance industrial design, innovate the appearance image of Chinese industrial robot with Chinese traditional culture characteristics;
●Adopt lightweight structure design. Through many times of simulation and optimization, all the structural parts except the base are made of high-strength aluminum alloy. Compared with the company's original robot of the same type, the total weight of the structural parts (including the base) is reduced by about 4.4%;
●Using the high-speed motor specially developed by Guangdu, the movement speed of robot axis 1, 2 and 3 is 200°/s, reaching the mainstream of similar foreign products;
●Adopt advanced modular design method, 4, 5, 6 axis can realize bearing reducer, harmonic reducer and other different types of reducer structure form exchange. The front end can be changed into a wrist structure with high temperature resistance and waterproof function according to user needs;
●The 218M control system independently developed by Guangdu with independent intellectual property rights is adopted, with more stable and reliable performance.
Range of motion
Application scenarios
Technical parameters
Degrees of freedom
6
Drive way
Ac servo drive
Payload (kg)
10
Repeat positioning accuracy (mm)
±0.05
Range of motion
J1
±170
J2
+150-85
J3
+85-170
J4
±360
J5
±120
J6
±360
Maximum speed
J1
200
J2
160
J3
200
J4
360
J5
360
J6
600
Maximum allowable torque (N.M)
J4
43.2
J5
43.2
J6
25.4
Motion radius (mm)
1550
Body weight (kg)
240
Note: Avoid contact with flammable, explosive and corrosive gases and liquids; Do not splash water, oil, dust; Stay away from electrical noise sources (plasma)
packing&Certificates
Company Profile
Warranty and after-sales service
1.two years warranty for machine 2.We have a professional English after-sales engineer team,and supply online service 24 hours by Whatsapp,Skype, and so on. or by phone if urgently. 3.We will provide you with a detailed video tutorial to teach you how to use the machine . 4.lf you need installment support,we can arrange our engineer fly to your place to help
FAQ
Q: Do you support customized manufacturing? A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time? A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ? A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below
