High Purity Acrylonitrile-butdiene-styrene

ABS board is a new material in plate industry. Its full name is acrylonitrile/butadiene/styrene copolymer plate. The English name of Acrylonitrile- Butdiene-styrene is the largest and most widely used polymer at present. It organically unifies the various properties of PS, SAN and BS, and has excellent mechanical properties of balanced toughness, hardness and rigidity.

Main performance:

Excellent impact strength, good dimensional stability, dyeing, molding and mechanical processing, high mechanical strength, high stiffness, low water absorption, good corrosion resistance, simple connection, non-toxic and tasteless, with excellent chemical properties and electrical insulation properties. It is heat resistant without deformation and has high impact toughness at low temperature. Or a hard, not easy to scratch, not easy to deform material. Low water absorption; High dimensional stability. Conventional ABS plate is not very white, but the toughness is very good, can be used to cut the plate shears, can also open the die.

Operating temperature: from -50C to +70C.

Among them, transparent ABS board transparency is very good, polishing and polishing effect is excellent, is the first choice to replace PC board material. Compared with acrylic, its toughness is very good, can meet the product meticulous processing. The disadvantage is that transparent ABS is relatively expensive.

Should be the field:

Food industry, construction model, standard, into phase electronics components, refrigeration industry, electrical and electronic fields, the pharmaceutical industry, auto parts (dashboard, tools, doors, wheel cover, mirror box, etc.), radio chassis, telephone handle, great strength, tools, vacuum cleaner, hair dryer, blender, lawn mower, etc.), a typewriter keyboard, Recreational vehicles such as golf carts and jet sledges.

ABS engineering plastics pure color ABS plate shortcomings: hot deformation temperature is low, combustible, weather resistance is poor.

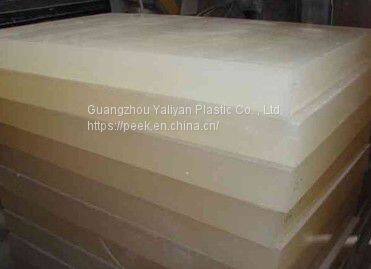

Specification of sheet:

Thickness X Width X length: 1-200mmx1000mmx2000mm, can also be customized according to requirements.

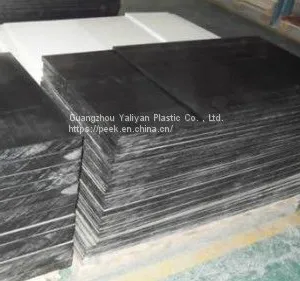

Plate color: beige, transparent, black

In view of the ABS board is very easy to produce internal stress and lead to the deformation of the board in the process of processing, so the board must do stress treatment before use.

Chemical name: acrylonitrile - butadiene - styrene copolymer

English Name :Acrylonitrile Butadiene Styrene (ABS)

Specific gravity :1.05 g/cc

Combustion identification method: continuous combustion, blue background yellow flame, black smoke, light Calendula flavor

Solvent experiment: cyclohexone can soften, aromatic solvent has no effect

Drying conditions: 80-90℃ for 2 hours

Molding shrinkage rate :0.4-0.7%

Mold temperature: 25-70℃ (Mold temperature will affect the finish of plastic parts, low temperature will lead to low finish)

Melting temperature: 210-280℃ (recommended temperature: 245℃)

Molding temperature: 200-240℃

Injection speed: medium to high speed

Injection pressure: 500-1000bar

Features: Good comprehensive performance, high impact strength, chemical stability, good electrical performance.
