HT-118D
Battery Test Multimeter with Voltage Detector Function/manual range digital avometer
product feature
-Surge protection: CAT III 600V
-up to 2000uF capacitance measurement
-600V AC/DC voltage measurement
-200mA AC/DC voltage measurement
-resistance measure up to 10mΩ with continuity detection
-Rugged over-moulding protects
-Resistance and continuity
-technology for non-contact voltage detection
-AutoVolt automatic AC/DC voltage selection

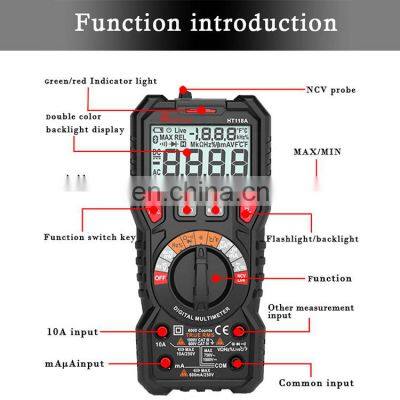

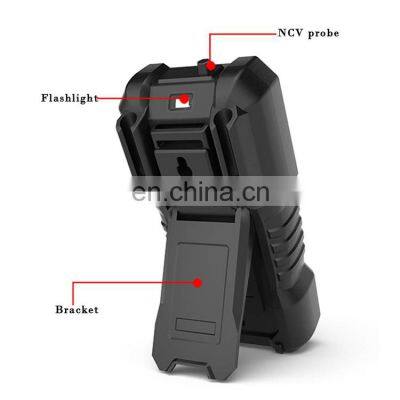

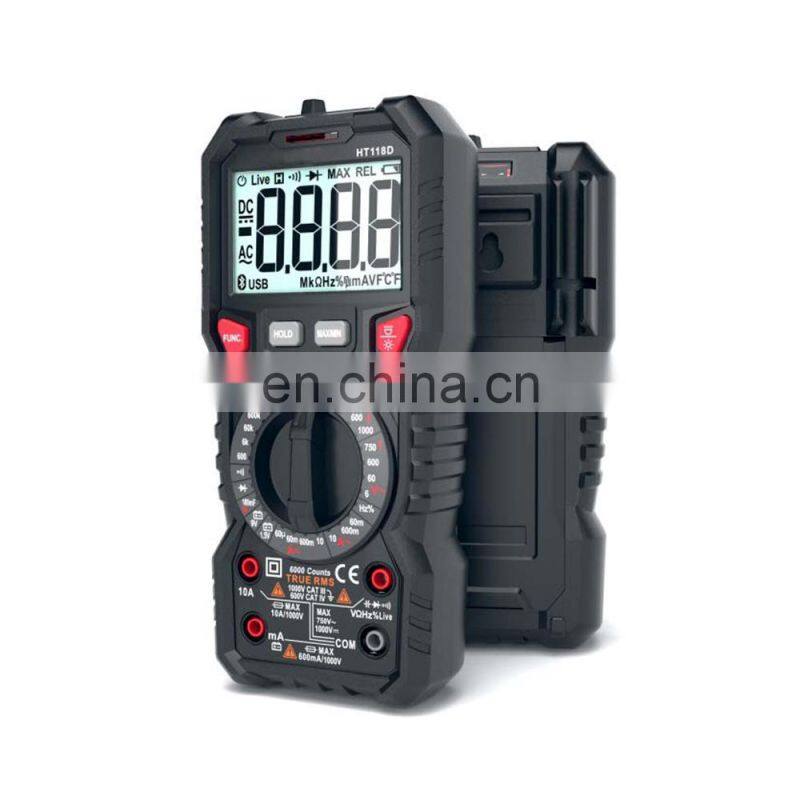

product image
|
Specifications |
Range |
Accuracy |
|
|
|
HT118D |
|
DC Voltage |
600mV/6V/60V/600V/1000V |
±(0.5%+3) |
|
AC Voltage |
6V/60V/600V/750V |
±(1.0%+5) |
|
DC Current |
60uA/600uA/600mA |
±(0.8%+3) |
|
|
10A |
±(1.2%+3) |
|
AC Current |
60mA/600mA |
±(1.0%+3) |
|
|
10A |
±(1.5%+3) |
|
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
±(0.8%+3) |
|
Capacitance |
10nF/100nF/1uF/10uF/100uF/1mF/10mF |
±(4.0%+3) |
|
|
100mF |
±(5.0%+5) |
|
Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
±(1.0%+3) |
|
Duty |
1%~99% |
±(1.0%+2) |
|
Temperature(℃/℉) |
-40℃~1000℃ |
|
|
|
-40℉~1832℉ |
|
|
Counts |
6000 Counts |
|
|
Auto/Manual range |
Manual |
|
|
Display |
LCD |
|
General
Power supply:2xAA batteries
Product size:188mm*88mm*58mm
Product weight:Approx.350g
Safety rating:EN61010-1,-2-030
EN61010-2-033
EN61326-1
CATIII 1000V
CATlV 600V
