RK1500 Glass Plate Automatic Nut Optical Inspection Equipment Screw Optical Visual Sorting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2005
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RK-1500 Glass Plate Nut Optical Vision Selection Machine AOI Visual Sorting Equipment for Fastener Screw WasherNegotiableMOQ: 1 -
RK-1360 360 Degree Rubber AOI Visual Sorter Automatic Optical Selective Machine for Plastics TestingNegotiableMOQ: 1
-
China RK-1360 Fastener AOI Image Sorting Machine Optical Visual Selection Machinery for Nut Hardware With 360-degree ViewingNegotiableMOQ: 1
-
RK-1300 Eddy Current Fastener Visual Sorting Equipment Rotary Disc Long Screws Optical Inspection MachineNegotiableMOQ: 1
-
RK-1500 Type AI Machine Intelligent Bolt Nut Screw Fasteners Visual Auto Inspection MachineNegotiableMOQ: 1

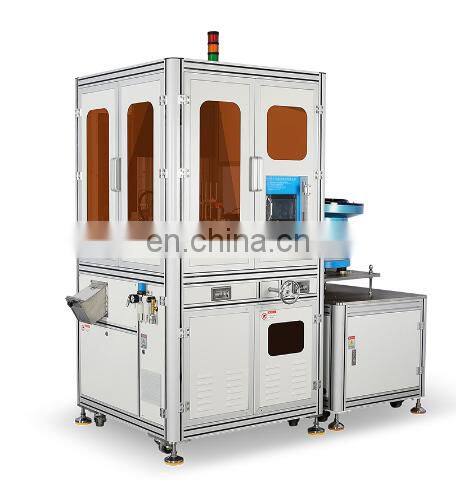

Auto Micro-Parts Optical Inspection Machine
Types: RK-1500 Glass plate Optical Sorting Machine

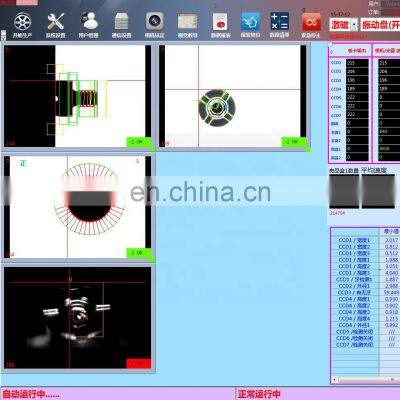

Suited for: Screws, nuts,micro screws, plastic and rubber parts, electronic component and so on.Inspection Screen
The inspection screen comes equipped with three industrial cameras.
Camera1 is a level head-up camera used to inspect the multi-segment height and outer diameter of the products.
Camera2 is a vertical bottom view camera used to inspect the cross slot or flat slot on the head of the product.
We can add additional 1 to 4 cameras for inspecting thread damage or other defects of the product with a complete 360 degree view.
Camera1 is a level head-up camera used to inspect the multi-segment height and outer diameter of the products.
Camera2 is a vertical bottom view camera used to inspect the cross slot or flat slot on the head of the product.
We can add additional 1 to 4 cameras for inspecting thread damage or other defects of the product with a complete 360 degree view.
Technical Parameter:
Note: Customized service can be provided according to the detect demand.
Machine Features:

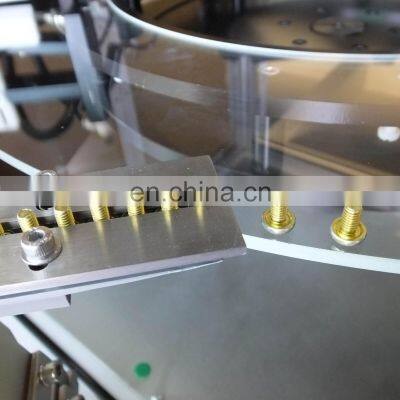

1.Highly-transparent glass plate.
2.Fit for grease-free parts which can be placed on the glass plate securely. 3.Wide detection range of fasteners,mobile phone parts,rubber products,electronic components ,special-shaped hardware,screw etc
4.Detection camera:can add 2-6 cameras according to the inspect items.
5.Detection speed:300~1000 PCS /Min Depend on individual case.

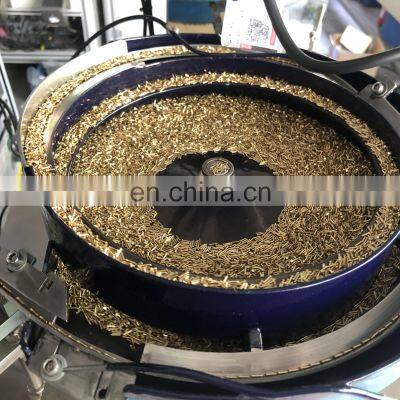

6.Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
Inspection Items:
Diameter,Hole diameter | Roundness |
Length | With coating |
Width | With mark |
Height,Thickness | With cut/tapering |
Surface defect | Parallel edge length |
Deformed,Broken | Broken pin,Recess depth |
Different shape | With thread |
Crack | Fine or coarse thread |
Burrs,Chips | Tooth numbers |
Across Corners | Pitch |
Across Flat | Slanted thread |
Chamfer angle | Minor diameter |
Included angle | Major diameter |
Arc radius | Hardness |
Concentricity | Recognition of different materials |
With or without heat treatment |
Delivery and Package:
Delivery: by sea, about 30-60 working days after order confirmation.
Packed in plywood cases (No Fumigation required) or packed according to custom packaging.
Packed in plywood cases (No Fumigation required) or packed according to custom packaging.
Service Advantage:
1, Warranty: 12 months FREE overseas serice.
2, Enjoy lifelong maintenance.
3, Professional service team, to provide 24 hours, 365 days of technical support services.
4.Offer remote online service ,if there is no solution within 2 hours,door to door service will be offered after both parties
negotiation.
5.Convenient service ,response for your machine breakdown in the shortest time and get rid of your worry.
2, Enjoy lifelong maintenance.
3, Professional service team, to provide 24 hours, 365 days of technical support services.
4.Offer remote online service ,if there is no solution within 2 hours,door to door service will be offered after both parties
negotiation.
5.Convenient service ,response for your machine breakdown in the shortest time and get rid of your worry.
Welcome to ask for details.
If you could provide related samples and test items, a project plan will be send to you after practical test by us. Then discuss the equipment specification and procurement plan. We promise that most suitable machine with costing the least money.
