RK-1500 Glass Plate Nut Optical Vision Selection Machine AOI Visual Sorting Equipment for Fastener Screw Washer

RK-1500 Glass Plate Nut Optical Vision Selection Machine AOI Visual Sorting Equipment for Fastener Screw Washer photo-1
RK-1500 Glass Plate Nut Optical Vision Selection Machine AOI Visual Sorting Equipment for Fastener Screw Washer photo-2
RK-1500 Glass Plate Nut Optical Vision Selection Machine AOI Visual Sorting Equipment for Fastener Screw Washer photo-3
RK-1500 Glass Plate Nut Optical Vision Selection Machine AOI Visual Sorting Equipment for Fastener Screw Washer photo-4
RK-1500 Glass Plate Nut Optical Vision Selection Machine AOI Visual Sorting Equipment for Fastener Screw Washer photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2005
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Fastener Dimension And Appearance Inspection On Glass die Sorting Machine

Types: RK-1500 Glass plate Optical Sorting Machine
Suited for: Screws, nuts,micro screws, plastic and rubber parts, electronic component and so on.

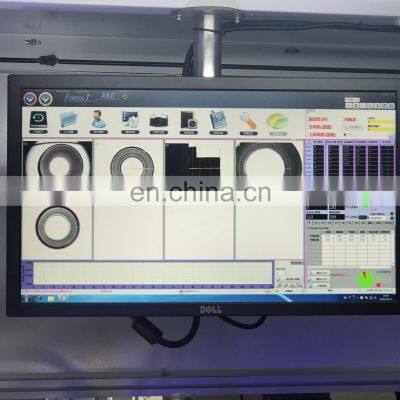

Inspection Screen

The inspection screen comes equipped with three industrial cameras.

Camera 1 is a Horizontal camera, inspect the multi-height and outer diameter.

Camera 2 is a Vertical bottom view camera,inspect the cross slot or flat slot on the head of the product.

Additional 1 to 4 cameras can be added for inspecting thread damage or other defects of the product with a complete 360 degree view.

Technical Parameter:
Note: Customized service can be provided according to the detect demand.

Machine Features:

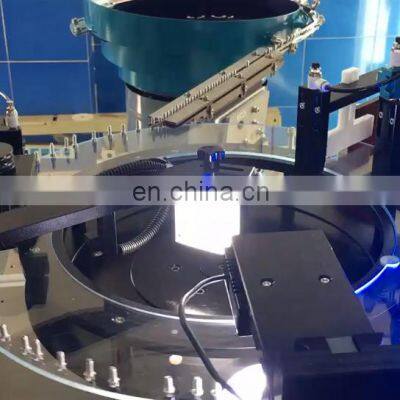

1.Highly-transparent glass plate.
2.Fit for grease-free parts which can be placed on the glass plate securely.
3.Wide detection range of fasteners,mobile phone parts,rubber products,electronic components ,special-shaped hardware,screw etc.
4.Detection camera:can add 2-6 cameras according to the inspect items.
5.Detection speed:300~1000 PCS /Min Depend on individual case.

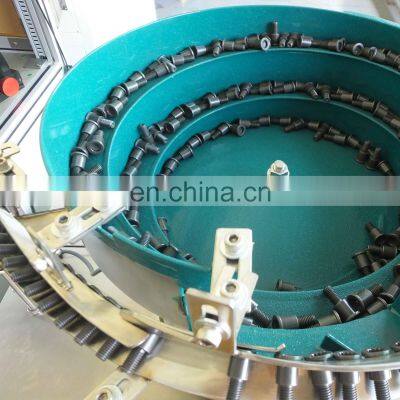

6.Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
Inspection Items:
Diameter,Hole diameter
Roundness
Length
With coating
Width
With mark
Height,Thickness
With cut/tapering
Surface defect
Parallel edge length
Deformed,Broken
Broken pin,Recess depth
Different shape
With thread
Crack
Fine or coarse thread
Burrs,Chips
Tooth numbers
Across Corners
Pitch
Across Flat
Slanted thread
Chamfer angle
Minor diameter
Included angle
Major diameter
Arc radius
Hardness
Concentricity
Recognition of different materials
With or without heat treatment

Delivery and Package:

Shipping 1.Upon receipt of payment , delivery date will be in 25-30 working days, 2.By Sea, by Air or by Express (DHL etc.)
Packed in plywood cases (No Fumigation required) or according to customer's requirement.

Service Advantage:

1, Warranty: 12 months FREE overseas service.
2, Enjoy lifelong maintenance.
3, Professional service team, to provide 24 hours, 365 days of technical support services.
4.Offer remote online service ,if there is no solution within 2 hours,door to door service will be offered after both parties
negotiation.
5.Convenient service ,response for your machine breakdown in the shortest time and get rid of your worry.

Welcome to ask for details.

If you could provide related samples and test items, a project plan will be send to you after practical test by us. Then discuss the equipment specification and procurement plan.

We promise that most suitable machine with costing the least money.
